Pulse Transformers

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)

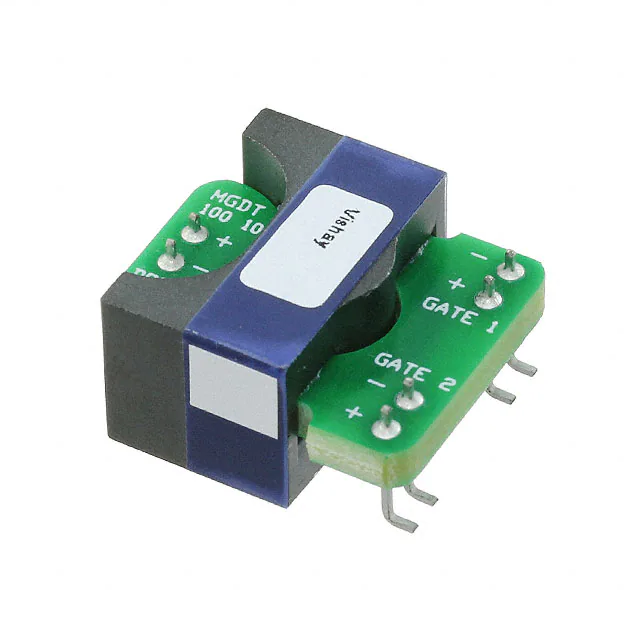

MGDT100100-SM PLANAR GATE-DRIVE XFMR, 1 : 1 : Vishay Dale	232	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Gate Drive	240µH	-	1:1:1	Surface Mount	0.810 L x 0.725 W (20.57mm x 18.42mm)	0.450 (11.43mm)

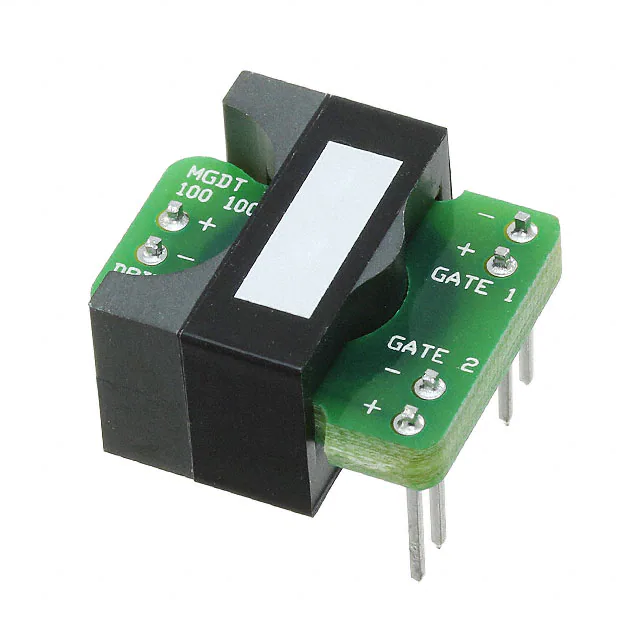

MGDT100100 PLANAR GATE-DRIVE XFMR, 1 : 1 : Vishay Dale	295	-	RFQ	Datasheet	Tray	-	Active	Gate Drive	240µH	-	1:1:1	Through Hole	0.810 L x 0.725 W (20.57mm x 18.42mm)	0.450 (11.43mm)
MGDT100125-SM PLANAR GATE-DRIVE XFMR, 1 : 1.25 Vishay Dale	118	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Gate Drive	240µH	-	1:1.25:1.25	Surface Mount	0.810 L x 0.725 W (20.57mm x 18.42mm)	0.450 (11.43mm)
MGDT100100LF PLANAR GATE-DRIVE XFMR, 1 : 1 : Vishay Dale	2,807	-	RFQ	Datasheet	Tray	-	Active	Gate Drive	240µH	-	1:1:1	Through Hole	0.810 L x 0.725 W (20.57mm x 18.42mm)	0.450 (11.43mm)
MGDT100125LF PLANAR GATE-DRIVE XFMR, 1 : 1.25 Vishay Dale	2,259	-	RFQ	Datasheet	Tray	-	Active	Gate Drive	240µH	-	1:1.25:1.25	Through Hole	0.810 L x 0.725 W (20.57mm x 18.42mm)	0.450 (11.43mm)
MGDT100125 PLANAR GATE-DRIVE XFMR, 1 : 1.25 Vishay Dale	2,239	-	RFQ	Datasheet	Tray	-	Active	Gate Drive	240µH	-	1:1.25:1.25	Through Hole	0.810 L x 0.725 W (20.57mm x 18.42mm)	0.450 (11.43mm)
MTBAUGDT125100 TRANSFORMER, MICRO GATE DRIVE, 1 Vishay Dale	2,559	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Gate Drive	330µH	63VµS	1:1:1	Surface Mount	-	0.220 (5.59mm)
MTBAUGDT250251 TRANSFORMER, GATE DRIVE 5MM, 250 Vishay Dale	3,259	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Gate Drive	473µH	30.6VµS	2.5:1	Surface Mount	-	0.220 (5.59mm)
MTBAUGDT250102-LF TRANSFORMER, GATE DRIVE 5MM, 250 Vishay Dale	2,102	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Gate Drive	264µH	22.4VµS	1:1:1	Surface Mount	-	0.220 (5.59mm)
MTBAUGDT250252-LF TRANSFORMER, GATE DRIVE 5MM, 250 Vishay Dale	3,086	-	RFQ	Datasheet	Tape & Reel (TR)	MTBAUGDT	Active	Gate Drive	300µH	23.8VµS	2.5:1:1	Surface Mount	-	0.220 (5.59mm)
MTBAUGDT250252 TRANSFORMER, GATE DRIVE 5MM, 250 Vishay Dale	3,580	-	RFQ	Datasheet	Tape & Reel (TR)	MTBAUGDT	Active	Gate Drive	300µH	23.8VµS	2.5:1:1	Surface Mount	-	0.220 (5.59mm)
MTBAUGDT250251-LF TRANSFORMER, GATE DRIVE 5MM, 250 Vishay Dale	3,502	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	MTBAUGDT	Active	Gate Drive	473µH	30.6VµS	2.5:1	Surface Mount	-	0.220 (5.59mm)
MTBAUGDT125050 TRANSFORMER, MICRO GATE DRIVE, 1 Vishay Dale	3,055	-	RFQ	Datasheet	Tape & Reel (TR)	MTBAUGDT	Active	Gate Drive	330µH	63VµS	1:0.5:0.5	Surface Mount	-	0.220 (5.59mm)
MTBAUGDT125075 TRANSFORMER, MICRO GATE DRIVE, 1 Vishay Dale	2,736	-	RFQ	Datasheet	Tape & Reel (TR)	MTBAUGDT	Active	Gate Drive	360µH	66VµS	1:0.75:0.75	Surface Mount	-	0.220 (5.59mm)
MTBAUGDT125050-LF TRANSFORMER, MICRO GATE DRIVE, 1 Vishay Dale	2,516	-	RFQ	Datasheet	Tape & Reel (TR)	MTBAUGDT	Active	Gate Drive	330µH	63VµS	1:0.5:0.5	Surface Mount	-	0.220 (5.59mm)
MTBAUGDT125075-LF TRANSFORMER, MICRO GATE DRIVE, 1 Vishay Dale	2,370	-	RFQ	Datasheet	Tape & Reel (TR)	MTBAUGDT	Active	Gate Drive	360µH	66VµS	1:0.75:0.75	Surface Mount	-	0.220 (5.59mm)
MTBAUGDT250101 TRANSFORMER, GATE DRIVE 5MM, 250 Vishay Dale	2,235	-	RFQ	Datasheet	Tape & Reel (TR)	MTBAUGDT	Active	Gate Drive	350µH	25.8VµS	1:1	Surface Mount	-	0.220 (5.59mm)
MTBAUGDT125100-LF TRANSFORMER, MICRO GATE DRIVE, 1 Vishay Dale	2,690	-	RFQ	Datasheet	Tape & Reel (TR)	MTBAUGDT	Active	Gate Drive	330µH	63VµS	1:1:1	Surface Mount	-	0.220 (5.59mm)
MTBAUGDT250101-LF TRANSFORMER, GATE DRIVE 5MM, 250 Vishay Dale	3,337	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	MTBAUGDT	Active	Gate Drive	350µH	25.8VµS	1:1	Surface Mount	-	0.220 (5.59mm)
MTBAUGDT250102 TRANSFORMER, GATE DRIVE 5MM, 250 Vishay Dale	3,798	-	RFQ	Datasheet	Tape & Reel (TR)	MTBAUGDT	Active	Gate Drive	264µH	22.4VµS	1:1:1	Surface Mount	-	0.220 (5.59mm)
