Pulse Transformers

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)
601A TRANSFORMER PULSE 2060UH 1.5DCR Hammond Manufacturing	3,105	-	RFQ	Datasheet	Bulk	601	Obsolete	Isolation and Data Interface (Encapsulated)	2.06mH	-	1:1	Through Hole	0.500 L x 0.350 W (12.70mm x 8.89mm)	0.250 (6.35mm)

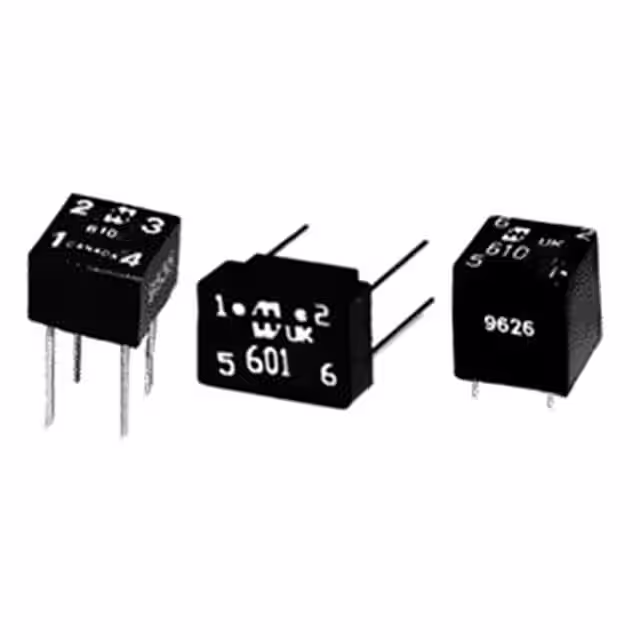

600PA TRANSFORMER PULSE 323UH .6DCR Hammond Manufacturing	2,660	-	RFQ	Datasheet	Bulk	600	Obsolete	Isolation and Data Interface (Encapsulated)	323µH	-	1:1	Through Hole	0.500 L x 0.350 W (12.70mm x 8.89mm)	0.250 (6.35mm)
601D TRANSFORMER PULSE 50UH .4DCR Hammond Manufacturing	3,986	-	RFQ	Datasheet	Bulk	601	Obsolete	Isolation and Data Interface (Encapsulated)	50µH	-	1:1	Through Hole	0.500 L x 0.350 W (12.70mm x 8.89mm)	0.250 (6.35mm)
601B TRANSFORMER PULSE 492UH .8DCR Hammond Manufacturing	3,948	-	RFQ	Datasheet	Bulk	601	Obsolete	Isolation and Data Interface (Encapsulated)	492µH	-	1:1	Through Hole	0.500 L x 0.350 W (12.70mm x 8.89mm)	0.250 (6.35mm)
602B TRANSFORMER PULSE 492UH .8DCR Hammond Manufacturing	3,783	-	RFQ	Datasheet	Bulk	602	Obsolete	Isolation and Data Interface (Encapsulated)	492µH	-	1:1:1	Through Hole	0.500 L x 0.350 W (12.70mm x 8.89mm)	0.250 (6.35mm)
631B TRANSFORMER PULSE 1MHZ .25DCR Hammond Manufacturing	3,572	-	RFQ	Datasheet	Bulk	631	Obsolete	SCR and Triac Trigger (Encapsulated)	1mH	-	1:1:1	Through Hole	0.984 L x 0.787 W (25.00mm x 20.00mm)	0.512 (13.00mm)
602C TRANSFORMER PULSE 219UH .5DCR Hammond Manufacturing	2,545	-	RFQ	Datasheet	Bulk	602	Obsolete	Isolation and Data Interface (Encapsulated)	219µH	-	1:1:1	Through Hole	0.500 L x 0.350 W (12.70mm x 8.89mm)	0.250 (6.35mm)
602A TRANSFORMER PULSE 2060UH 1.5DCR Hammond Manufacturing	2,012	-	RFQ	Datasheet	Bulk	602	Obsolete	Isolation and Data Interface (Encapsulated)	2.06mH	-	1:1:1	Through Hole	0.500 L x 0.350 W (12.70mm x 8.89mm)	0.250 (6.35mm)
602GA TRANSFORMER PULSE 2.7UH .2DCR Hammond Manufacturing	2,425	-	RFQ	Datasheet	Bulk	602	Obsolete	Isolation and Data Interface (Encapsulated)	2.7µH	-	2:1	Through Hole	0.500 L x 0.350 W (12.70mm x 8.89mm)	0.250 (6.35mm)
601F TRANSFORMER PULSE 9.5UH .4DCR Hammond Manufacturing	2,090	-	RFQ	Datasheet	Bulk	601	Obsolete	Isolation and Data Interface (Encapsulated)	9.5µH	-	1:1	Through Hole	0.500 L x 0.350 W (12.70mm x 8.89mm)	0.250 (6.35mm)
601E TRANSFORMER PULSE 23UH .3DCR Hammond Manufacturing	3,175	-	RFQ	Datasheet	Bulk	601	Obsolete	Isolation and Data Interface (Encapsulated)	23µH	-	1:1	Through Hole	0.500 L x 0.350 W (12.70mm x 8.89mm)	0.250 (6.35mm)
601C TRANSFORMER PULSE 219 UH .5DCR Hammond Manufacturing	3,605	-	RFQ	Datasheet	Bulk	601	Obsolete	Isolation and Data Interface (Encapsulated)	219µH	-	1:1	Through Hole	0.500 L x 0.350 W (12.70mm x 8.89mm)	0.250 (6.35mm)
611B TRANSFORMER PULSE 17.2MH 1.26DCR Hammond Manufacturing	2,500	-	RFQ	Datasheet	Bulk	611	Obsolete	SCR and Triac Trigger (Encapsulated)	17.2mH	-	1:1:1	Through Hole	-	0.690 (17.53mm)
610C TRANSFORMER PULSE 12MH 4DCR Hammond Manufacturing	3,683	-	RFQ	Datasheet	Bulk	610	Obsolete	Isolation and Data Interface (Encapsulated)	12mH	-	2:1:1	Through Hole	0.591 L x 0.591 W (15.00mm x 15.00mm)	0.622 (15.80mm)
610B TRANSFORMER PULSE 2.7MH 2.1DCR Hammond Manufacturing	2,916	-	RFQ	Datasheet	Bulk	610	Active	Isolation and Data Interface (Encapsulated)	2.7mH	-	1:1:1	Through Hole	0.449 L x 0.449 W (11.40mm x 11.40mm)	0.358 (9.10mm)
611C TRANSFORMER PULSE 56MH 3.31DCR Hammond Manufacturing	3,532	-	RFQ	Datasheet	Bulk	611	Obsolete	SCR and Triac Trigger (Encapsulated)	56mH	-	1:1	Through Hole	-	0.820 (20.83mm)
610BB TRANSFORMER PULSE 3MH 1.4DCR Hammond Manufacturing	2,913	-	RFQ	Datasheet	Bulk	610	Obsolete	Isolation and Data Interface (Encapsulated)	3mH	-	1:1:1	Through Hole	0.591 L x 0.591 W (15.00mm x 15.00mm)	0.622 (15.80mm)

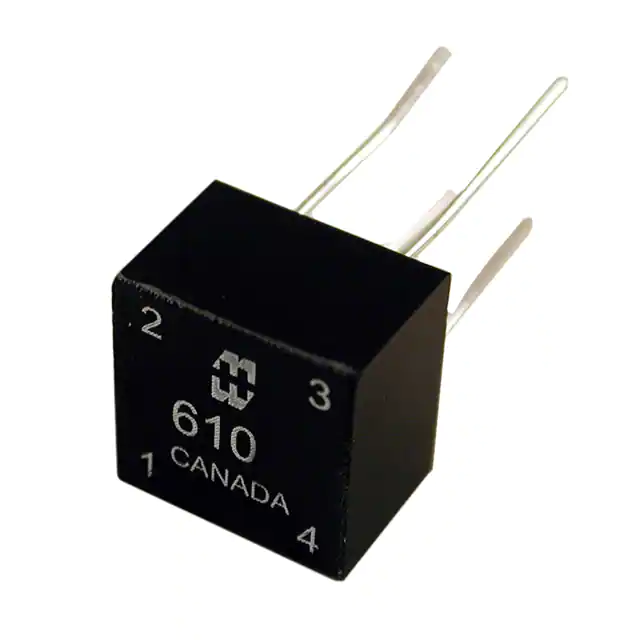

610A TRANSFORMER PULSE 3.9MH 3.4DCR Hammond Manufacturing	3,966	-	RFQ	Datasheet	Bulk	610	Active	Isolation and Data Interface (Encapsulated)	3.9mH	-	1:1	Through Hole	0.449 L x 0.449 W (11.40mm x 11.40mm)	0.358 (9.10mm)
611A TRANSFORMER PULSE 8.6MH .45DCR Hammond Manufacturing	3,092	-	RFQ	Datasheet	Bulk	611	Obsolete	SCR and Triac Trigger (Encapsulated)	8.6mH	-	1:1	Through Hole	-	0.690 (17.53mm)
610D TRANSFORMER PULSE 3MH 1.3DCR Hammond Manufacturing	3,563	-	RFQ	Datasheet	Bulk	610	Obsolete	Isolation and Data Interface (Encapsulated)	3mH	-	1:1	Through Hole	0.591 L x 0.591 W (15.00mm x 15.00mm)	0.622 (15.80mm)
