Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UFG1H010MDMCAP ALUM 1UF 20% 50V RADIAL Nichicon |
2,111 | - |
RFQ |
Datasheet |
Bulk | UFG | Not For New Designs | 1 µF | ±20% | 50 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 9 mA @ 120 Hz | 18 mA @ 10 kHz | - | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.492 (12.50mm) | - | Through Hole |
|
UPM1V330MEDCAP ALUM 33UF 20% 35V RADIAL Nichicon |
3,068 | - |
RFQ |
Datasheet |
Bulk | UPM | Not For New Designs | 33 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 125 mA @ 120 Hz | 225 mA @ 10 kHz | 490 mOhms | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.492 (12.50mm) | - | Through Hole |
|
UPS1C470MDDCAP ALUM 47UF 20% 16V RADIAL Nichicon |
3,008 | - |
RFQ |
Datasheet |
Bulk | UPS | Not For New Designs | 47 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 27.2 mA @ 120 Hz | 160 mA @ 100 kHz | 1.5 Ohms | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.492 (12.50mm) | - | Through Hole |
|
EKYB101ELL6R8ME11DCAP ALUM 6.8UF 20% 100V RADIAL United Chemi-Con |
3,835 | - |
RFQ |
Datasheet |
Bulk | KYB | Active | 6.8 µF | ±20% | 100 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 65.2 mA @ 120 Hz | 163 mA @ 100 kHz | 800 mOhms | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.492 (12.50mm) | - | Through Hole |
|
UHE1H100MDDCAP ALUM 10UF 20% 50V RADIAL Nichicon |
2,150 | - |
RFQ |
Datasheet |
Bulk | UHE | Not For New Designs | 10 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 55 mA @ 120 Hz | 100 mA @ 100 kHz | 1.5 Ohms | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.492 (12.50mm) | - | Through Hole |
|
EEU-FR1H4R7CAP ALUM 4.7UF 20% 50V RADIAL TH Panasonic Electronic Components |
3,246 | - |
RFQ |
Datasheet |
Bulk | FR-A | Active | 4.7 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 101.75 mA @ 120 Hz | 185 mA @ 100 kHz | 620 mOhms | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.492 (12.50mm) | - | Through Hole |
|
MAL216099001E3CAP ALUM 220UF 20% 35V SMD Vishay Beyschlag/Draloric/BC Components |
1,517 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | 160 CLA | Active | 220 µF | ±20% | 35 V | - | 1250 Hrs @ 150°C | -55°C ~ 150°C | Polar | AEC-Q200 | Automotive | - | 550 mA @ 100 kHz | 80 mOhms | - | 0.492 Dia (12.50mm) | 0.551 (14.00mm) | 0.508 L x 0.508 W (12.90mm x 12.90mm) | Surface Mount |
|

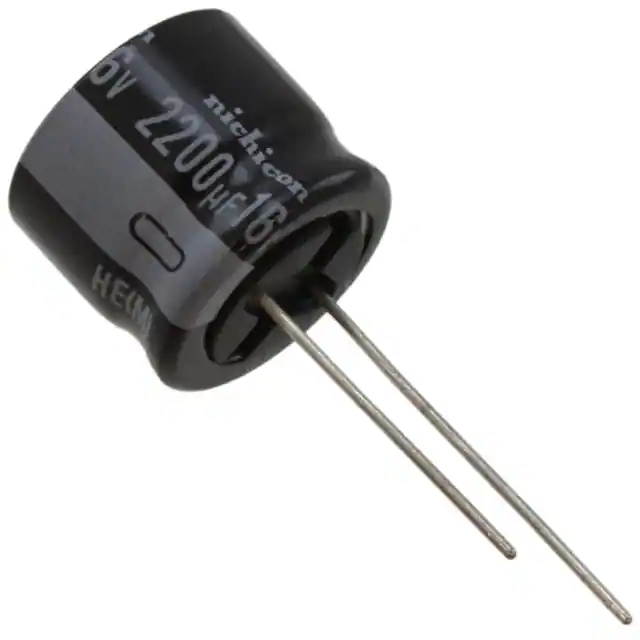

UHE1C222MHD6CAP ALUM 2200UF 20% 16V RADIAL Nichicon |
9,549 | - |
RFQ |
Datasheet |
Bulk | UHE | Not For New Designs | 2200 µF | ±20% | 16 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.288 A @ 120 Hz | 2.21 A @ 100 kHz | 43 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 0.591 (15.00mm) | - | Through Hole |
|
35YXF2200MEFC16X31.5CAP ALUM 2200UF 20% 35V RADIAL Rubycon |
2,767 | - |
RFQ |
Datasheet |
Bulk | YXF | Active | 2200 µF | ±20% | 35 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.6 A @ 120 Hz | 2 A @ 100 kHz | 29 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.319 (33.50mm) | - | Through Hole |
|
ECA-1HHG471BCAP ALUM 470UF 20% 50V RADIAL Panasonic Electronic Components |
3,779 | - |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | NHG-A | Active | 470 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 530 mA @ 120 Hz | 795 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
UCD1A102MNL1GSCAP ALUM 1000UF 20% 10V SMD Nichicon |
3,159 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UCD | Not For New Designs | 1000 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 425 mA @ 120 Hz | 850 mA @ 100 kHz | 80 mOhms | - | 0.394 Dia (10.00mm) | 0.413 (10.50mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
ELXY160ELL222MK30SCAP ALUM 2200UF 20% 16V RADIAL United Chemi-Con |
2,457 | - |
RFQ |
Datasheet |
Bulk | LXY | Active | 2200 µF | ±20% | 16 V | - | 7000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.4625 A @ 120 Hz | 1.95 A @ 100 kHz | 30 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.240 (31.50mm) | - | Through Hole |
|
EEE-FN1J680PCAP ALUM 68UF 20% 63V SMD Panasonic Electronic Components |
2,809 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FN | Active | 68 µF | ±20% | 63 V | 650mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 162.5 mA @ 120 Hz | 250 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.413 (10.50mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
UCY2H220MHD6TNCAP ALUM 22UF 20% 500V RADIAL Nichicon |
2,672 | - |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UCY | Active | 22 µF | ±20% | 500 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 280 mA @ 120 Hz | 560 mA @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.043 (26.50mm) | - | Through Hole |
|
UUA1H330MNL1GSCAP ALUM 33UF 20% 50V SMD Nichicon |
2,935 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UUA | Active | 33 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 140 mA @ 120 Hz | 210 mA @ 10 kHz | - | - | 0.315 Dia (8.00mm) | 0.394 (10.00mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
EEV107M063A9PAACAP ALUM 100UF 20% 63V SMD KEMET |
2,660 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | EEV | Active | 100 µF | ±20% | 63 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 280 mOhms @ 120 Hz | 400 mOhms @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.413 (10.50mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
|
ELXY350ELL102MK30SCAP ALUM 1000UF 20% 35V RADIAL United Chemi-Con |
2,493 | - |
RFQ |
Datasheet |
Bulk | LXY | Active | 1000 µF | ±20% | 35 V | - | 7000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.17 A @ 120 Hz | 1.95 A @ 100 kHz | 30 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.240 (31.50mm) | - | Through Hole |
|
80ZLJ270M12.5X25CAP ALUM 270UF 20% 80V RADIAL Rubycon |
2,486 | - |
RFQ |
Datasheet |
Bulk | ZLJ | Active | 270 µF | ±20% | 80 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.105 A @ 120 Hz | 2.21 A @ 100 kHz | 47 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.063 (27.00mm) | - | Through Hole |
|
EDT107M050A9PAACAP ALUM 100UF 20% 50V SMD KEMET |
2,952 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | EDT | Active | 100 µF | ±20% | 50 V | - | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 150 mA @ 120 Hz | 180 mA @ 10 kHz | - | - | 0.394 Dia (10.00mm) | 0.413 (10.50mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
UCS2E220MPD1TDCAP ALUM 22UF 20% 250V RADIAL Nichicon |
3,206 | - |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UCS | Active | 22 µF | ±20% | 250 V | - | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 250 mA @ 120 Hz | 500 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.846 (21.50mm) | - | Through Hole |
