Chip Resistor - Surface Mount

Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Resistance	Tolerance	Power(Watts)	Composition	Features	TemperatureCoefficient	OperatingTemperature	Ratings	Size/Dimension	Height-Seated(Max)

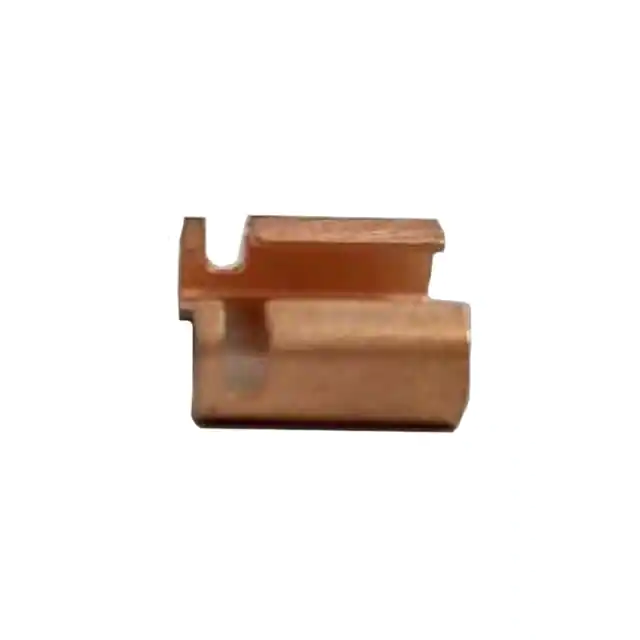

HCSK1216FTL500 RES 0.0005 OHM 1% 5W 1216 SMD Stackpole Electronics Inc	3,006	-	RFQ	Datasheet	Nonstandard	Tape & Reel (TR),Cut Tape (CT)	HCSK	Active	500 µOhms	±1%	5W	Metal Element	Current Sense, Moisture Resistant	±50ppm/°C	-55°C ~ 170°C	-	0.150 L x 0.118 W (3.81mm x 3.00mm)	0.091 (2.30mm)
HCSK1216FT1L00 RES 0.001 OHM 1% 3W 1216 SMD Stackpole Electronics Inc	2,988	-	RFQ	Datasheet	Nonstandard	Tape & Reel (TR),Cut Tape (CT)	HCSK	Active	1 mOhms	±1%	3W	Metal Element	Current Sense, Moisture Resistant	±50ppm/°C	-55°C ~ 170°C	-	0.150 L x 0.118 W (3.81mm x 3.00mm)	0.091 (2.30mm)
CSRF0402FT10L0 RES 0.01 OHM 1% 1/8W 0402 Stackpole Electronics Inc	25,060	-	RFQ	Datasheet	0402 (1005 Metric)	Tape & Reel (TR),Cut Tape (CT)	CSRF	Active	10 mOhms	±1%	0.125W, 1/8W	Metal Foil	Automotive AEC-Q200, Current Sense, Moisture Resistant	±200ppm/°C	-55°C ~ 170°C	AEC-Q200	0.039 L x 0.022 W (1.00mm x 0.55mm)	0.022 (0.55mm)
RMCF1210JTR180 RES 0.18 OHM 5% 1/2W 1210 Stackpole Electronics Inc	7,554	-	RFQ	Datasheet	1210 (3225 Metric)	Tape & Reel (TR),Cut Tape (CT)	RMCF	Active	180 mOhms	±5%	0.5W, 1/2W	Thick Film	Automotive AEC-Q200	±200ppm/°C	-55°C ~ 155°C	AEC-Q200	0.126 L x 0.098 W (3.20mm x 2.50mm)	0.028 (0.70mm)
RMCF2512FTR750 RES 0.75 OHM 1% 1W 2512 Stackpole Electronics Inc	3,995	-	RFQ	Datasheet	2512 (6432 Metric)	Tape & Reel (TR),Cut Tape (CT)	RMCF	Active	750 mOhms	±1%	1W	Thick Film	Automotive AEC-Q200	±200ppm/°C	-55°C ~ 155°C	AEC-Q200	0.248 L x 0.126 W (6.30mm x 3.20mm)	0.028 (0.70mm)
RHC2512FT15R0 RES 15 OHM 1% 2W 2512 Stackpole Electronics Inc	1,911	-	RFQ	Datasheet	2512 (6432 Metric)	Tape & Reel (TR),Cut Tape (CT)	RHC	Active	15 Ohms	±1%	2W	Thick Film	Moisture Resistant	±100ppm/°C	-55°C ~ 155°C	-	0.248 L x 0.126 W (6.30mm x 3.20mm)	0.028 (0.70mm)
RHC2512FT100K RES 100K OHM 1% 2W 2512 Stackpole Electronics Inc	1,260	-	RFQ	Datasheet	2512 (6432 Metric)	Tape & Reel (TR),Cut Tape (CT)	RHC	Active	100 kOhms	±1%	2W	Thick Film	Moisture Resistant	±100ppm/°C	-55°C ~ 155°C	-	0.248 L x 0.126 W (6.30mm x 3.20mm)	0.028 (0.70mm)
SM4124FT1R00 RES 1 OHM 1% 2W 4124 Stackpole Electronics Inc	1,434	-	RFQ	Datasheet	4124 J-Lead	Tape & Reel (TR),Cut Tape (CT)	SM	Active	1 Ohms	±1%	2W	Wirewound	Moisture Resistant, Pulse Withstanding	±100ppm/°C	-55°C ~ 275°C	-	0.410 L x 0.240 W (10.41mm x 6.10mm)	0.195 (4.95mm)
CSS2728FT30L0 RES 0.03 OHM 1% 3W 2827 Stackpole Electronics Inc	1,392	-	RFQ	Datasheet	Wide 2827 (7067 Metric), 2728	Tape & Reel (TR),Cut Tape (CT)	CSS	Active	30 mOhms	±1%	3W	Metal Element	Automotive AEC-Q200, Current Sense	±15ppm/°C	-55°C ~ 225°C	AEC-Q200	0.264 L x 0.283 W (6.71mm x 7.19mm)	0.049 (1.24mm)
RNCF1206AKT10R0 RES 10 OHM 0.05% 1/4W 1206 Stackpole Electronics Inc	1,630	-	RFQ	Datasheet	1206 (3216 Metric)	Tape & Reel (TR),Cut Tape (CT)	RNCF	Active	10 Ohms	±0.05%	0.25W, 1/4W	Thin Film	Automotive AEC-Q200	±10ppm/°C	-55°C ~ 155°C	AEC-Q200	0.120 L x 0.061 W (3.05mm x 1.55mm)	0.026 (0.65mm)
CSSK0612FT1L00 RES 0.001 OHM 1% 1W 0612 Stackpole Electronics Inc	4,000	-	RFQ	Datasheet	0612 (1632 Metric)	Tape & Reel (TR),Cut Tape (CT)	CSSK	Active	1 mOhms	±1%	1W	Metal Element	Current Sense	±200ppm/°C	-55°C ~ 170°C	-	0.065 L x 0.120 W (1.65mm x 3.05mm)	0.033 (0.85mm)
CSSK0612FTL750 RES 750 OHM 1% 1W 0612 Stackpole Electronics Inc	2,995	-	RFQ	Datasheet	0612 (1632 Metric)	Tape & Reel (TR),Cut Tape (CT)	CSSK	Active	750 µOhms	±1%	1W	Metal Element	Current Sense	±200ppm/°C	-55°C ~ 170°C	-	0.065 L x 0.120 W (1.65mm x 3.05mm)	0.033 (0.85mm)
RHC2512FTR100 RES 0.1 OHM 1% 2W 2512 Stackpole Electronics Inc	1,443	-	RFQ	Datasheet	2512 (6432 Metric)	Tape & Reel (TR),Cut Tape (CT)	RHC	Active	100 mOhms	±1%	2W	Thick Film	Moisture Resistant	±100ppm/°C	-55°C ~ 155°C	-	0.248 L x 0.126 W (6.30mm x 3.20mm)	0.028 (0.70mm)
HCSM2818FT20L0 RES 0.02 OHM 5W 1% 2818 SMD Stackpole Electronics Inc	2,424	-	RFQ	Datasheet	Nonstandard	Tape & Reel (TR),Cut Tape (CT)	HCSM	Active	20 mOhms	±1%	5W	Metal Element	Current Sense	±75ppm/°C	-55°C ~ 170°C	-	0.280 L x 0.195 W (7.10mm x 4.95mm)	0.075 (1.90mm)
HCS2512FT1L00 RES 0.001 OHM 1% 3W 2512 Stackpole Electronics Inc	11,448	-	RFQ	Datasheet	2512 (6432 Metric)	Tape & Reel (TR),Cut Tape (CT)	HCS	Active	1 mOhms	±1%	3W	Metal Element	Automotive AEC-Q200, Current Sense, Moisture Resistant	±100ppm/°C	-55°C ~ 170°C	AEC-Q200	0.256 L x 0.128 W (6.50mm x 3.25mm)	0.021 (0.53mm)
CSS2725FTL750 RES 750 UOHM 1% 4W 2725 Stackpole Electronics Inc	1,678	-	RFQ	Datasheet	Nonstandard	Tape & Reel (TR),Cut Tape (CT)	CSS	Active	750 µOhms	±1%	4W	Metal Element	Automotive AEC-Q200, Current Sense	±50ppm/°C	-55°C ~ 225°C	AEC-Q200	0.268 L x 0.254 W (6.81mm x 6.45mm)	0.049 (1.24mm)
SM4124FT20L0 RES 0.02 OHM 1% 2W 4124 Stackpole Electronics Inc	1,518	-	RFQ	Datasheet	4124 J-Lead	Tape & Reel (TR),Cut Tape (CT)	SM	Active	20 mOhms	±1%	2W	Wirewound	Moisture Resistant, Pulse Withstanding	-	-55°C ~ 275°C	-	0.410 L x 0.240 W (10.41mm x 6.10mm)	0.195 (4.95mm)
HCSK4026FT1L00 RES 0.001 OHM 1% 4W 4026 SMD Stackpole Electronics Inc	1,116	-	RFQ	Datasheet	Nonstandard	Tape & Reel (TR),Cut Tape (CT)	HCSK	Active	1 mOhms	±1%	4W	Metal Element	Current Sense, Moisture Resistant	±50ppm/°C	-55°C ~ 170°C	-	0.398 L x 0.260 W (10.10mm x 6.60mm)	0.112 (2.84mm)
RNCF0805TKT470R RES 470 OHM 0.01% 1/8W 0805 Stackpole Electronics Inc	1,782	-	RFQ	Datasheet	0805 (2012 Metric)	Tape & Reel (TR),Cut Tape (CT)	RNCF	Active	470 Ohms	±0.01%	0.125W, 1/8W	Thin Film	Automotive AEC-Q200	±10ppm/°C	-55°C ~ 155°C	AEC-Q200	0.079 L x 0.049 W (2.00mm x 1.25mm)	0.026 (0.65mm)
HCSK2725FT5L00 RES 0.005 OHM 2W 1% 2725 SMD Stackpole Electronics Inc	1,223	-	RFQ	Datasheet	Nonstandard	Tape & Reel (TR),Cut Tape (CT)	HCSK	Active	5 mOhms	±1%	2W	Metal Element	Current Sense, Moisture Resistant	±50ppm/°C	-55°C ~ 170°C	-	0.272 L x 0.260 W (6.90mm x 6.60mm)	0.120 (3.05mm)
