Chip Resistor - Surface Mount

Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Resistance	Tolerance	Power(Watts)	Composition	Features	TemperatureCoefficient	OperatingTemperature	Ratings	Size/Dimension	Height-Seated(Max)
WSC2515200R0FEA RES 200 OHM 1% 1W 2515 Vishay Dale	2,646	-	RFQ	Datasheet	2515 J-Lead	Tape & Reel (TR),Cut Tape (CT)	WSC	Active	200 Ohms	±1%	1W	Wirewound	Automotive AEC-Q200, Pulse Withstanding	±20ppm/°C	-65°C ~ 275°C	AEC-Q200	0.250 L x 0.150 W (6.35mm x 3.81mm)	0.125 (3.17mm)
WSC251533R00FEA RES 33 OHM 1% 1W 2515 Vishay Dale	2,487	-	RFQ	Datasheet	2515 J-Lead	Tape & Reel (TR),Cut Tape (CT)	WSC	Active	33 Ohms	±1%	1W	Wirewound	Automotive AEC-Q200, Pulse Withstanding	±20ppm/°C	-65°C ~ 275°C	AEC-Q200	0.250 L x 0.150 W (6.35mm x 3.81mm)	0.125 (3.17mm)
WSR2R0100FEB RES 0.01 OHM 1% 2W 4527 Vishay Dale	2,611	-	RFQ	Datasheet	4527 J-Lead	Tape & Reel (TR),Cut Tape (CT)	WSR	Active	10 mOhms	±1%	2W	Metal Element	Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding	±75ppm/°C	-65°C ~ 275°C	AEC-Q200	0.455 L x 0.275 W (11.56mm x 6.98mm)	0.100 (2.54mm)
WSR2R0300FEB RES 0.03 OHM 1% 2W 4527 Vishay Dale	3,115	-	RFQ	Datasheet	4527 J-Lead	Tape & Reel (TR),Cut Tape (CT)	WSR	Active	30 mOhms	±1%	2W	Metal Element	Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding	±75ppm/°C	-65°C ~ 275°C	AEC-Q200	0.455 L x 0.275 W (11.56mm x 6.98mm)	0.100 (2.54mm)
WSR2R0125FEA RES 0.0125 OHM 1% 2W 4527 Vishay Dale	3,744	-	RFQ	Datasheet	4527 J-Lead	Tape & Reel (TR),Cut Tape (CT)	WSR	Active	12.5 mOhms	±1%	2W	Metal Element	Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding	±75ppm/°C	-65°C ~ 275°C	AEC-Q200	0.455 L x 0.275 W (11.56mm x 6.98mm)	0.100 (2.54mm)
WSR2R0320FEA RES 0.032 OHM 1% 2W 4527 Vishay Dale	3,375	-	RFQ	Datasheet	4527 J-Lead	Tape & Reel (TR),Cut Tape (CT)	WSR	Active	32 mOhms	±1%	2W	Metal Element	Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding	±75ppm/°C	-65°C ~ 275°C	AEC-Q200	0.455 L x 0.275 W (11.56mm x 6.98mm)	0.100 (2.54mm)
WSC00021R500FEA RES 1.5 OHM 1% 2W 4527 Vishay Dale	3,643	-	RFQ	Datasheet	4527 J-Lead	Tape & Reel (TR),Cut Tape (CT)	WSC	Active	1.5 Ohms	±1%	2W	Wirewound	Automotive AEC-Q200, Pulse Withstanding	±50ppm/°C	-65°C ~ 275°C	AEC-Q200	0.455 L x 0.275 W (11.56mm x 6.98mm)	0.177 (4.49mm)
WSC00023R300FEA RES 3.3 OHM 1% 2W 4527 Vishay Dale	2,090	-	RFQ	Datasheet	4527 J-Lead	Tape & Reel (TR),Cut Tape (CT)	WSC	Active	3.3 Ohms	±1%	2W	Wirewound	Automotive AEC-Q200, Pulse Withstanding	±50ppm/°C	-65°C ~ 275°C	AEC-Q200	0.455 L x 0.275 W (11.56mm x 6.98mm)	0.177 (4.49mm)

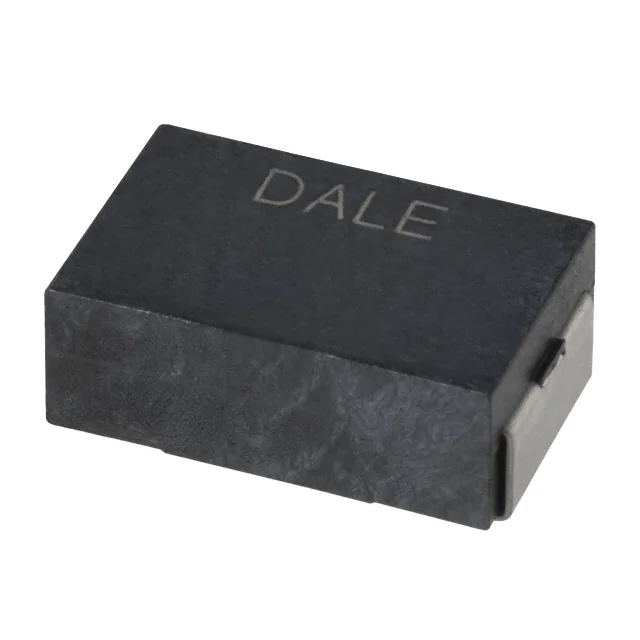

WSC452710R00JEA RES 10 OHM 5% 2W 4527 Vishay Dale	3,522	-	RFQ	Datasheet	4527 J-Lead	Tape & Reel (TR),Cut Tape (CT)	WSC	Active	10 Ohms	±5%	2W	Wirewound	Automotive AEC-Q200, Pulse Withstanding	±20ppm/°C	-65°C ~ 275°C	AEC-Q200	0.455 L x 0.275 W (11.56mm x 6.98mm)	0.177 (4.49mm)
WSR3R0120FEA RES 0.012 OHM 1% 3W 4527 Vishay Dale	3,341	-	RFQ	Datasheet	4527 J-Lead	Tape & Reel (TR),Cut Tape (CT)	WSR	Active	12 mOhms	±1%	3W	Metal Element	Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding	±75ppm/°C	-65°C ~ 275°C	AEC-Q200	0.455 L x 0.275 W (11.56mm x 6.98mm)	0.100 (2.54mm)
WSL0805R2000DEA18 RES 0.2 OHM 0.5% 1/4W 0805 Vishay Dale	2,711	-	RFQ	Datasheet	0805 (2012 Metric)	Tape & Reel (TR),Cut Tape (CT)	WSL-HP	Active	200 mOhms	±0.5%	0.25W, 1/4W	Metal Element	Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding	±75ppm/°C	-65°C ~ 170°C	AEC-Q200	0.080 L x 0.050 W (2.03mm x 1.27mm)	0.023 (0.58mm)
WSLP0603R0750DEA RES 0.075 OHM 0.5% 2/5W 0603 Vishay Dale	3,969	-	RFQ	Datasheet	0603 (1608 Metric)	Tape & Reel (TR),Cut Tape (CT)	WSLP	Active	75 mOhms	±0.5%	0.4W, 2/5W	Metal Element	Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding	±75ppm/°C	-65°C ~ 170°C	AEC-Q200	0.060 L x 0.030 W (1.52mm x 0.76mm)	0.023 (0.58mm)
WSL2512R5000DEA RES 0.5 OHM 0.5% 1W 2512 Vishay Dale	3,714	-	RFQ		2512 (6432 Metric)	Tape & Reel (TR),Cut Tape (CT)	WSL	Active	500 mOhms	±0.5%	1W	Metal Element	Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding	±75ppm/°C	-65°C ~ 170°C	AEC-Q200	0.250 L x 0.125 W (6.35mm x 3.18mm)	0.035 (0.89mm)
WSL2512R2000DEA RES 0.2 OHM 0.5% 1W 2512 Vishay Dale	3,866	-	RFQ		2512 (6432 Metric)	Tape & Reel (TR),Cut Tape (CT)	WSL	Active	200 mOhms	±0.5%	1W	Metal Element	Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding	±75ppm/°C	-65°C ~ 170°C	AEC-Q200	0.250 L x 0.125 W (6.35mm x 3.18mm)	0.035 (0.89mm)
D55342K07B3E01RS3 RES SMD 3.01K OHM 1% 1/4W 1206 Vishay Dale	2,186	-	RFQ	Datasheet	1206 (3216 Metric)	Tape & Reel (TR),Cut Tape (CT)	Military, MIL-PRF-55342, RM1206	Active	3.01 kOhms	±1%	0.25W, 1/4W	Thick Film	Military	±100ppm/°C	-55°C ~ 150°C	-	0.125 L x 0.063 W (3.18mm x 1.60mm)	0.033 (0.84mm)
D55342K07B5E11RS3 RES SMD 5.11K OHM 1% 1/4W 1206 Vishay Dale	3,334	-	RFQ	Datasheet	1206 (3216 Metric)	Tape & Reel (TR),Cut Tape (CT)	Military, MIL-PRF-55342, RM1206	Active	5.11 kOhms	±1%	0.25W, 1/4W	Thick Film	Military	±100ppm/°C	-55°C ~ 150°C	-	0.125 L x 0.063 W (3.18mm x 1.60mm)	0.033 (0.84mm)
WSHM2818R0100FEB RES 0.01 OHM 1% 7W 2818 Vishay Dale	3,773	-	RFQ		Nonstandard	Tape & Reel (TR),Cut Tape (CT)	WSHM2818	Active	10 mOhms	±1%	7W	Metal Element	Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding	±75ppm/°C	-65°C ~ 170°C	AEC-Q200	0.280 L x 0.181 W (7.10mm x 4.60mm)	0.069 (1.75mm)
WSR31L500FEA RES 0.0015 OHM 1% 3W 4527 Vishay Dale	3,065	-	RFQ	Datasheet	4527 J-Lead	Tape & Reel (TR),Cut Tape (CT)	WSR	Active	1.5 mOhms	±1%	3W	Metal Element	Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding	±750ppm/°C	-65°C ~ 275°C	AEC-Q200	0.455 L x 0.275 W (11.56mm x 6.98mm)	0.100 (2.54mm)
WSL25127L500FEB RES 0.0075 OHM 1% 1W 2512 Vishay Dale	3,930	-	RFQ		2512 (6432 Metric)	Tape & Reel (TR),Cut Tape (CT)	WSL	Active	7.5 mOhms	±1%	1W	Metal Element	Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding	±75ppm/°C	-65°C ~ 170°C	AEC-Q200	0.250 L x 0.125 W (6.35mm x 3.18mm)	0.035 (0.89mm)
WSLP25122L500FEA RES 0.0025 OHM 1% 3W 2512 Vishay Dale	2,457	-	RFQ	Datasheet	2512 (6432 Metric)	Tape & Reel (TR),Cut Tape (CT)	WSLP	Active	2.5 mOhms	±1%	3W	Metal Element	Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding	±275ppm/°C	-65°C ~ 170°C	AEC-Q200	0.250 L x 0.125 W (6.35mm x 3.18mm)	0.035 (0.89mm)
