Common Mode Chokes

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	FilterType	NumberofLines	Impedance@Frequency	Inductance@Frequency	CurrentRating(Max)	DCResistance(DCR)(Max)	VoltageRating-DC	VoltageRating-AC	OperatingTemperature	Ratings	ApprovalAgency	Features	MountingType	Size/Dimension	Height(Max)

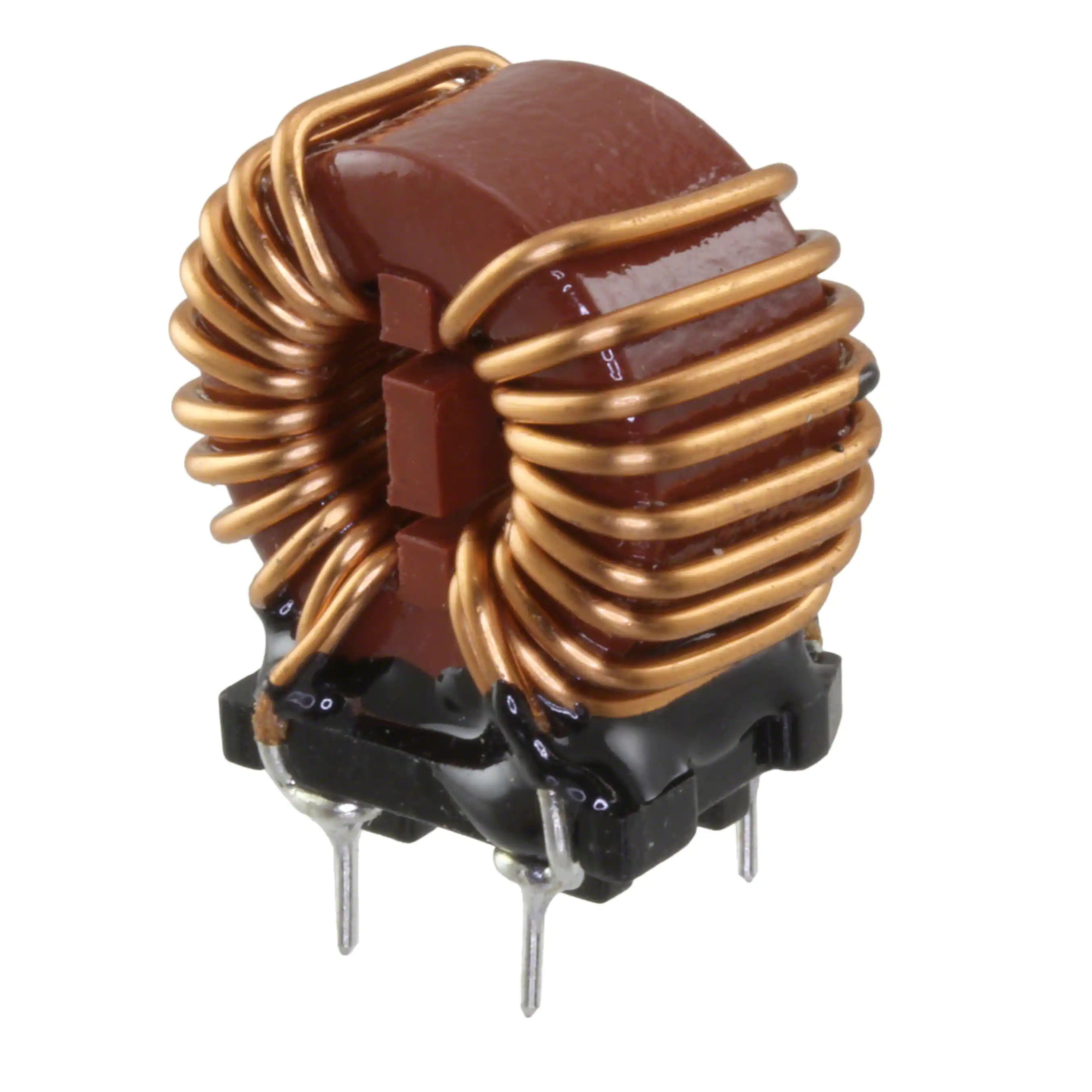

744821150 CMC 5MH 1A 2LN TH Würth Elektronik	3,023	-	RFQ		Bulk	WE-CMB	Active	Power Line	2	-	5 mH @ 10 kHz	1A	-	-	250V	-40°C ~ 125°C	-	-	-	Through Hole	-	0.709 (18.00mm)

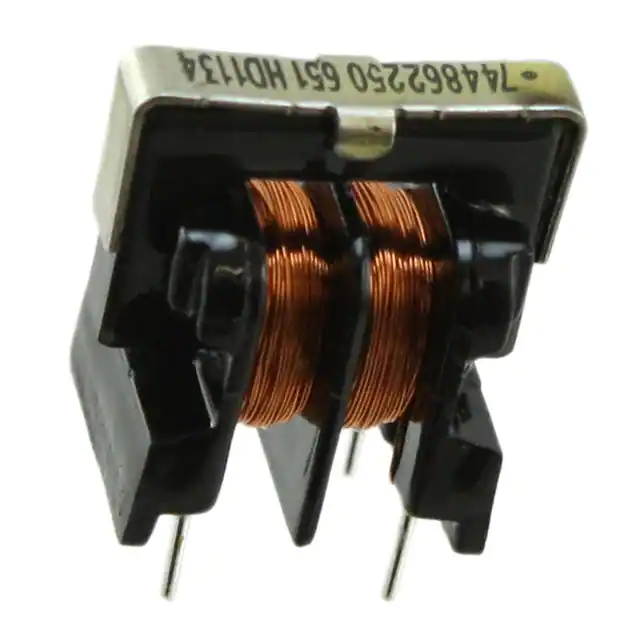

744862250 CMC 25MH 250MA 2LN TH Würth Elektronik	2,733	-	RFQ	Datasheet	Tray	WE-TFC	Active	Power Line	2	-	25 mH @ 10 kHz	250mA	3.6Ohm	-	400V	-40°C ~ 125°C	-	-	-	Through Hole	0.669 L x 0.433 W (17.00mm x 11.00mm)	0.669 (17.00mm)
P0420NL CMC 3.3A 2LN SMD Pulse Electronics Power	2,599	-	RFQ	Datasheet	Tube	-	Active	Power Line	2	-	-	3.3A	60mOhm	-	-	-40°C ~ 120°C	-	-	-	Surface Mount	0.770 L x 0.670 W (19.56mm x 17.02mm)	0.390 (9.91mm)

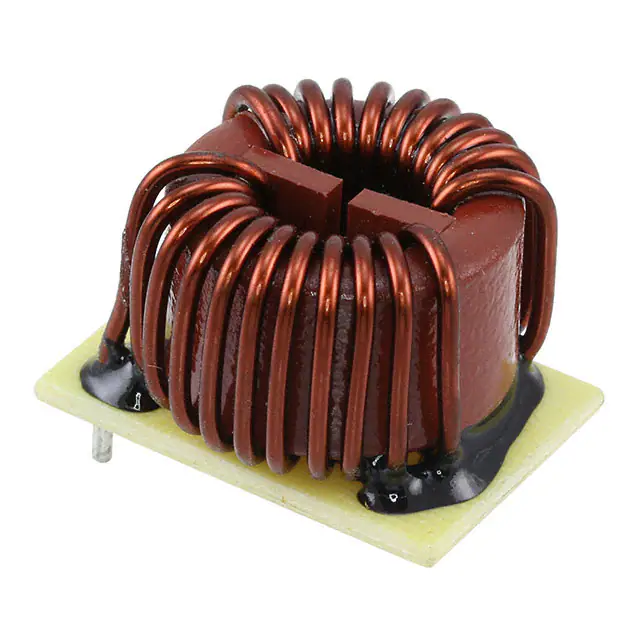

S14100037 CMC 1MH 15A 2LN TH Würth Elektronik	2,797	-	RFQ	Datasheet	Tray	WE-CMBH	Active	-	2	-	1 mH @ 10 kHz	15A	7.5mOhm	-	250V	-40°C ~ 125°C	-	-	-	Through Hole	1.220 L x 1.102 W (31.00mm x 28.00mm)	0.827 (21.00mm)
CM5441Z161B-10 CMC 75A 2LN 160 OHM TH Laird-Signal Integrity Products	2,186	-	RFQ	Datasheet	Tray	CM5441	Active	Power Line	2	160 Ohms @ 100 MHz	-	75A	0.3mOhm	340V	-	-40°C ~ 125°C	-	-	-	Through Hole	0.540 L x 0.410 W (13.72mm x 10.41mm)	0.600 (15.24mm)
P0502NLT CMC 14A 2LN SMD Pulse Electronics Power	843	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Power Line	2	-	-	14A	8mOhm	-	-	-40°C ~ 120°C	-	-	-	Surface Mount	1.220 L x 1.000 W (30.99mm x 25.40mm)	0.500 (12.70mm)
744822222 CMC 2.2MH 2A 2LN TH Würth Elektronik	2,541	-	RFQ	Datasheet	Bulk	WE-CMB	Active	Power Line	2	-	2.2 mH @ 10 kHz	2A	70mOhm	-	250V	-40°C ~ 125°C	-	-	-	Through Hole	0.689 L x 0.512 W (17.50mm x 13.00mm)	0.866 (22.00mm)

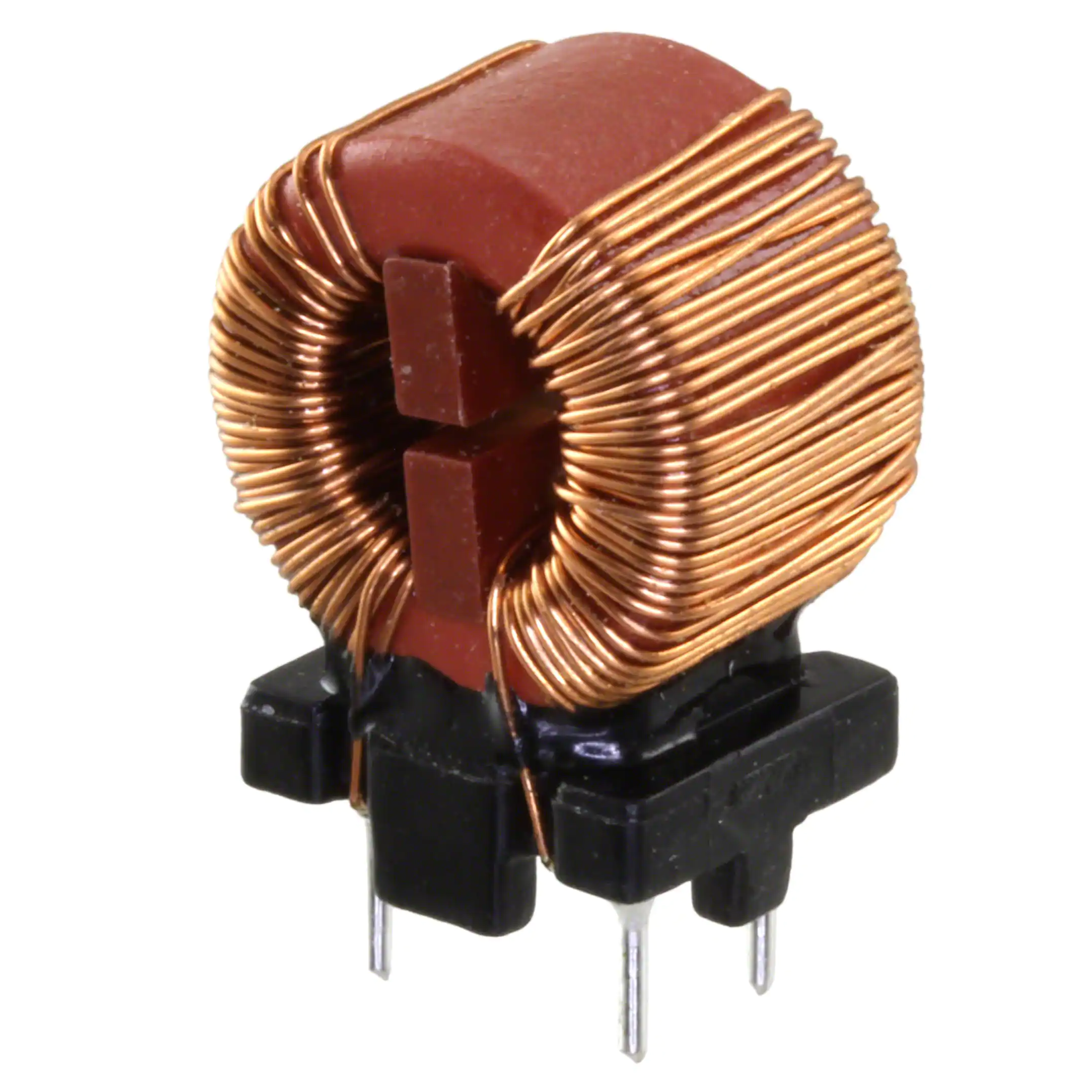

744822110 CMC 10MH 1A 2LN TH Würth Elektronik	2,145	-	RFQ	Datasheet	Bulk	WE-CMB	Active	Power Line	2	-	10 mH @ 10 kHz	1A	360mOhm	-	250V	-40°C ~ 125°C	-	-	-	Through Hole	0.689 L x 0.512 W (17.50mm x 13.00mm)	0.866 (22.00mm)
744822120 CMC 20MH 500MA 2LN TH Würth Elektronik	118	-	RFQ	Datasheet	Bulk	WE-CMB	Active	Power Line	2	-	20 mH @ 10 kHz	500mA	540mOhm	-	250V	-40°C ~ 125°C	-	-	-	Through Hole	0.689 L x 0.512 W (17.50mm x 13.00mm)	0.866 (22.00mm)

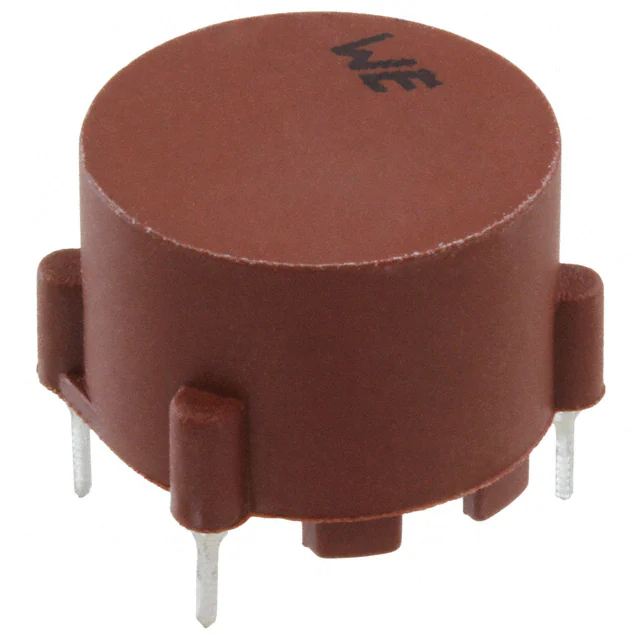

7446622002 CMC 2.2MH 2A 2LN TH Würth Elektronik	3,103	-	RFQ	Datasheet	Tray	WE-LF	Active	Power Line	2	-	2.2 mH @ 10 kHz	2A	100mOhm	-	250V	-40°C ~ 125°C	-	-	-	Through Hole	0.709 L x 0.709 W (18.00mm x 18.00mm)	0.512 (13.00mm)

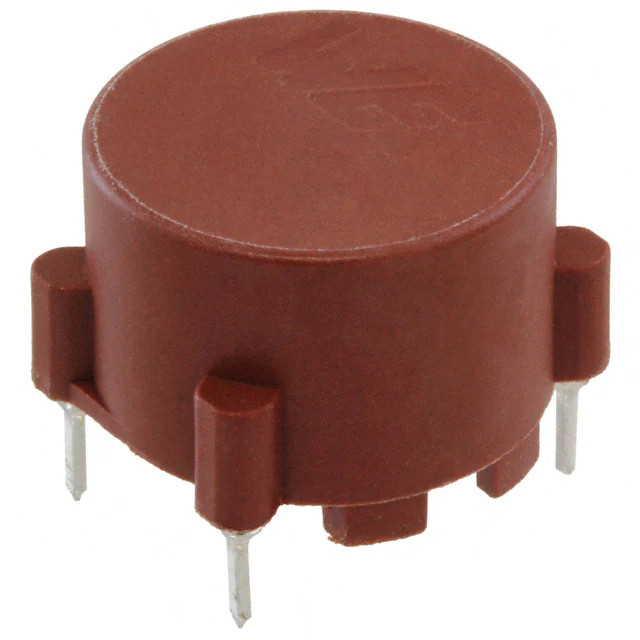

7446622001 CMC 1MH 2A 2LN TH Würth Elektronik	830	-	RFQ	Datasheet	Tray	WE-LF	Active	Power Line	2	-	1 mH @ 10 kHz	2A	60mOhm	-	250V	-40°C ~ 125°C	-	-	-	Through Hole	0.709 L x 0.709 W (18.00mm x 18.00mm)	0.512 (13.00mm)
P0429NLT CMC 9.7A 2LN SMD Pulse Electronics Power	3,082	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Power Line	2	-	-	9.7A	14mOhm	-	-	-40°C ~ 120°C	-	-	-	Surface Mount	1.220 L x 1.000 W (30.99mm x 25.40mm)	0.500 (12.70mm)

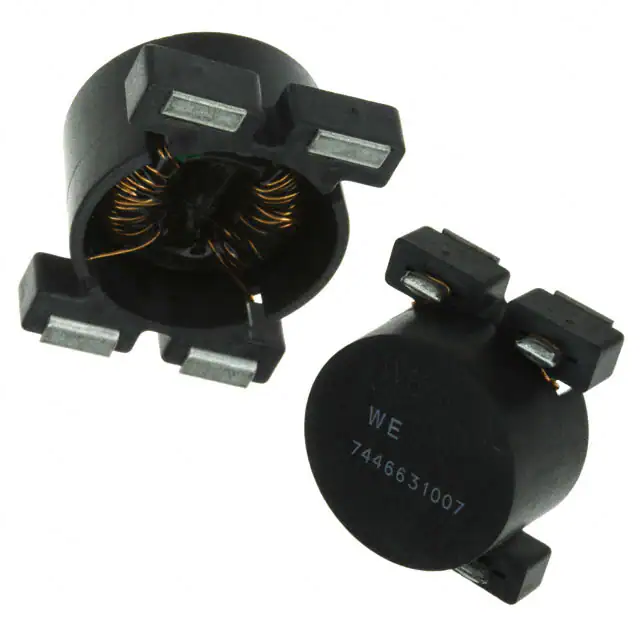

7446631007 CMC 6.8MH 1.4A 2LN SMD Würth Elektronik	800	-	RFQ	Datasheet	Tape & Reel (TR)	WE-LF	Active	Power Line	2	-	6.8 mH @ 10 kHz	1.4A	300mOhm	-	250V	-40°C ~ 125°C	-	-	-	Surface Mount	0.917 L x 0.728 W (23.30mm x 18.50mm)	0.453 (11.50mm)

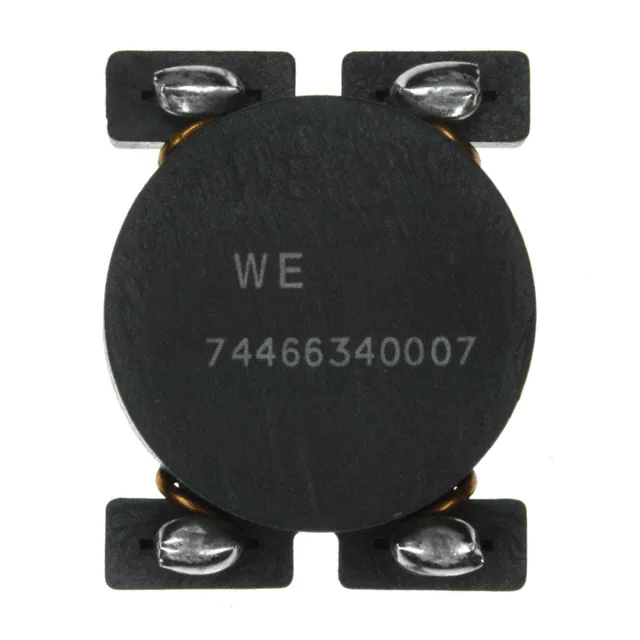

74466340007 CMC 700UH 5.25A 2LN SMD Würth Elektronik	646	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-LF	Active	Power Line	2	-	700 µH @ 10 kHz	5.25A	30mOhm	-	250V	-40°C ~ 125°C	-	-	-	Surface Mount	0.917 L x 0.728 W (23.30mm x 18.50mm)	0.453 (11.50mm)

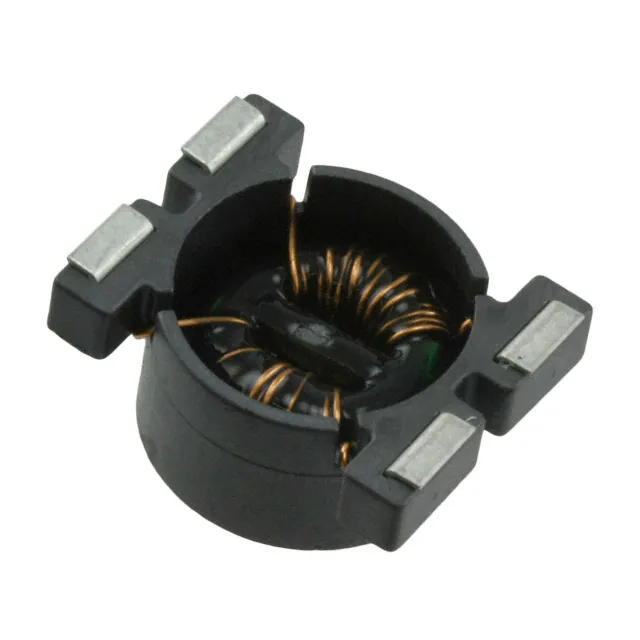

7446632002 CMC 2.2MH 2.75A 2LN SMD Würth Elektronik	703	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-LF	Active	Power Line	2	-	2.2 mH @ 10 kHz	2.75A	100mOhm	-	250V	-40°C ~ 125°C	-	-	-	Surface Mount	0.917 L x 0.728 W (23.30mm x 18.50mm)	0.453 (11.50mm)

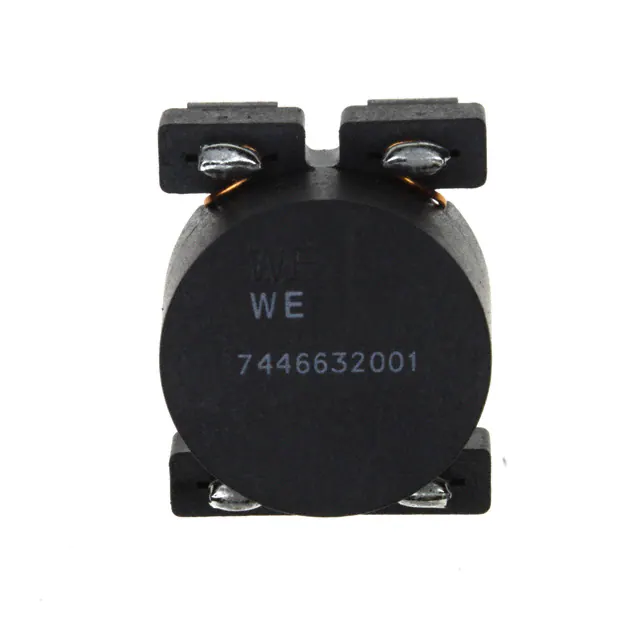

7446632001 CMC 1MH 3A 2LN SMD Würth Elektronik	580	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-LF	Active	Power Line	2	-	1 mH @ 10 kHz	3A	60mOhm	-	250V	-40°C ~ 125°C	-	-	-	Surface Mount	0.917 L x 0.728 W (23.30mm x 18.50mm)	0.453 (11.50mm)

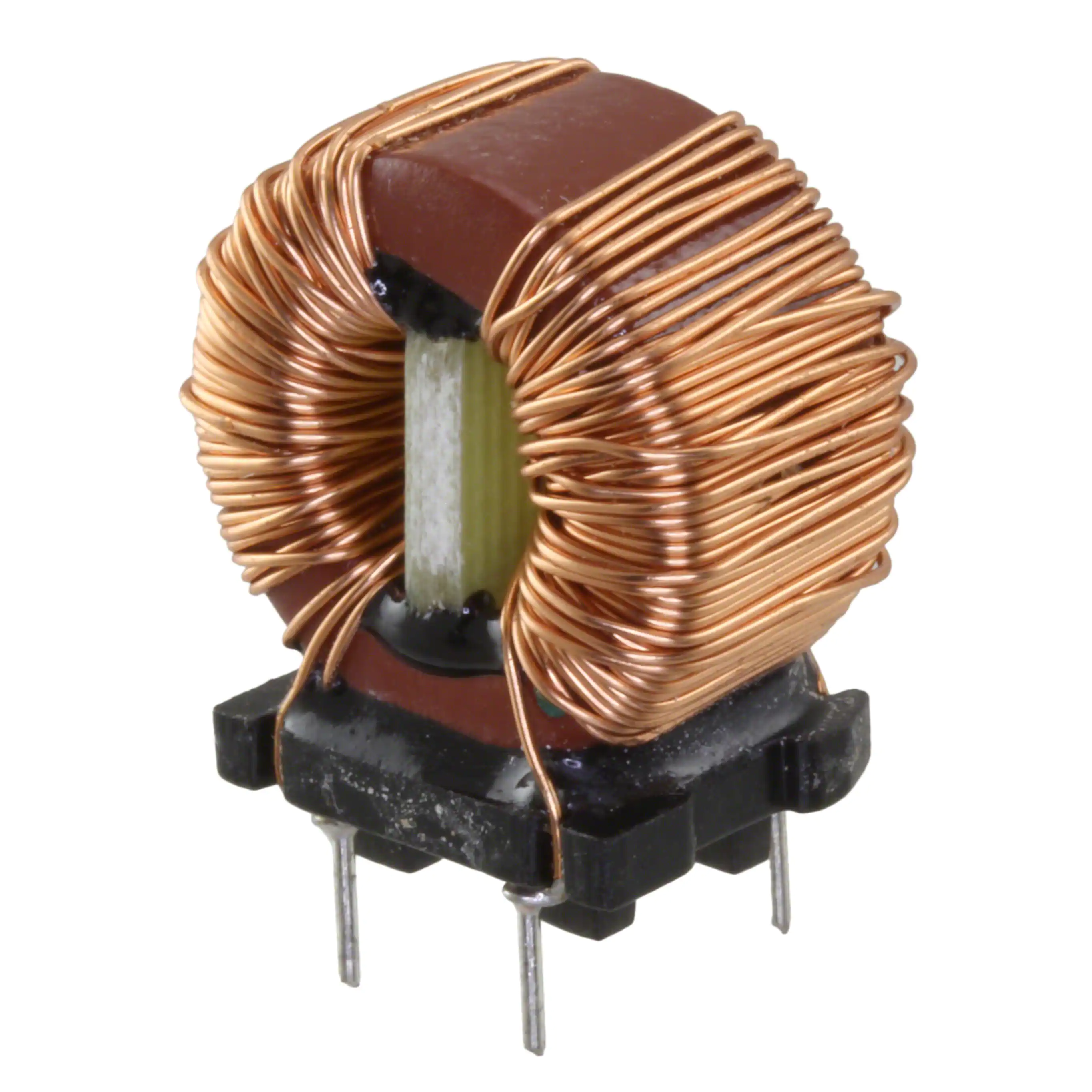

744823220 CMC 20MH 1.5A 2LN TH Würth Elektronik	2,098	-	RFQ	Datasheet	Bulk	WE-CMB	Active	Power Line	2	-	20 mH @ 10 kHz	1.5A	270mOhm	-	250V	-40°C ~ 125°C	-	-	-	Through Hole	0.906 L x 0.512 W (23.00mm x 13.00mm)	1.102 (28.00mm)
744823422 CMC 2.2MH 4A 2LN TH Würth Elektronik	3,243	-	RFQ	Datasheet	Bulk	WE-CMB	Active	Power Line	2	-	2.2 mH @ 10 kHz	4A	30mOhm	-	250V	-40°C ~ 125°C	-	-	-	Through Hole	0.925 L x 0.512 W (23.50mm x 13.00mm)	1.004 (25.50mm)
744824310 CMC 10MH 3A 2LN TH Würth Elektronik	3,922	-	RFQ	Datasheet	Bulk	WE-CMB	Active	Power Line	2	-	10 mH @ 10 kHz	3A	105mOhm	-	250V	-40°C ~ 125°C	-	-	-	Through Hole	1.083 L x 0.728 W (27.50mm x 18.50mm)	1.299 (33.00mm)
744824622 CMC 2.2MH 6A 2LN TH Würth Elektronik	991	-	RFQ	Datasheet	Bulk	WE-CMB	Active	Power Line	2	-	2.2 mH @ 10 kHz	6A	20mOhm	-	250V	-40°C ~ 125°C	-	-	-	Through Hole	1.083 L x 0.728 W (27.50mm x 18.50mm)	1.299 (33.00mm)
