Common Mode Chokes

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	FilterType	NumberofLines	Impedance@Frequency	Inductance@Frequency	CurrentRating(Max)	DCResistance(DCR)(Max)	VoltageRating-DC	VoltageRating-AC	OperatingTemperature	Ratings	ApprovalAgency	Features	MountingType	Size/Dimension	Height(Max)
SU7VC-12002 CMC 250UH 1.2A 2LN TH KEMET	382	-	RFQ	Datasheet	Tray	SU	Active	Power Line	2	-	250 µH @ 1 kHz	1.2A	160mOhm	-	125V	-25°C ~ 120°C	-	-	-	Through Hole	0.591 L x 0.394 W (15.00mm x 10.00mm)	0.335 (8.50mm)
SN5-1700 NMC 12.0UH 2.0A 0.0480 OHM TH KEMET	300	-	RFQ		Bulk	SN	Active	Power Line	2	-	-	-	-	-	-	-25°C ~ 105°C	-	-	-	Through Hole	-	-

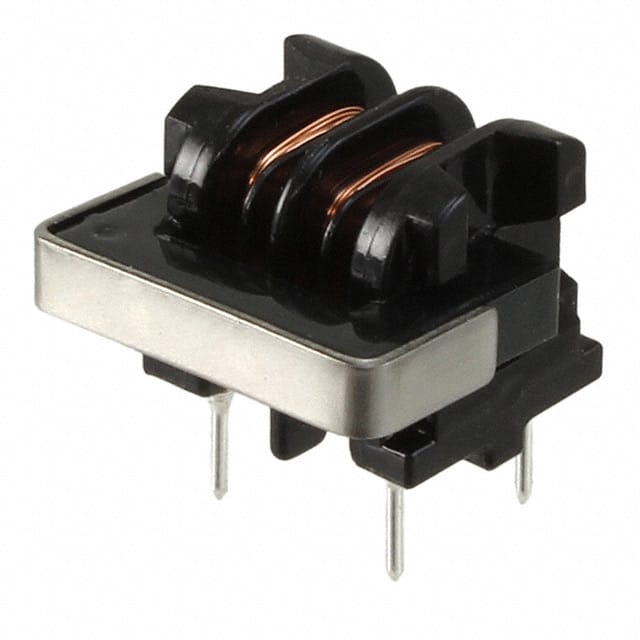

SU9HF-03060 CMC 6MH 300MA 2LN TH KEMET	899	-	RFQ	Datasheet	Bulk	SU	Active	Power Line	2	-	6 mH @ 1 kHz	300mA	2Ohm	-	250V	-25°C ~ 120°C	-	-	-	Through Hole	0.669 L x 0.610 W (17.00mm x 15.50mm)	0.472 (12.00mm)

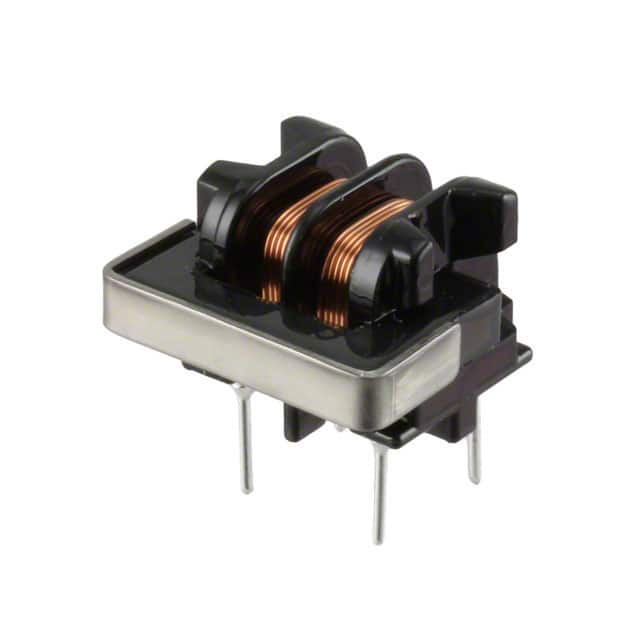

SU9H-10005 CMC 500UH 1A 2LN TH KEMET	409	-	RFQ	Datasheet	Bulk	SU	Active	Power Line	2	-	500 µH @ 1 kHz	1A	300mOhm	-	250V	-25°C ~ 120°C	-	-	-	Through Hole	0.669 L x 0.610 W (17.00mm x 15.50mm)	0.492 (12.50mm)

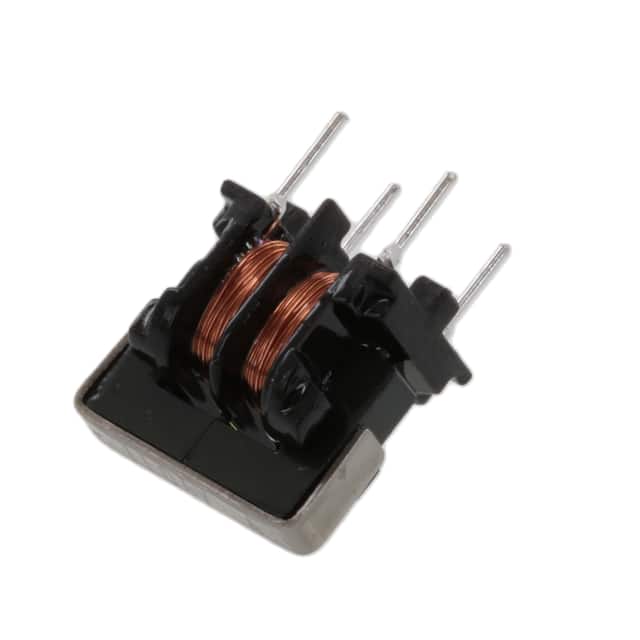

ST-110AV CMC TROID, 27000OHM, 3000MOHM KEMET	170	-	RFQ	Datasheet	Tray	ST	Active	-	2	27 kOhms @ 500 kHz	-	300mA	3Ohm	50V	-	-20°C ~ 75°C	-	-	-	Through Hole	0.669 L x 0.433 W (17.00mm x 11.00mm)	0.669 (17.00mm)
SU9VD-07040 CMC 40UH 700MA 2LN TH KEMET	132	-	RFQ	Datasheet	Bulk	SU	Active	Power Line	2	-	40 µH @ 1 kHz	700mA	180mOhm	-	250V	-25°C ~ 120°C	-	-	-	Through Hole	0.669 L x 0.433 W (17.00mm x 11.00mm)	0.669 (17.00mm)
SHO-302 CMC 4A 2LN TH KEMET	170	-	RFQ	Datasheet	Bulk	SHO	Active	Power Line	2	-	-	4A	10mOhm	50V	-	-25°C ~ 70°C	-	-	-	Through Hole	0.433 Dia (11.00mm)	0.433 (11.00mm)
SN5-5501 NMC 80.0UH 1.0A 0.2000 OHM TH KEMET	257	-	RFQ		Bulk	SN	Active	Power Line	2	-	-	-	-	-	-	-25°C ~ 105°C	-	-	-	Through Hole	-	-
SSHB10H-R04760 CMC 76MH 400MA 2LN TH KEMET	300	-	RFQ	Datasheet	Bulk	SSHB10H	Active	-	2	-	76 mH @ 10 kHz	400mA	2.7Ohm	-	250V	-25°C ~ 120°C	-	-	-	Through Hole	0.866 L x 0.669 W (22.00mm x 17.00mm)	0.610 (15.50mm)
SSHB10HS-R22027 CMC 2.7MH 2.2A 2LN TH KEMET	238	-	RFQ	Datasheet	Bulk	SSHB10HS	Active	-	2	-	2.7 mH @ 10 kHz	2.2A	110mOhm	-	250V	-25°C ~ 120°C	-	-	-	Through Hole	0.866 L x 0.669 W (22.00mm x 17.00mm)	0.610 (15.50mm)
SSHB10HS-R08160 CMC 16MH 800MA 2LN TH KEMET	119	-	RFQ	Datasheet	Bulk	SSHB10HS	Active	-	2	-	16 mH @ 10 kHz	800mA	580mOhm	-	250V	-25°C ~ 120°C	-	-	-	Through Hole	0.866 L x 0.669 W (22.00mm x 17.00mm)	0.610 (15.50mm)
SSHB10H-R13088 CMC 8.8MH 1.3A 2LN TH KEMET	115	-	RFQ	Datasheet	Bulk	SSHB10H	Active	-	2	-	8.8 mH @ 10 kHz	1.3A	280mOhm	-	250V	-25°C ~ 120°C	-	-	-	Through Hole	0.866 L x 0.669 W (22.00mm x 17.00mm)	0.610 (15.50mm)
SSHB10H-R05500 CMC 50MH 500MA 2LN TH KEMET	114	-	RFQ	Datasheet	Bulk	SSHB10H	Active	-	2	-	50 mH @ 10 kHz	500mA	1.7Ohm	-	250V	-25°C ~ 120°C	-	-	-	Through Hole	0.866 L x 0.669 W (22.00mm x 17.00mm)	0.610 (15.50mm)
SSHB10H-R06400 CMC 40MH 600MA 2LN TH KEMET	110	-	RFQ	Datasheet	Bulk	SSHB10H	Active	-	2	-	40 mH @ 10 kHz	600mA	1.3Ohm	-	250V	-25°C ~ 120°C	-	-	-	Through Hole	0.866 L x 0.669 W (22.00mm x 17.00mm)	0.610 (15.50mm)
SSHB10H-R08194 CMC 19.4MH 800MA 2LN TH KEMET	110	-	RFQ	Datasheet	Bulk	SSHB10H	Active	-	2	-	19.4 mH @ 10 kHz	800mA	640mOhm	-	250V	-25°C ~ 120°C	-	-	-	Through Hole	0.866 L x 0.669 W (22.00mm x 17.00mm)	0.610 (15.50mm)
SSHB10H-R17055 CMC 5.5MH 1.7A 2LN TH KEMET	3,681	-	RFQ	Datasheet	Bulk	SSHB10H	Active	-	2	-	5.5 mH @ 10 kHz	1.7A	190mOhm	-	250V	-25°C ~ 120°C	-	-	-	Through Hole	0.866 L x 0.669 W (22.00mm x 17.00mm)	0.610 (15.50mm)
SHO-501 CMC 800MA 2LN TH KEMET	487	-	RFQ	Datasheet	Bulk	SHO	Active	Power Line	2	-	-	800mA	105mOhm	50V	-	-25°C ~ 80°C	-	-	-	Through Hole	-	0.244 (6.20mm)
SSHB10HS-17019 CMC 1.9MH 1.7A 2LN TH KEMET	146	-	RFQ	Datasheet	Bulk	SSHB10HS	Active	-	2	-	1.9 mH @ 10 kHz	1.7A	170mOhm	-	250V	-25°C ~ 120°C	-	-	-	Through Hole	0.866 L x 0.669 W (22.00mm x 17.00mm)	0.610 (15.50mm)
SSHB10HS-04265 CMC 26.5MH 400MA 2LN TH KEMET	130	-	RFQ	Datasheet	Bulk	SSHB10HS	Active	-	2	-	26.5 mH @ 10 kHz	400mA	2.45Ohm	-	250V	-25°C ~ 120°C	-	-	-	Through Hole	0.866 L x 0.669 W (22.00mm x 17.00mm)	0.610 (15.50mm)
SSHB10H-06171 CMC 17.1MH 600MA 2LN TH KEMET	114	-	RFQ	Datasheet	Bulk	SSHB10H	Active	-	2	-	17.1 mH @ 10 kHz	600mA	1.3Ohm	-	250V	-25°C ~ 120°C	-	-	-	Through Hole	0.866 L x 0.669 W (22.00mm x 17.00mm)	0.610 (15.50mm)
