Common Mode Chokes

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	FilterType	NumberofLines	Impedance@Frequency	Inductance@Frequency	CurrentRating(Max)	DCResistance(DCR)(Max)	VoltageRating-DC	VoltageRating-AC	OperatingTemperature	Ratings	ApprovalAgency	Features	MountingType	Size/Dimension	Height(Max)

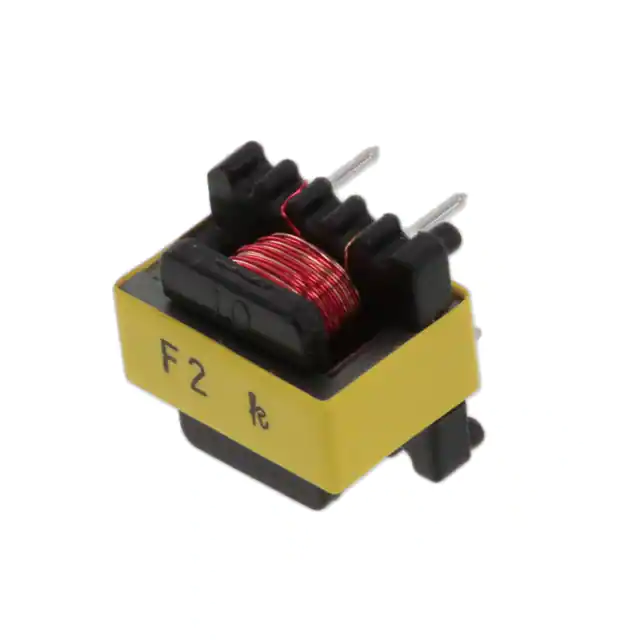

ST-101F2 CMC, TROID, 40000OHM, 2700MOHM KEMET	3,847	-	RFQ	Datasheet	Tray	ST	Active	-	2	40 kOhms @ 600 kHz	-	200mA	2.7Ohm	50V	-	-20°C ~ 75°C	-	-	-	Through Hole	0.551 L x 0.512 W (14.00mm x 13.00mm)	0.413 (10.50mm)

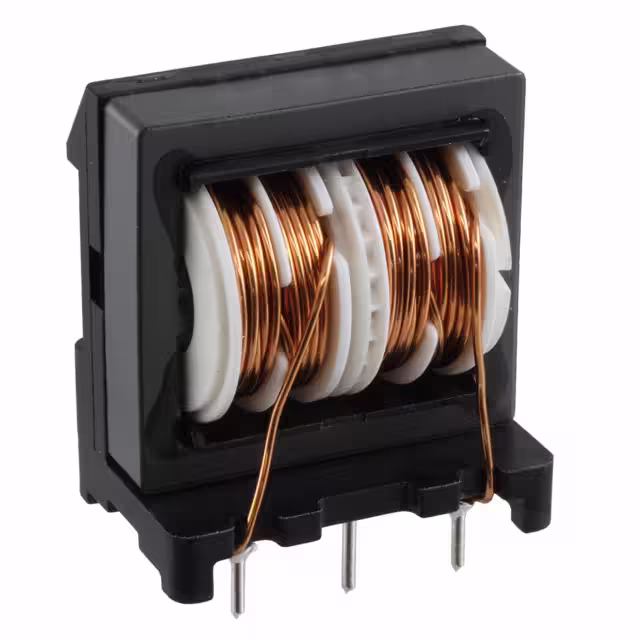

SS35V-30082 CMC 8.2MH 3A 2LN TH KEMET	3,494	-	RFQ	Datasheet	Bulk	SS	Active	Power Line	2	-	8.2 mH @ 1 kHz	3A	150mOhm	-	250V	-25°C ~ 120°C	-	-	-	Through Hole	1.457 L x 1.043 W (37.00mm x 26.50mm)	1.614 (41.00mm)
SS30V-R300071 CMC 7.1MH 3A 2LN TH KEMET	2,002	-	RFQ	Datasheet	Bulk	SS	Active	Power Line	2	-	7.1 mH @ 1 kHz	3A	120mOhm	-	250V	-25°C ~ 120°C	-	-	-	Through Hole	1.220 L x 0.886 W (31.00mm x 22.50mm)	1.339 (34.00mm)
SS30V-R200132 CMC 13.2MH 2A 2LN TH KEMET	3,003	-	RFQ	Datasheet	Bulk	SS	Active	Power Line	2	-	13.2 mH @ 1 kHz	2A	210mOhm	-	250V	-25°C ~ 120°C	-	-	-	Through Hole	1.220 L x 0.886 W (31.00mm x 22.50mm)	1.339 (34.00mm)
SC-02-E120JKH CMC 12MH 2A 2LN TH KEMET	2,533	-	RFQ	Datasheet	Tray	SC	Active	Power Line	2	-	12 mH @ 10 kHz	2A	-	250V	250V	-25°C ~ 120°C	-	-	-	Through Hole	-	0.669 (17.00mm)
SC-03-08JS CMC 800UH 3A 2LN TH KEMET	2,076	-	RFQ	Datasheet	Bulk	SC	Active	Power Line	2	-	800 µH @ 1 kHz	3A	60mOhm	250V	250V	-25°C ~ 105°C	-	-	-	Through Hole	1.142 L x 1.024 W (29.00mm x 26.00mm)	0.472 (12.00mm)

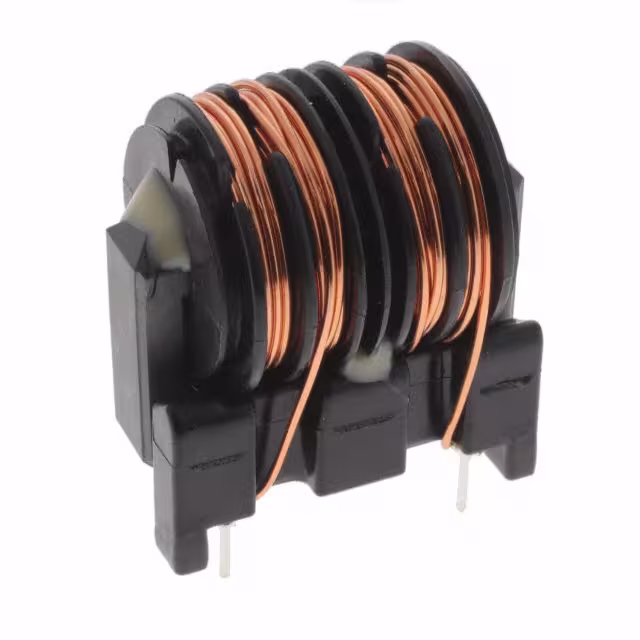

SS30V-200100 CMC 10MH 2A 2LN TH KEMET	2,063	-	RFQ	Datasheet	Tray	SS	Active	Power Line	2	-	10 mH @ 1 kHz	2A	210mOhm	-	250V	-25°C ~ 120°C	-	-	-	Through Hole	1.220 L x 0.886 W (31.00mm x 22.50mm)	1.339 (34.00mm)

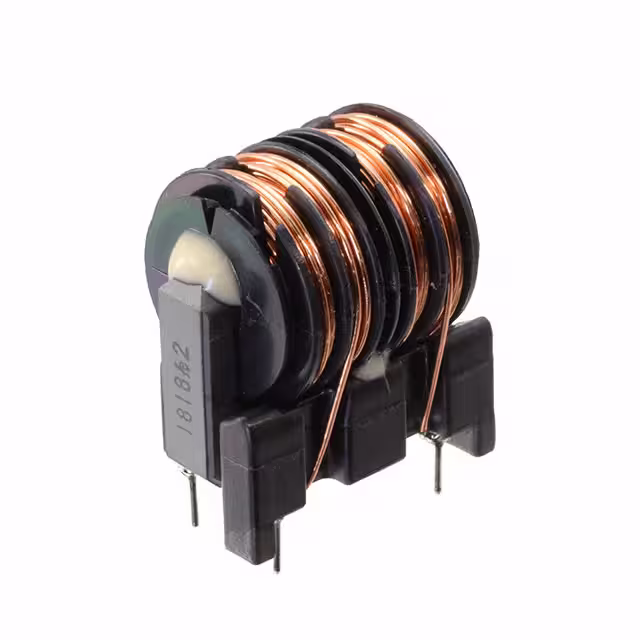

SS30V-180145 CMC 14.5MH 1.8A 2LN TH KEMET	3,654	-	RFQ	Datasheet	Tray	SS	Active	Power Line	2	-	14.5 mH @ 1 kHz	1.8A	230mOhm	-	250V	-25°C ~ 120°C	-	-	-	Through Hole	1.220 L x 0.886 W (31.00mm x 22.50mm)	1.339 (34.00mm)
SS30V-150200 CMC 20MH 1.5A 2LN TH KEMET	2,671	-	RFQ	Datasheet	Tray	SS	Active	Power Line	2	-	20 mH @ 1 kHz	1.5A	500mOhm	-	250V	-25°C ~ 120°C	-	-	-	Through Hole	1.220 L x 0.886 W (31.00mm x 22.50mm)	1.339 (34.00mm)
SC-02-20JS CMC 1MH 2A 2LN TH KEMET	3,288	-	RFQ	Datasheet	Bulk	SC	Active	Power Line	2	-	2 mH @ 1 kHz	2A	100mOhm	250V	250V	-25°C ~ 105°C	-	-	-	Through Hole	1.142 L x 1.024 W (29.00mm x 26.00mm)	0.472 (12.00mm)
SC-03-10JS CMC 1MH 3A 2LN TH KEMET	3,444	-	RFQ	Datasheet	Bulk	SC	Active	Power Line	2	-	1 mH @ 1 kHz	3A	80mOhm	250V	250V	-25°C ~ 105°C	-	-	-	Through Hole	1.142 L x 1.024 W (29.00mm x 26.00mm)	0.472 (12.00mm)

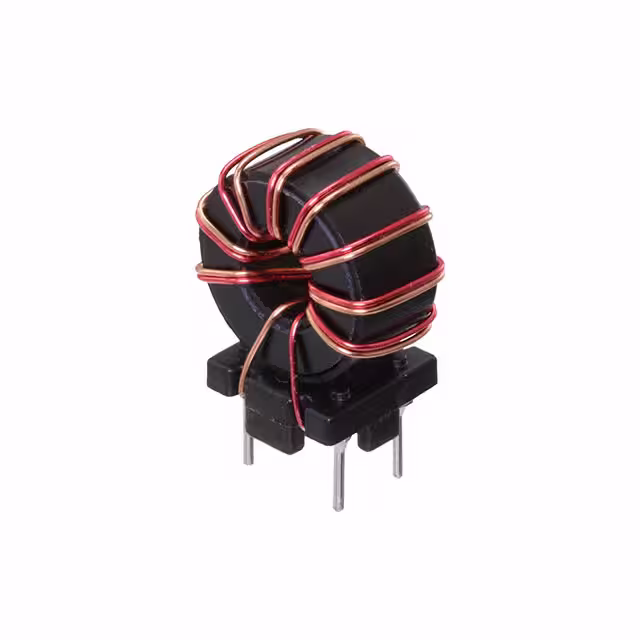

ST-202A CMC, TROID, 600OHM, 50MOHM KEMET	3,357	-	RFQ	Datasheet	Tray	ST	Active	-	2	600 Ohms @ 100 MHz	-	1A	50mOhm	50V	-	-20°C ~ 65°C	-	-	-	Through Hole	0.630 Dia (16.00mm)	0.413 (10.50mm)

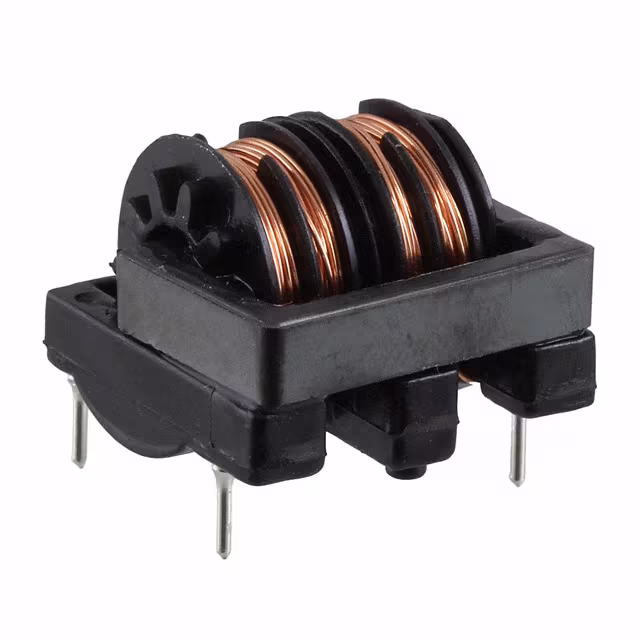

SS11H-07120-CH CMC 12MH 700MA 2LN TH KEMET	2,732	-	RFQ	Datasheet	Bulk	SS	Active	Power Line	2	-	12 mH @ 1 kHz	700mA	900mOhm	-	250V	-25°C ~ 120°C	-	-	-	Through Hole	0.827 L x 0.807 W (21.00mm x 20.50mm)	0.669 (17.00mm)

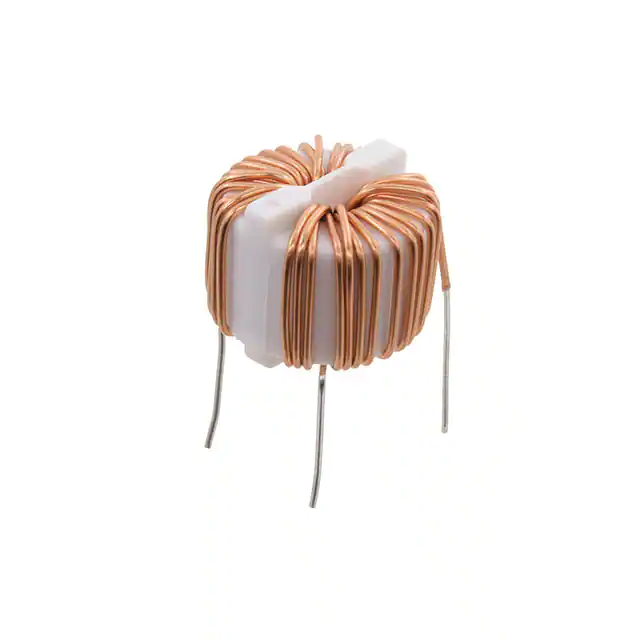

SC-05-103 CMC 1MH 5A 2LN TH KEMET	3,797	-	RFQ	Datasheet	Bulk	SC	Active	Power Line	2	-	1 mH @ 100 kHz	5A	50mOhm	250V	250V	-25°C ~ 105°C	-	-	-	Through Hole	0.984 Dia (25.00mm)	0.728 (18.50mm)

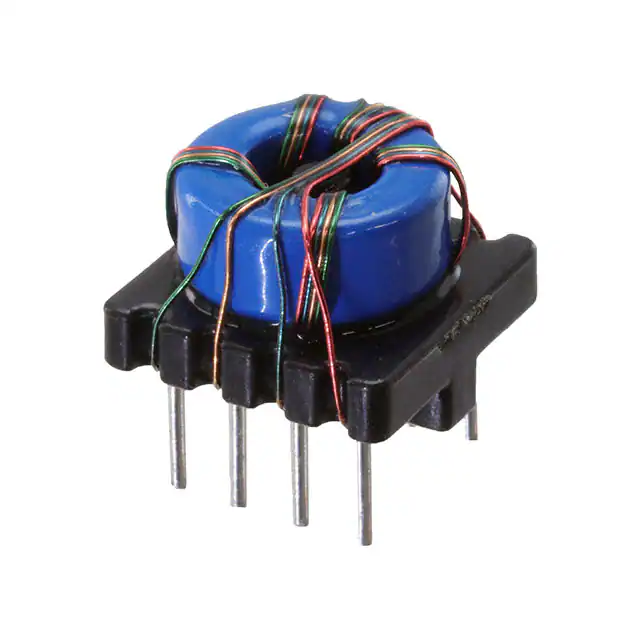

ST-204A1 CMC, TROID, 250OHM, 100MOHM KEMET	2,009	-	RFQ	Datasheet	Tray	ST	Active	-	4	250 Ohms @ 10 MHz	-	500mA	100mOhm	50V	-	-20°C ~ 75°C	-	-	-	Through Hole	0.512 L x 0.512 W (13.00mm x 13.00mm)	0.433 (11.00mm)
ST-204A4 CMC, TROID, 600OHM, 120MOHM KEMET	2,802	-	RFQ	Datasheet	Tray	ST	Active	-	4	600 Ohms @ 7 MHz	-	500mA	120mOhm	50V	-	-20°C ~ 75°C	-	-	-	Through Hole	0.512 L x 0.512 W (13.00mm x 13.00mm)	0.433 (11.00mm)

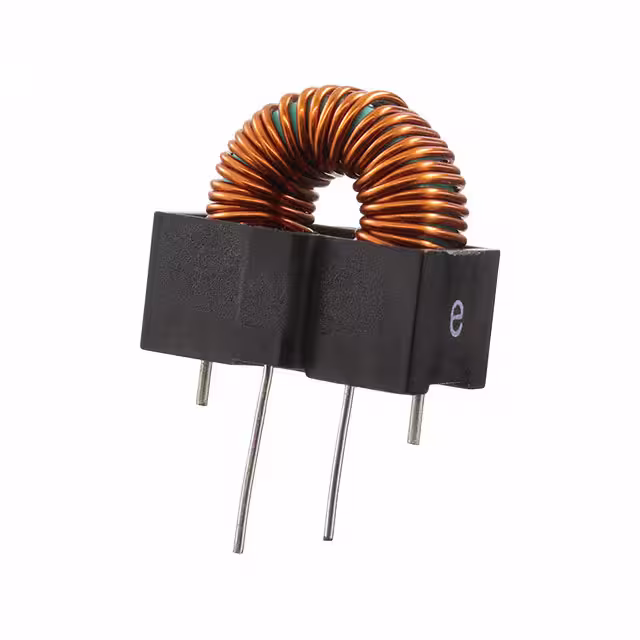

SN8S-500JB CMC 72UH 2A 2LN TH KEMET	3,716	-	RFQ	Datasheet	Bulk	SN	Active	Power Line	2	-	72 µH @ 100 kHz	2A	85mOhm	-	-	-25°C ~ 105°C	-	-	-	Through Hole	0.709 L x 0.492 W (18.00mm x 12.50mm)	0.854 (21.70mm)
SC-03-85J CMC 8.5MH 3A 2LN TH KEMET	3,608	-	RFQ	Datasheet	Tray	SC	Active	Power Line	2	-	8.5 mH @ 10 kHz	3A	110mOhm	250V	250V	25°C ~ 120°C	-	-	-	Through Hole	0.984 L x 0.787 W (25.00mm x 20.00mm)	1.063 (27.00mm)
SC-02-100J CMC 10MH 2A 2LN TH KEMET	2,891	-	RFQ	Datasheet	Tray	SC	Active	Power Line	2	-	10 mH @ 100 kHz	2A	220mOhm	250V	250V	25°C ~ 120°C	-	-	-	Through Hole	0.984 L x 0.787 W (25.00mm x 20.00mm)	1.063 (27.00mm)
SC-06-35J CMC 3.5MH 6A 2LN TH KEMET	3,631	-	RFQ	Datasheet	Tray	SC	Active	Power Line	2	-	3.5 mH @ 10 kHz	6A	50mOhm	250V	250V	25°C ~ 120°C	-	-	-	Through Hole	1.339 L x 0.945 W (34.00mm x 24.00mm)	1.299 (33.00mm)
