Common Mode Chokes

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	FilterType	NumberofLines	Impedance@Frequency	Inductance@Frequency	CurrentRating(Max)	DCResistance(DCR)(Max)	VoltageRating-DC	VoltageRating-AC	OperatingTemperature	Ratings	ApprovalAgency	Features	MountingType	Size/Dimension	Height(Max)
SN8S-300 CMC 26UH 2A 2LN TH KEMET	3,080	-	RFQ	Datasheet	Bulk	SN	Active	Power Line	2	-	26 µH @ 100 kHz	2A	42mOhm	-	-	-25°C ~ 105°C	-	-	-	Through Hole	-	0.689 (17.50mm)
SNT-S10TF CMC 1.5UH 3A 2LN TH KEMET	3,813	-	RFQ	Datasheet	Tape & Box (TB)	SNT	Active	Signal Line	2	-	1.5 µH @ 100 kHz	3A	25Ohm	-	-	-20°C ~ 60°C	-	-	-	Through Hole	0.374 L x 0.197 W (9.50mm x 5.00mm)	0.500 (12.70mm)
SNT-S10T CMC 1.5UH 3A 2LN TH KEMET	3,635	-	RFQ	Datasheet	Tape & Reel (TR)	SNT	Active	Signal Line	2	-	1.5 µH @ 100 kHz	3A	25Ohm	-	-	-20°C ~ 60°C	-	-	-	Through Hole	0.374 L x 0.197 W (9.50mm x 5.00mm)	0.500 (12.70mm)

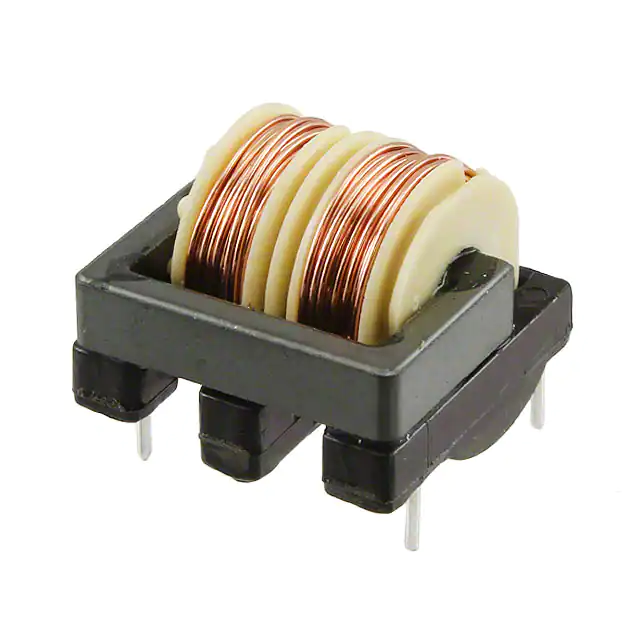

SSB11H-R13090 CMC 9MH 1.3A 2LN TH KEMET	2,457	-	RFQ	Datasheet	Bulk	SS	Active	Power Line	2	-	9 mH @ 1 kHz	1.3A	380mOhm	-	250V	-25°C ~ 130°C	-	-	-	Through Hole	0.831 L x 0.807 W (21.10mm x 20.50mm)	0.669 (17.00mm)
SS20H-10080 CMC 8MH 1A 2LN TH KEMET	3,675	-	RFQ	Datasheet	Bulk	SS	Active	Power Line	2	-	8 mH @ 1 kHz	1A	420mOhm	-	250V	-25°C ~ 120°C	-	-	-	Through Hole	0.866 L x 0.866 W (22.00mm x 22.00mm)	0.728 (18.50mm)
SS20H-R06200 CMC 20MH 600MA 2LN TH KEMET	3,746	-	RFQ	Datasheet	Bulk	SS	Active	Power Line	2	-	20 mH @ 1 kHz	600mA	930mOhm	-	250V	-25°C ~ 120°C	-	-	-	Through Hole	0.866 L x 0.866 W (22.00mm x 22.00mm)	0.728 (18.50mm)

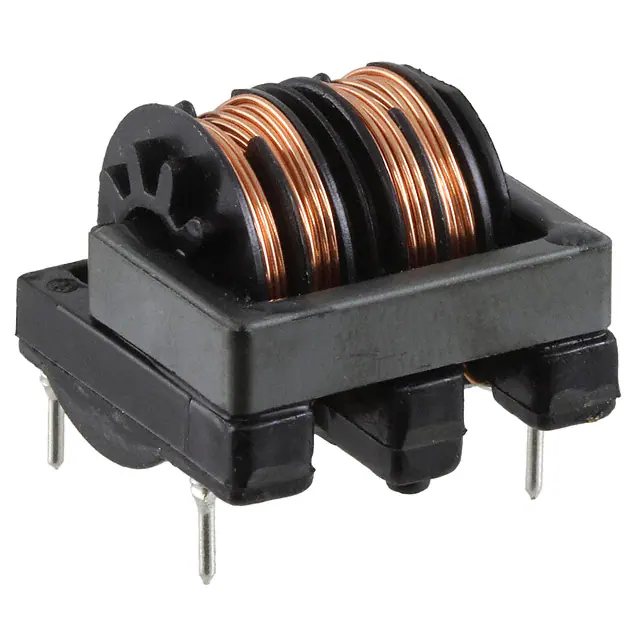

SS11H-10062-CH CMC 6.2MH 1A 2LN TH KEMET	3,705	-	RFQ	Datasheet	Bulk	SS	Active	Power Line	2	-	6.2 mH @ 1 kHz	1A	440mOhm	-	250V	-25°C ~ 120°C	-	-	-	Through Hole	0.827 L x 0.807 W (21.00mm x 20.50mm)	0.669 (17.00mm)

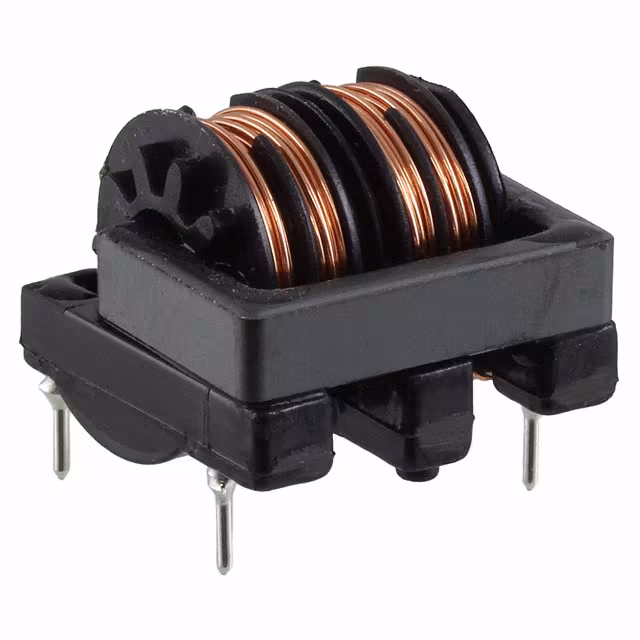

SS11H-R10093-CH CMC 9.3MH 1A 2LN TH KEMET	3,287	-	RFQ	Datasheet	Bulk	SS	Active	Power Line	2	-	9.3 mH @ 1 kHz	1A	440mOhm	-	250V	-25°C ~ 120°C	-	-	-	Through Hole	0.827 L x 0.807 W (21.00mm x 20.50mm)	0.669 (17.00mm)
SSHB10H-R11128 CMC 12.8MH 1.1A 2LN TH KEMET	3,320	-	RFQ	Datasheet	Bulk	SSHB10H	Active	-	2	-	12.8 mH @ 10 kHz	1.1A	390mOhm	-	250V	-25°C ~ 120°C	-	-	-	Through Hole	0.866 L x 0.669 W (22.00mm x 17.00mm)	0.610 (15.50mm)
SSHB10HS-R10122 CMC 12.2MH 1A 2LN TH KEMET	2,741	-	RFQ	Datasheet	Bulk	SSHB10HS	Active	-	2	-	12.2 mH @ 10 kHz	1A	430mOhm	-	250V	-25°C ~ 120°C	-	-	-	Through Hole	0.866 L x 0.669 W (22.00mm x 17.00mm)	0.610 (15.50mm)
SSHB10HS-08068 CMC 6.8MH 800MA 2LN TH KEMET	3,744	-	RFQ	Datasheet	Bulk	SSHB10HS	Active	-	2	-	6.8 mH @ 10 kHz	800mA	580mOhm	-	250V	-25°C ~ 120°C	-	-	-	Through Hole	0.866 L x 0.669 W (22.00mm x 17.00mm)	0.610 (15.50mm)
SSHB10HS-10051 CMC 5.1MH 1A 2LN TH KEMET	2,499	-	RFQ	Datasheet	Bulk	SSHB10HS	Active	-	2	-	5.1 mH @ 10 kHz	1A	430mOhm	-	250V	-25°C ~ 120°C	-	-	-	Through Hole	0.866 L x 0.669 W (22.00mm x 17.00mm)	0.610 (15.50mm)
SSHB10HS-30006 CMC 600UH 3A 2LN TH KEMET	3,260	-	RFQ	Datasheet	Bulk	SSHB10HS	Active	-	2	-	600 µH @ 10 kHz	3A	60mOhm	-	250V	-25°C ~ 120°C	-	-	-	Through Hole	0.866 L x 0.669 W (22.00mm x 17.00mm)	0.610 (15.50mm)
SS21V-220017 CMC 1.7MH 2.2A 2LN TH KEMET	2,803	-	RFQ	Datasheet	Bulk	SS	Active	Power Line	2	-	1.7 mH @ 1 kHz	2.2A	130mOhm	-	250V	-25°C ~ 120°C	-	-	-	Through Hole	0.807 L x 0.650 W (20.50mm x 16.50mm)	1.004 (25.50mm)
SS21V-070125 CMC 2LN TH KEMET	2,235	-	RFQ	Datasheet	Bulk	SS	Not For New Designs	Power Line	2	-	-	-	-	-	250V	-25°C ~ 120°C	-	-	-	Through Hole	0.807 L x 0.650 W (20.50mm x 16.50mm)	1.004 (25.50mm)
SS21V-R400005 CMC 2LN TH KEMET	3,660	-	RFQ	Datasheet	Bulk	SS	Not For New Designs	Power Line	2	-	-	-	-	-	250V	-25°C ~ 120°C	-	-	-	Through Hole	0.807 L x 0.650 W (20.50mm x 16.50mm)	1.004 (25.50mm)
SNT-D20TF CMC 10UH 1.5A 2LN TH KEMET	2,790	-	RFQ	Datasheet	Tape & Box (TB)	SNT	Active	Signal Line	2	-	10 µH @ 100 kHz	1.5A	45Ohm	-	-	-20°C ~ 60°C	-	-	-	Through Hole	0.374 L x 0.236 W (9.50mm x 6.00mm)	0.500 (12.70mm)
SNT-D20T CMC 10UH 1.5A 2LN TH KEMET	2,968	-	RFQ	Datasheet	Tape & Reel (TR)	SNT	Active	Signal Line	2	-	10 µH @ 100 kHz	1.5A	45Ohm	-	-	-20°C ~ 60°C	-	-	-	Through Hole	0.374 L x 0.236 W (9.50mm x 6.00mm)	0.500 (12.70mm)
SNT-S20T CMC 6UH 1.5A 2LN TH KEMET	2,946	-	RFQ	Datasheet	Tape & Reel (TR)	SNT	Active	Signal Line	2	-	6 µH @ 100 kHz	1.5A	35Ohm	-	-	-20°C ~ 60°C	-	-	-	Through Hole	0.374 L x 0.197 W (9.50mm x 5.00mm)	0.500 (12.70mm)
SNT-S20TF CMC 6UH 1.5A 2LN TH KEMET	2,793	-	RFQ	Datasheet	Tape & Box (TB)	SNT	Active	Signal Line	2	-	6 µH @ 100 kHz	1.5A	35Ohm	-	-	-20°C ~ 60°C	-	-	-	Through Hole	0.374 L x 0.197 W (9.50mm x 5.00mm)	0.500 (12.70mm)
