Common Mode Chokes

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	FilterType	NumberofLines	Impedance@Frequency	Inductance@Frequency	CurrentRating(Max)	DCResistance(DCR)(Max)	VoltageRating-DC	VoltageRating-AC	OperatingTemperature	Ratings	ApprovalAgency	Features	MountingType	Size/Dimension	Height(Max)
LF1290NP-472 CMC 4.7MH 340MA 2LN TH Sumida America Components Inc.	3,746	-	RFQ	Datasheet	Tape & Reel (TR)	LF	Active	Power Line	2	-	4.7 mH @ 1 kHz	340mA	1.6Ohm	-	-	-	-	-	-	Through Hole	0.669 L x 0.512 W (17.00mm x 13.00mm)	0.374 (9.50mm)
LF1290NP-681 CMC 680UH 850MA 2LN TH Sumida America Components Inc.	3,458	-	RFQ	Datasheet	Tape & Reel (TR)	LF	Active	Power Line	2	-	680 µH @ 1 kHz	850mA	250mOhm	-	-	-	-	-	-	Through Hole	0.669 L x 0.512 W (17.00mm x 13.00mm)	0.374 (9.50mm)
LF1290NP-682 CMC 6.8MH 250MA 2LN TH Sumida America Components Inc.	2,052	-	RFQ	Datasheet	Tape & Reel (TR)	LF	Active	Power Line	2	-	6.8 mH @ 1 kHz	250mA	2.5Ohm	-	-	-	-	-	-	Through Hole	0.669 L x 0.512 W (17.00mm x 13.00mm)	0.374 (9.50mm)

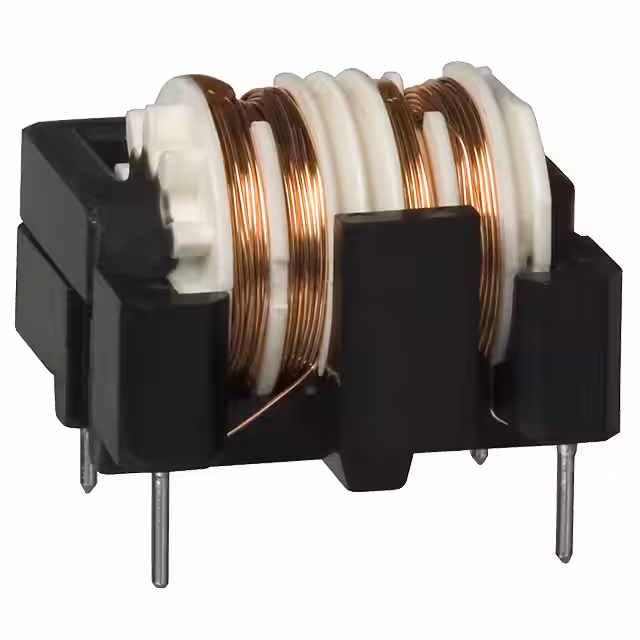

LF2115NP-222 CMC 2.2MH 1.3A 2LN TH Sumida America Components Inc.	3,695	-	RFQ	Datasheet	Bulk	LF	Active	Power Line	2	-	2.2 mH @ 1 kHz	1.3A	240mOhm	-	-	-	-	-	-	Through Hole	0.827 L x 0.827 W (21.00mm x 21.00mm)	0.669 (17.00mm)
LF2115NP-392 CMC 3.9MH 1A 2LN TH Sumida America Components Inc.	2,367	-	RFQ	Datasheet	Bulk	LF	Active	Power Line	2	-	3.9 mH @ 1 kHz	1A	410mOhm	-	-	-	-	-	-	Through Hole	0.827 L x 0.827 W (21.00mm x 21.00mm)	0.669 (17.00mm)
LF2115NP-103 CMC 10MH 600MA 2LN TH Sumida America Components Inc.	2,753	-	RFQ	Datasheet	Bulk	LF	Active	Power Line	2	-	10 mH @ 1 kHz	600mA	1Ohm	-	-	-	-	-	-	Through Hole	0.827 L x 0.827 W (21.00mm x 21.00mm)	0.669 (17.00mm)
LF2115NP-183 CMC 18MH 500MA 2LN TH Sumida America Components Inc.	2,662	-	RFQ	Datasheet	Bulk	LF	Active	Power Line	2	-	18 mH @ 1 kHz	500mA	1.63Ohm	-	-	-	-	-	-	Through Hole	0.827 L x 0.827 W (21.00mm x 21.00mm)	0.669 (17.00mm)
LF2115NP-223 CMC 22MH 400MA 2LN TH Sumida America Components Inc.	3,053	-	RFQ	Datasheet	Bulk	LF	Active	Power Line	2	-	22 mH @ 1 kHz	400mA	2.04Ohm	-	-	-	-	-	-	Through Hole	0.827 L x 0.827 W (21.00mm x 21.00mm)	0.669 (17.00mm)

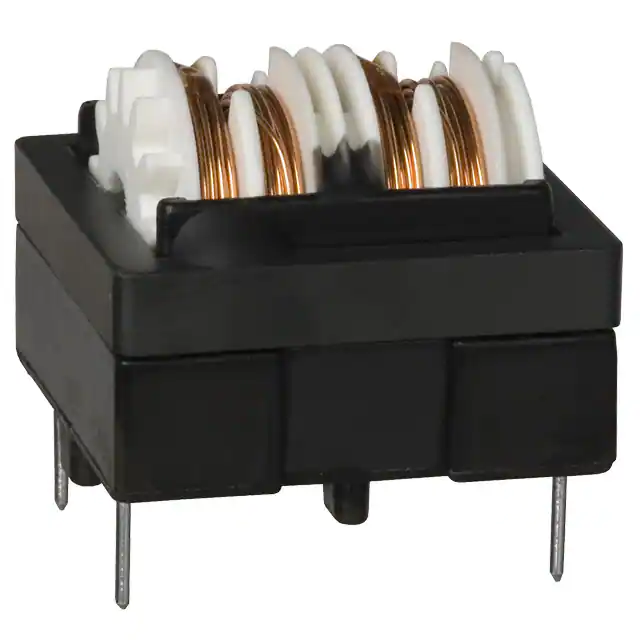

LF2420NP-252 CMC 2.5MH 2A 2LN TH Sumida America Components Inc.	3,277	-	RFQ	Datasheet	Bulk	LF	Active	Power Line	2	-	2.5 mH @ 1 kHz	2A	130mOhm	-	-	-	-	-	-	Through Hole	0.953 L x 0.953 W (24.20mm x 24.20mm)	0.827 (21.00mm)
LF2420NP-352 CMC 3.5MH 1.7A 2LN TH Sumida America Components Inc.	3,227	-	RFQ	Datasheet	Bulk	LF	Active	Power Line	2	-	3.5 mH @ 1 kHz	1.7A	180mOhm	-	-	-	-	-	-	Through Hole	0.953 L x 0.953 W (24.20mm x 24.20mm)	0.827 (21.00mm)
LF2420NP-452 CMC 4.5MH 1.5A 2LN TH Sumida America Components Inc.	2,305	-	RFQ	Datasheet	Bulk	LF	Active	Power Line	2	-	4.5 mH @ 1 kHz	1.5A	210mOhm	-	-	-	-	-	-	Through Hole	0.953 L x 0.953 W (24.20mm x 24.20mm)	0.827 (21.00mm)
LF2420NP-103 CMC 10MH 1A 2LN TH Sumida America Components Inc.	3,844	-	RFQ	Datasheet	Bulk	LF	Active	Power Line	2	-	10 mH @ 1 kHz	1A	470mOhm	-	-	-	-	-	-	Through Hole	0.953 L x 0.953 W (24.20mm x 24.20mm)	0.827 (21.00mm)
LF2420NP-153 CMC 15MH 800MA 2LN TH Sumida America Components Inc.	2,303	-	RFQ	Datasheet	Bulk	LF	Active	Power Line	2	-	15 mH @ 1 kHz	800mA	730mOhm	-	-	-	-	-	-	Through Hole	0.953 L x 0.953 W (24.20mm x 24.20mm)	0.827 (21.00mm)
LF2420NP-203 CMC 20MH 700MA 2LN TH Sumida America Components Inc.	3,986	-	RFQ	Datasheet	Bulk	LF	Active	Power Line	2	-	20 mH @ 1 kHz	700mA	870mOhm	-	-	-	-	-	-	Through Hole	0.953 L x 0.953 W (24.20mm x 24.20mm)	0.827 (21.00mm)
LF2420NP-353 CMC 35MH 600MA 2LN TH Sumida America Components Inc.	3,018	-	RFQ	Datasheet	Bulk	LF	Active	Power Line	2	-	35 mH @ 1 kHz	600mA	1.58Ohm	-	-	-	-	-	-	Through Hole	0.953 L x 0.953 W (24.20mm x 24.20mm)	0.827 (21.00mm)

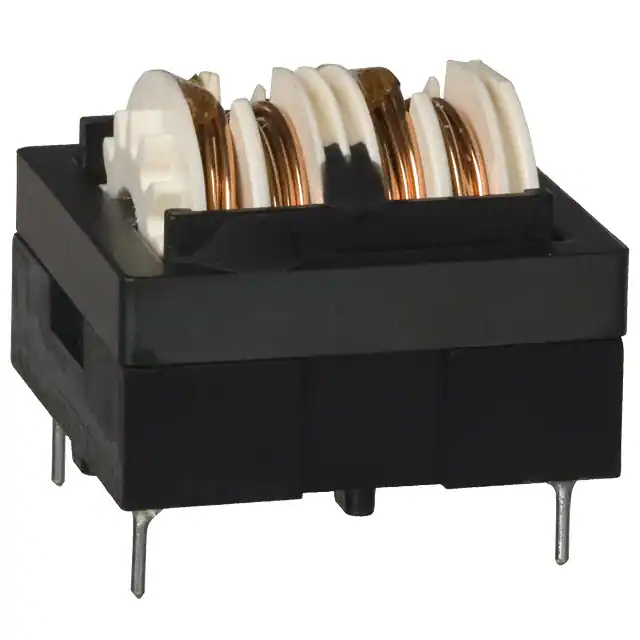

LF2823NP-182 CMC 1.8MH 2.6A 2LN TH Sumida America Components Inc.	2,738	-	RFQ	Datasheet	Bulk	LF	Active	Power Line	2	-	1.8 mH @ 1 kHz	2.6A	72mOhm	-	-	-	-	-	-	Through Hole	1.122 L x 1.122 W (28.50mm x 28.50mm)	0.945 (24.00mm)
LF2823NP-682 CMC 6.8MH 1.6A 2LN TH Sumida America Components Inc.	2,776	-	RFQ	Datasheet	Bulk	LF	Active	Power Line	2	-	6.8 mH @ 1 kHz	1.6A	230mOhm	-	-	-	-	-	-	Through Hole	1.122 L x 1.122 W (28.50mm x 28.50mm)	0.945 (24.00mm)
LF2823NP-123 CMC 12MH 1.2A 2LN TH Sumida America Components Inc.	3,668	-	RFQ	Datasheet	Bulk	LF	Active	Power Line	2	-	12 mH @ 1 kHz	1.2A	380mOhm	-	-	-	-	-	-	Through Hole	1.122 L x 1.122 W (28.50mm x 28.50mm)	0.945 (24.00mm)
LF2823NP-223 CMC 22MH 1A 2LN TH Sumida America Components Inc.	2,009	-	RFQ	Datasheet	Bulk	LF	Active	Power Line	2	-	22 mH @ 1 kHz	1A	650mOhm	-	-	-	-	-	-	Through Hole	1.122 L x 1.122 W (28.50mm x 28.50mm)	0.945 (24.00mm)
LF2823NP-393 CMC 39MH 700MA 2LN TH Sumida America Components Inc.	3,041	-	RFQ	Datasheet	Bulk	LF	Active	Power Line	2	-	39 mH @ 1 kHz	700mA	1.43Ohm	-	-	-	-	-	-	Through Hole	1.122 L x 1.122 W (28.50mm x 28.50mm)	0.945 (24.00mm)
