Current Sense Transformers

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	FrequencyRange	Type	CurrentRating(Amps)	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	CurrentRatio	DCResistance(DCR)	Ratings	MountingType	Size/Dimension	Height-Seated(Max)
CT-50/5 CURRENT TRANSFORMERS Mueller Electric Co	3,022	-	RFQ	Datasheet	Box	CT	Active	400Hz	Non-Invasive (Solid Core)	5 A	-	-	-	50:5	-	-	Free Hanging (In-Line)	3.875 Dia (98.43mm)	1.250 (31.75mm)
CT-1200-F15 CURR SENSE XFMR 1200:5 FOOTED Littelfuse Inc.	3,971	-	RFQ	Datasheet	Bulk	CT	Active	-	Non-Invasive (Solid Core)	1200 A	-	-	-	1200:5	-	-	-	-	-
855-2701/035-001 PLUG-IN CURRENT TRANSFORMER; PRI WAGO Corporation	3,454	-	RFQ	Datasheet	Box	-	Active	50Hz ~ 60Hz	Non-Invasive (Solid Core)	35 A	-	-	-	-	-	-	Chassis Mount	1.063 L x 0.906 W (27.00mm x 23.00mm)	1.823 (46.30mm)
5SHT-102-E CURRENT TRANSFORMER 1000:5 25VA Littelfuse Inc.	3,665	-	RFQ		Bulk	-	Active	-	-	-	-	-	-	-	-	-	-	-	-
170SHT-501-E 500:5 MODEL 170 CT 108 MM(4.25 I Littelfuse Inc.	2,414	-	RFQ		Bulk	CT	Active	50Hz ~ 400Hz	Non-Invasive (Solid Core)	-	-	-	-	500:5	-	-	Chassis Mount	0.265 L x 0.265 W (6.73mm x 6.73mm)	0.120 (3.05mm)
A82-20100 1PH CURR XFMR 4-20MA OUTPUT Carlo Gavazzi Inc.	2,204	-	RFQ	Datasheet	Box	-	Active	40Hz ~ 1kHz	Non-Invasive (Solid Core)	100 A	-	-	-	-	-	-	Chassis Mount	3.740 L x 0.787 W (95.00mm x 20.00mm)	2.657 (67.50mm)
A82-2025 1PH CURR XFMR 4-20MA OUTPUT Carlo Gavazzi Inc.	2,656	-	RFQ	Datasheet	Box	-	Active	40Hz ~ 1kHz	Non-Invasive (Solid Core)	25 A	-	-	-	-	-	-	Chassis Mount	3.740 L x 0.787 W (95.00mm x 20.00mm)	2.657 (67.50mm)
53030C CURR SENSE XFMR 1:30 10A SMD Murata Power Solutions Inc.	2,670	-	RFQ	Datasheet	Tape & Reel (TR)	5300	Active	50kHz ~ 500kHz	Invasive	-	180 µH	-	1:30	-	7mOhm Primary, 850mOhm Secondary	-	Surface Mount	0.283 L x 0.327 W (7.20mm x 8.30mm)	0.213 (5.40mm)
53040C CURR SENSE XFMR 1:40 10A SMD Murata Power Solutions Inc.	3,380	-	RFQ	Datasheet	Tape & Reel (TR)	5300	Active	50kHz ~ 500kHz	Invasive	-	320 µH	-	1:40	-	7mOhm Primary, 1.1Ohm Secondary	-	Surface Mount	0.283 L x 0.327 W (7.20mm x 8.30mm)	0.213 (5.40mm)
53060C CURR SENSE XFMR 1:60 10A SMD Murata Power Solutions Inc.	2,891	-	RFQ	Datasheet	Tape & Reel (TR)	5300	Active	50kHz ~ 500kHz	Invasive	-	720 µH	-	1:60	-	7mOhm Primary, 2.2Ohm Secondary	-	Surface Mount	0.283 L x 0.327 W (7.20mm x 8.30mm)	0.213 (5.40mm)
53070C CURR SENSE XFMR 1:70 10A SMD Murata Power Solutions Inc.	2,315	-	RFQ	Datasheet	Tape & Reel (TR)	5300	Active	50kHz ~ 500kHz	Invasive	-	980 µH	-	1:70	-	7mOhm Primary, 4.5Ohm Secondary	-	Surface Mount	0.283 L x 0.327 W (7.20mm x 8.30mm)	0.213 (5.40mm)
53125C CURR SENSE XFMR 1:125 10A SMD Murata Power Solutions Inc.	2,902	-	RFQ	Datasheet	Tape & Reel (TR)	5300	Active	50kHz ~ 500kHz	Invasive	-	3 mH	-	1:125	-	7mOhm Primary, 7.5Ohm Secondary	-	Surface Mount	0.283 L x 0.327 W (7.20mm x 8.30mm)	0.213 (5.40mm)
53150C CURR SENSE XFMR 1:150 10A SMD Murata Power Solutions Inc.	3,566	-	RFQ	Datasheet	Tape & Reel (TR)	5300	Active	50kHz ~ 500kHz	Invasive	-	4.5 mH	-	1:150	-	7mOhm Primary, 17.5Ohm Secondary	-	Surface Mount	0.283 L x 0.327 W (7.20mm x 8.30mm)	0.213 (5.40mm)

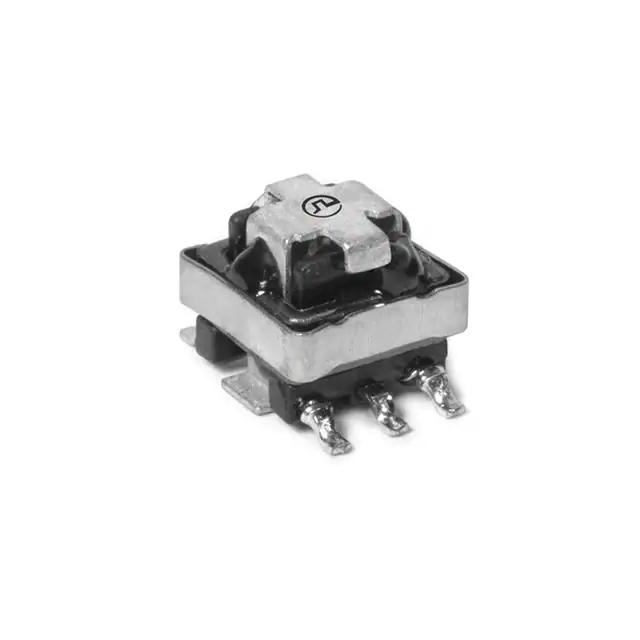

PM2165.100NL XFMR CURRENT SENSE 1:100 T& NPB Pulse Electronics Power	3,125	-	RFQ	Datasheet	Tray	PM2165.XXXNL	Active	20kHz ~ 1MHz	Invasive	20 A	2 mH	-	1:100	-	0.75mOhm Primary, 6Ohm Secondary Max	AEC-Q200	Surface Mount	-	0.217 (5.50mm)

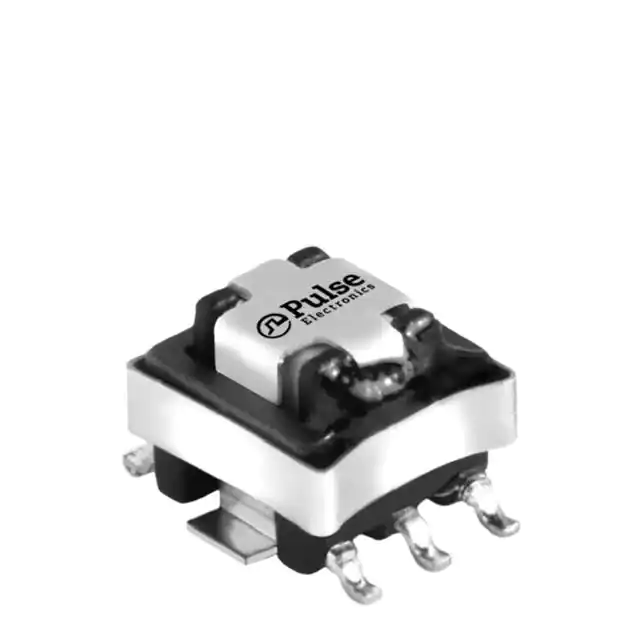

PM8208NL INDUCTOR POWER Pulse Electronics Power	2,927	-	RFQ	Datasheet	Tray	PM820X	Active	50kHz ~ 1MHz	Invasive	10 A	2 mH	-	1:100	-	6mOhm Primary, 5.5Ohm Secondary Max	AEC-Q200	Surface Mount	-	0.217 (5.50mm)
PM2165.020NL XFMR CURRENT SENSE 1:20 T& NPB Pulse Electronics Power	3,257	-	RFQ	Datasheet	Tray	PM2165.XXXNL	Active	20kHz ~ 1MHz	Invasive	20 A	80 µH	-	1:20	-	0.75mOhm Primary, 550mOhm Secondary Max	AEC-Q200	Surface Mount	-	0.217 (5.50mm)
PM2165.125NL XFMR CURRENT SENSE 1:125 T& NPB Pulse Electronics Power	3,506	-	RFQ	Datasheet	Tray	PM2165.XXXNL	Active	20kHz ~ 1MHz	Invasive	20 A	3 mH	-	1:125	-	0.75mOhm Primary, 7.7Ohm Secondary Max	AEC-Q200	Surface Mount	-	0.217 (5.50mm)
PM2165.070NL XFMR CURRENT SENSE 1:70 T& NPB Pulse Electronics Power	3,757	-	RFQ	Datasheet	Tray	PM2165.XXXNL	Active	20kHz ~ 1MHz	Invasive	20 A	980 µH	-	1:70	-	0.75mOhm Primary, 4.75Ohm Secondary Max	AEC-Q200	Surface Mount	-	0.217 (5.50mm)
PM2165.040NL XFMR CURRENT SENSE 1:40 T& NPB Pulse Electronics Power	2,268	-	RFQ	Datasheet	Tray	PM2165.XXXNL	Active	20kHz ~ 1MHz	Invasive	20 A	320 µH	-	1:40	-	0.75mOhm Primary, 1.14Ohm Secondary Max	AEC-Q200	Surface Mount	-	0.217 (5.50mm)
PM2165.050NL XFMR CURRENT SENSE 1:50 T& NPB Pulse Electronics Power	2,070	-	RFQ	Datasheet	Tray	PM2165.XXXNL	Active	20kHz ~ 1MHz	Invasive	20 A	500 µH	-	1:50	-	0.75mOhm Primary, 1.5Ohm Secondary Max	AEC-Q200	Surface Mount	-	0.217 (5.50mm)
