Current Sense Transformers

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	FrequencyRange	Type	CurrentRating(Amps)	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	CurrentRatio	DCResistance(DCR)	Ratings	MountingType	Size/Dimension	Height-Seated(Max)
PL2035NL XFMR CURRENT SENSE 1:50 T& PBC iNRCORE, LLC	3,646	-	RFQ	Datasheet	Tube	-	Active	50kHz ~ 1MHz	Invasive	20 A	500 µH	-	1:50	-	0.75mOhm Primary Max, 1.5Ohm Secondary Max	-	Surface Mount	0.330 L x 0.284 W (8.38mm x 7.21mm)	0.217 (5.50mm)
ACT07-4320 MINI-PRECISION CURRENT TRANSFORM Allied Components International	3,828	-	RFQ	Datasheet	Tray	-	Active	50Hz ~ 60Hz	Non-Invasive (Solid Core)	30 A	-	-	1:2000	2000:1	121Ohm	-	Through Hole	0.925 L x 0.453 W (23.50mm x 11.50mm)	0.984 (25.00mm)
ACT07-4319 MINI-PRECISION CURRENT TRANSFORM Allied Components International	2,486	-	RFQ	Datasheet	Tray	-	Active	50Hz ~ 60Hz	Non-Invasive (Solid Core)	30 A	-	-	1:2500	2500:1	155Ohm	-	Through Hole	0.925 L x 0.453 W (23.50mm x 11.50mm)	0.984 (25.00mm)
PL1961NLT XFM CST-37 CURR SENSE 1:1: PBC iNRCORE, LLC	2,067	-	RFQ	Datasheet	Tape & Reel (TR)	-	Active	-	Invasive	15 A	59.2 mH	-	1:1:200	-	2.3mOhm Primary Max, 4.2Ohm Secondary Max	-	Surface Mount	0.495 L x 0.490 W (12.57mm x 12.45mm)	0.280 (7.11mm)
PL1961T XFM CST-37 CURR SENSE T&R PBC iNRCORE, LLC	3,396	-	RFQ	Datasheet	Tape & Reel (TR)	-	Active	-	Invasive	15 A	59.2 mH	-	1:1:200	-	2.3mOhm Primary Max, 4.2Ohm Secondary Max	-	Surface Mount	0.495 L x 0.490 W (12.57mm x 12.45mm)	0.280 (7.11mm)
PL2264 XFMR CURRENT SENSE 1:100 PBC iNRCORE, LLC	2,778	-	RFQ		Tube	-	Active	-	-	-	-	-	-	-	-	-	-	-	-
PL2264NL XFMR CURRENT SENSE 1:100 PBC iNRCORE, LLC	3,703	-	RFQ		Tube	-	Active	-	-	-	-	-	-	-	-	-	-	-	-
PL1961 XFM CST-37 CURR SENSE 1:1: PBC iNRCORE, LLC	2,179	-	RFQ	Datasheet	Tube	-	Active	-	Invasive	15 A	59.2 mH	-	1:1:200	-	2.3mOhm Primary Max, 4.2Ohm Secondary Max	-	Surface Mount	0.495 L x 0.490 W (12.57mm x 12.45mm)	0.280 (7.11mm)
PL1961NL XFM CST-37 CURR SENSE 1:1: PBC iNRCORE, LLC	3,788	-	RFQ	Datasheet	Tube	-	Active	-	Invasive	15 A	59.2 mH	-	1:1:200	-	2.3mOhm Primary Max, 4.2Ohm Secondary Max	-	Surface Mount	0.495 L x 0.490 W (12.57mm x 12.45mm)	0.280 (7.11mm)
MIKROE-2524 CURR SENSE XFMR 30A IN-LINE MikroElektronika	2,404	-	RFQ	Datasheet	Bulk	-	Active	-	Non-Invasive (Split Core)	30 A	-	-	-	-	-	-	Free Hanging (In-Line)	-	-
USEX1216000000 V KEMET	2,656	-	RFQ		Tray	*	Active	-	-	-	-	-	-	-	-	-	-	-	-

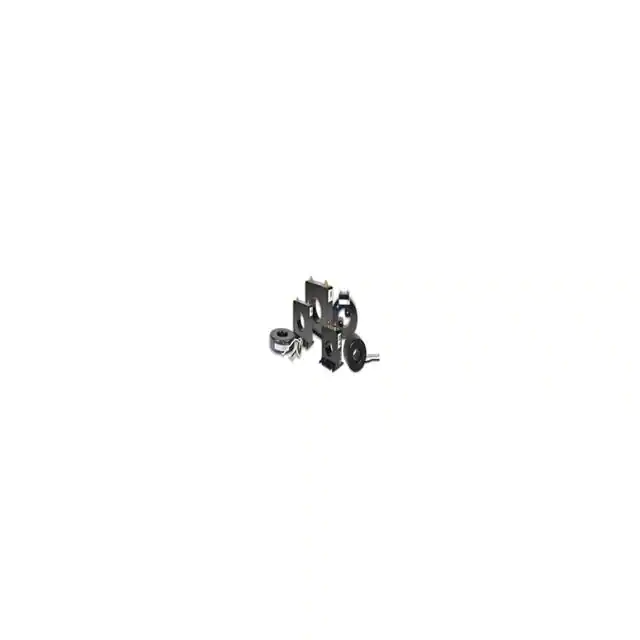

5RL-500 CURR SENSE XFMR SOLID CORE Sifam Tinsley Instrumentation Inc	2,553	-	RFQ	Datasheet	Retail Package	Omega 30	Active	50Hz ~ 400Hz	Non-Invasive (Solid Core)	-	-	-	-	50:5	-	-	-	1.560 Dia (39.62mm)	-
2SFT-250 CURR SENSE XFMR SOLID CORE Sifam Tinsley Instrumentation Inc	2,864	-	RFQ	Datasheet	Retail Package	Omega 30	Active	50Hz ~ 400Hz	Non-Invasive (Solid Core)	-	-	-	-	25:5	-	-	-	1.051 Dia (26.70mm)	-
2RL-250 CURR SENSE XFMR SOLID CORE Sifam Tinsley Instrumentation Inc	2,662	-	RFQ	Datasheet	Retail Package	Omega ANSI	Active	50Hz ~ 400Hz	Non-Invasive (Solid Core)	-	-	-	-	20:5	-	-	-	1.050 Dia (26.67mm)	-
2SFT-401 CURR SENSE XFMR SOLID CORE Sifam Tinsley Instrumentation Inc	2,716	-	RFQ	Datasheet	Retail Package	Omega 30	Active	50Hz ~ 400Hz	Non-Invasive (Solid Core)	-	-	-	-	400:5	-	-	-	1.130 Dia (28.70mm)	-
2RL-401 CURR SENSE XFMR SOLID CORE Sifam Tinsley Instrumentation Inc	3,595	-	RFQ	Datasheet	Retail Package	Omega 30	Active	50Hz ~ 400Hz	Non-Invasive (Solid Core)	-	-	-	-	400:5	-	-	-	1.050 Dia (26.67mm)	-
5RL-122 CURR SENSE XFMR SOLID CORE Sifam Tinsley Instrumentation Inc	3,829	-	RFQ	Datasheet	Retail Package	Omega 30	Active	50Hz ~ 400Hz	Non-Invasive (Solid Core)	-	-	-	-	1200:5	-	-	-	1.560 Dia (39.62mm)	-
A82-1050 1PH CURR XFMR 0-20MA OUTPUT Carlo Gavazzi Inc.	2,069	-	RFQ	Datasheet	Box	-	Active	40Hz ~ 1kHz	Non-Invasive (Solid Core)	50 A	-	-	-	-	-	-	Chassis Mount	3.740 L x 0.787 W (95.00mm x 20.00mm)	2.657 (67.50mm)
A82-10500 1PH CURR XFMR 0-20MA OUTPUT Carlo Gavazzi Inc.	2,377	-	RFQ	Datasheet	Box	-	Active	40Hz ~ 1kHz	Non-Invasive (Solid Core)	500 A	-	-	-	-	-	-	Chassis Mount	3.740 L x 0.787 W (95.00mm x 20.00mm)	2.657 (67.50mm)
CTG050 CORE BALANCE TRANSFORM 050MM Carlo Gavazzi Inc.	3,676	-	RFQ	Datasheet	Box	CTG	Active	-	-	-	-	-	-	-	-	-	Surface Mount	-	-
