Diodes - Rectifiers - Arrays

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	DiodeConfiguration	DiodeType	Voltage-DCReverse(Vr)(Max)	Current-AverageRectified(Io)(perDiode)	Voltage-Forward(Vf)(Max)@If	Speed	ReverseRecoveryTime(trr)	Current-ReverseLeakage@Vr	OperatingTemperature-Junction	MountingType
GB2X50MPS12-227 SIC DIODE 1200V 100A SOT-227 GeneSiC Semiconductor	654	-	RFQ	Datasheet	Tube	SiC Schottky MPS™	Active	2 Independent	Silicon Carbide Schottky	1200 V	93A (DC)	1.8 V @ 50 A	No Recovery Time > 500mA (Io)	0 ns	40 µA @ 1200 V	-55°C ~ 175°C	Chassis Mount

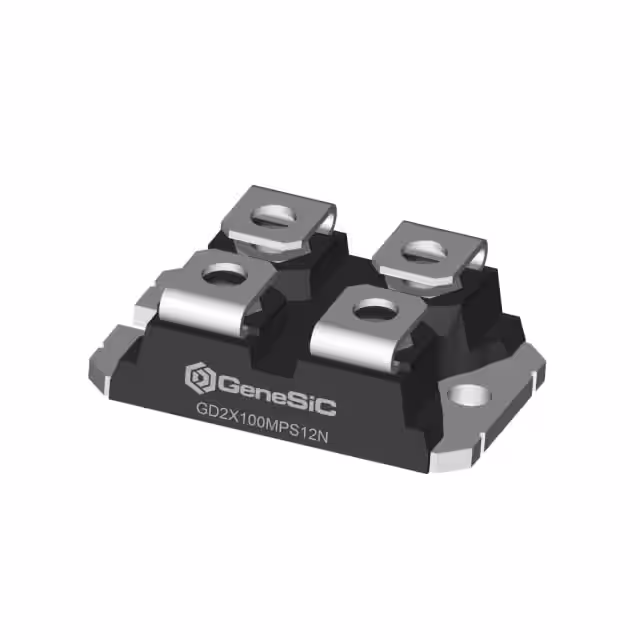

GD2X100MPS12N 1200V 200A SOT-227 SIC SCHOTTKY GeneSiC Semiconductor	3,053	-	RFQ	Datasheet	Tube	MSP	Active	2 Independent	Silicon Carbide Schottky	1200 V	136A (DC)	1.8 V @ 100 A	No Recovery Time > 500mA (Io)	0 ns	25 µA @ 1200 V	-55°C ~ 175°C	Chassis Mount
GB2X50MPS17-227 DIODE MOD SCHOTTKY 1700V SOT227 GeneSiC Semiconductor	2,232	-	RFQ	Datasheet	Tube	SiC Schottky MPS™	Active	2 Independent	Silicon Carbide Schottky	1700 V	136A (DC)	1.8 V @ 50 A	No Recovery Time > 500mA (Io)	0 ns	50 µA @ 1700 V	-55°C ~ 175°C	Chassis Mount

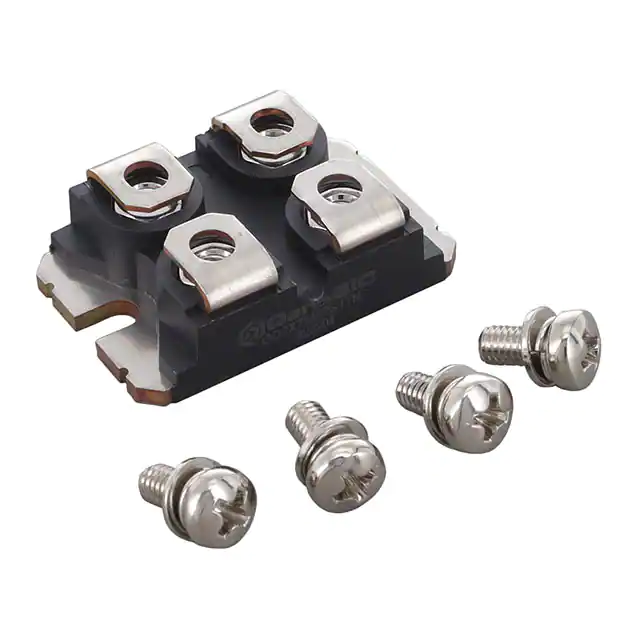

GD2X75MPS17N 1700V 150A SOT-227 SIC SCHOTTKY GeneSiC Semiconductor	109	-	RFQ	Datasheet	Tube	SiC Schottky MPS™	Active	2 Independent	Silicon Carbide Schottky	1700 V	115A (DC)	-	No Recovery Time > 500mA (Io)	-	-	-55°C ~ 175°C	Chassis Mount
APTDF400KK120G DIODE MODULE 1.2KV 470A SP6 Microchip Technology	162	-	RFQ	Datasheet	Bulk	-	Active	1 Pair Common Cathode	Standard	1200 V	470A	3 V @ 400 A	Fast Recovery =< 500ns, > 200mA (Io)	385 ns	250 µA @ 1200 V	-	Chassis Mount
DD89N16KHPSA1 DIODE MODULE GP 1600V 89A Infineon Technologies	3,074	-	RFQ	Datasheet	Tray	-	Active	1 Pair Common Cathode	Standard	1600 V	89A	1.5 V @ 300 A	Standard Recovery >500ns, > 200mA (Io)	-	20 mA @ 1600 V	-40°C ~ 150°C	Chassis Mount
ND411635 DIODE MODULE DUAL Powerex Inc.	3,874	-	RFQ	Datasheet	Bulk	-	Active	1 Pair Series Connection	Standard	1600 V	350A	1.2 V @ 1000 A	Standard Recovery >500ns, > 200mA (Io)	10 µs	30 mA @ 1600 V	-40°C ~ 150°C	Chassis Mount
BAW56,235 DIODE ARRAY GP 90V 215MA SOT23 Nexperia USA Inc.	3,994	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q101	Active	1 Pair Common Anode	Standard	90 V	215mA (DC)	1.25 V @ 150 mA	Fast Recovery =< 500ns, > 200mA (Io)	4 ns	500 nA @ 80 V	150°C (Max)	Surface Mount
BAV99_R1_00001 SOT-23, SWITCHING Panjit International Inc.	2,153	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	1 Pair Series Connection	Standard	75 V	150mA	1.25 V @ 150 mA	Small Signal =< 200mA (Io), Any Speed	4 ns	2.5 µA @ 75 V	-55°C ~ 150°C	Surface Mount
BAW56,215 DIODE ARRAY GP 90V 215MA SOT23 Nexperia USA Inc.	2,782	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q101	Active	1 Pair Common Anode	Standard	90 V	215mA (DC)	1.25 V @ 150 mA	Fast Recovery =< 500ns, > 200mA (Io)	4 ns	500 nA @ 80 V	150°C (Max)	Surface Mount
BAW56WT1G DIODE ARRAY GP 70V 200MA SC70-3 onsemi	3,451	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	1 Pair Common Anode	Standard	70 V	200mA (DC)	1.25 V @ 150 mA	Small Signal =< 200mA (Io), Any Speed	6 ns	2.5 µA @ 70 V	-55°C ~ 150°C	Surface Mount
BAW56LT1G DIODE ARRAY GP 70V 200MA SOT23-3 onsemi	2,910	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	1 Pair Common Anode	Standard	70 V	200mA (DC)	1.25 V @ 150 mA	Small Signal =< 200mA (Io), Any Speed	6 ns	2.5 µA @ 70 V	-55°C ~ 150°C	Surface Mount
BAV99-E3-18 DIODE ARRAY GP 70V 150MA SOT23 Vishay General Semiconductor - Diodes Division	2,196	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	1 Pair Series Connection	Standard	70 V	150mA	1.25 V @ 150 mA	Small Signal =< 200mA (Io), Any Speed	6 ns	2.5 µA @ 70 V	-55°C ~ 150°C	Surface Mount
BAT54S_R1_00001 SOT-23, SKY Panjit International Inc.	2,250	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	1 Pair Series Connection	Schottky	30 V	200mA	600 mV @ 100 mA	Small Signal =< 200mA (Io), Any Speed	-	2 µA @ 25 V	-55°C ~ 125°C	Surface Mount
BAV74,215 DIODE ARRAY GP 50V 215MA SOT23 Nexperia USA Inc.	2,663	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	1 Pair Common Cathode	Standard	50 V	215mA (DC)	1 V @ 100 mA	Fast Recovery =< 500ns, > 200mA (Io)	4 ns	100 nA @ 50 V	150°C (Max)	Surface Mount
MMBD7000_R1_00001 SOT-23, SWITCHING Panjit International Inc.	2,565	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	1 Pair Series Connection	Standard	100 V	200mA (DC)	1.1 V @ 100 mA	Small Signal =< 200mA (Io), Any Speed	4 ns	3 µA @ 100 V	-55°C ~ 150°C	Surface Mount
BAV199_R1_00001 SOT-23, SWITCHING Panjit International Inc.	2,834	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	1 Pair Series Connection	Standard	75 V	200mA (DC)	1.25 V @ 150 mA	Small Signal =< 200mA (Io), Any Speed	3 µs	5 nA @ 75 V	-55°C ~ 150°C	Surface Mount
BAV99W_R1_00001 SOT-323, SWITCHING Panjit International Inc.	2,477	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	1 Pair Series Connection	Standard	75 V	150mA	1.25 V @ 150 mA	Small Signal =< 200mA (Io), Any Speed	4 ns	2.5 µA @ 75 V	-55°C ~ 150°C	Surface Mount
BAT54C_R1_00001 SOT-23, SKY Panjit International Inc.	3,881	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	1 Pair Common Cathode	Schottky	30 V	200mA	600 mV @ 100 mA	Small Signal =< 200mA (Io), Any Speed	-	2 µA @ 25 V	-55°C ~ 125°C	Surface Mount
BAS40S_R1_00001 SOT-23, SKY Panjit International Inc.	3,974	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	1 Pair Series Connection	Schottky	40 V	200mA	1 V @ 40 mA	Small Signal =< 200mA (Io), Any Speed	-	1 µA @ 25 V	-55°C ~ 150°C	Surface Mount
