Diodes - Rectifiers - Arrays

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	DiodeConfiguration	DiodeType	Voltage-DCReverse(Vr)(Max)	Current-AverageRectified(Io)(perDiode)	Voltage-Forward(Vf)(Max)@If	Speed	ReverseRecoveryTime(trr)	Current-ReverseLeakage@Vr	OperatingTemperature-Junction	MountingType
MBR20100CT DIODE ARRAY SCHOTTKY 100V TO220 onsemi	3,057	-	RFQ	Datasheet	Tube,Tube	SWITCHMODE™	Obsolete	1 Pair Common Cathode	Schottky	100 V	10A	850 mV @ 10 A	Fast Recovery =< 500ns, > 200mA (Io)	-	100 µA @ 100 V	-65°C ~ 150°C	Through Hole
MBR6045WT DIODE ARRAY SCHOTTKY 45V TO247 onsemi	3,640	-	RFQ	Datasheet	Tube	SWITCHMODE™	Obsolete	1 Pair Common Cathode	Schottky	45 V	30A	620 mV @ 30 A	Fast Recovery =< 500ns, > 200mA (Io)	-	1 mA @ 45 V	-65°C ~ 175°C	Through Hole
MUR1620CT DIODE ARRAY GP 200V 8A TO220AB onsemi	3,026	-	RFQ	Datasheet	Tube	SWITCHMODE™	Obsolete	1 Pair Common Cathode	Standard	200 V	8A	975 mV @ 8 A	Fast Recovery =< 500ns, > 200mA (Io)	35 ns	5 µA @ 200 V	-65°C ~ 175°C	Through Hole
MBRF2545CT DIODE ARRAY SCHOTTKY 45V TO220FP onsemi	3,438	-	RFQ	Datasheet	Tube,Tube	SWITCHMODE™	Obsolete	1 Pair Common Cathode	Schottky	45 V	12.5A	700 mV @ 12.5 A	Fast Recovery =< 500ns, > 200mA (Io)	-	200 µA @ 45 V	-65°C ~ 175°C	Through Hole

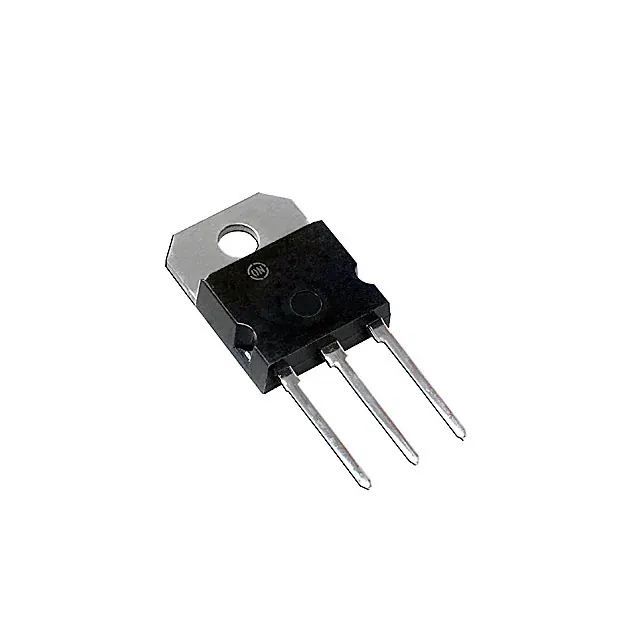

MUR3020PT DIODE ARRAY GP 200V 15A SOT93 onsemi	2,213	-	RFQ	Datasheet	Tube	SWITCHMODE™	Obsolete	1 Pair Common Cathode	Standard	200 V	15A	1.05 V @ 15 A	Fast Recovery =< 500ns, > 200mA (Io)	35 ns	10 µA @ 200 V	-65°C ~ 175°C	Through Hole
1SS383T1G DIODE ARRAY SCHOTTKY 40V SC82 onsemi	2,059	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT),Bulk	-	Obsolete	2 Independent	Schottky	40 V	300mA (DC)	600 mV @ 100 mA	Fast Recovery =< 500ns, > 200mA (Io)	-	5 µA @ 40 V	-55°C ~ 150°C	Surface Mount
BAS16DXV6T1 DIODE ARRAY GP 75V 200MA SOT563 onsemi	3,985	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT),Bulk	-	Obsolete	2 Independent	Standard	75 V	200mA (DC)	1.25 V @ 150 mA	Small Signal =< 200mA (Io), Any Speed	6 ns	1 µA @ 75 V	-55°C ~ 150°C	Surface Mount
BAV70DXV6T1 DIODE ARRAY GP 100V 200MA SOT563 onsemi	3,285	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Obsolete	2 Pair Common Cathode	Standard	100 V	200mA (DC)	1.25 V @ 150 mA	Small Signal =< 200mA (Io), Any Speed	6 ns	2.5 µA @ 70 V	-55°C ~ 150°C	Surface Mount
MURB1660CTT4 DIODE ARRAY GP 600V 8A D2PAK onsemi	2,469	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	SWITCHMODE™	Obsolete	1 Pair Common Cathode	Standard	600 V	8A	1.5 V @ 8 A	Fast Recovery =< 500ns, > 200mA (Io)	60 ns	10 µA @ 600 V	-65°C ~ 175°C	Surface Mount
MURHB860CTT4 DIODE ARRAY GP 600V 4A D2PAK onsemi	2,492	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	MEGAHERTZ™	Obsolete	1 Pair Common Cathode	Standard	600 V	4A	2.8 V @ 4 A	Fast Recovery =< 500ns, > 200mA (Io)	35 ns	10 µA @ 600 V	-65°C ~ 175°C	Surface Mount
MUR3060PT DIODE ARRAY GP 600V 15A SOT93 onsemi	3,054	-	RFQ	Datasheet	Tube	SWITCHMODE™	Obsolete	1 Pair Common Cathode	Standard	600 V	15A	1.5 V @ 15 A	Fast Recovery =< 500ns, > 200mA (Io)	60 ns	10 µA @ 600 V	-65°C ~ 175°C	Through Hole
MUR3040PT DIODE ARRAY GP 400V 15A SOT93 onsemi	3,792	-	RFQ	Datasheet	Tube,Tube	SWITCHMODE™	Obsolete	1 Pair Common Cathode	Standard	400 V	15A	1.25 V @ 15 A	Fast Recovery =< 500ns, > 200mA (Io)	60 ns	10 µA @ 400 V	-65°C ~ 175°C	Through Hole
MUR3020WT DIODE ARRAY GP 200V 15A TO247 onsemi	3,798	-	RFQ	Datasheet	Tube,Tube	SWITCHMODE™	Obsolete	1 Pair Common Cathode	Standard	200 V	15A	1.05 V @ 15 A	Fast Recovery =< 500ns, > 200mA (Io)	35 ns	10 µA @ 200 V	-65°C ~ 175°C	Through Hole
NSDEMN11XV6T5 DIODE ARRAY GP 80V 100MA SOT563 onsemi	3,978	-	RFQ	Datasheet	Tape & Reel (TR),Bulk	-	Obsolete	2 Pair Common Cathode	Standard	80 V	100mA (DC)	1.2 V @ 100 mA	Small Signal =< 200mA (Io), Any Speed	4 ns	100 nA @ 70 V	-55°C ~ 150°C	Surface Mount
NSR15SDW1T1 DIODE ARRAY SCHOTTKY 15V SC88 onsemi	3,589	-	RFQ	Datasheet	Tape & Reel (TR)	-	Obsolete	2 Independent	Schottky	15 V	30mA (DC)	680 mV @ 10 mA	Small Signal =< 200mA (Io), Any Speed	-	50 nA @ 1 V	-65°C ~ 150°C	Surface Mount
BAS16DXV6T5 DIODE ARRAY GP 75V 200MA SOT563 onsemi	3,716	-	RFQ	Datasheet	Tape & Reel (TR),Bulk	-	Obsolete	2 Independent	Standard	75 V	200mA (DC)	1.25 V @ 150 mA	Small Signal =< 200mA (Io), Any Speed	6 ns	1 µA @ 75 V	-55°C ~ 150°C	Surface Mount
BAS21SLT1 DIODE ARRAY GP 250V 225MA SOT23 onsemi	3,431	-	RFQ	Datasheet	Tape & Reel (TR)	-	Obsolete	1 Pair Series Connection	Standard	250 V	225mA (DC)	1.25 V @ 200 mA	Fast Recovery =< 500ns, > 200mA (Io)	50 ns	100 nA @ 200 V	-55°C ~ 150°C	Surface Mount
BAT54CLT1 DIODE SCHOTTKY DUAL 30V CC SOT23 onsemi	2,643	-	RFQ	Datasheet	Bulk	-	Obsolete	1 Pair Common Cathode	Schottky	30 V	200mA (DC)	800 mV @ 100 mA	Small Signal =< 200mA (Io), Any Speed	5 ns	2 µA @ 25 V	-55°C ~ 150°C	Surface Mount
BAV70DXV6T5 DIODE ARRAY GP 100V 200MA SOT563 onsemi	2,067	-	RFQ	Datasheet	Tape & Reel (TR),Bulk	-	Obsolete	2 Pair Common Cathode	Standard	100 V	200mA (DC)	1.25 V @ 150 mA	Small Signal =< 200mA (Io), Any Speed	6 ns	2.5 µA @ 70 V	-55°C ~ 150°C	Surface Mount
M1MA152WAT1 DIODE ARRAY GP 80V 100MA SC59 onsemi	2,408	-	RFQ	Datasheet	Tape & Reel (TR),Bulk	-	Obsolete	1 Pair Common Anode	Standard	80 V	100mA (DC)	1.2 V @ 100 mA	Small Signal =< 200mA (Io), Any Speed	10 ns	100 nA @ 75 V	150°C (Max)	Surface Mount
