Diodes-Rectifiers-Single

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	RoHS	Speed	Diode Type	Part Status	Mounting Type	Capacitance @ Vr, F	Reverse Recovery Time (trr)	Current - Reverse Leakage @ Vr	Voltage - DC Reverse (Vr) (Max)	Current - Average Rectified (Io)	Operating Temperature	Voltage - Forward (Vf) (Max) @ If
SCS215AJHRTLL DIODE SCHOTTKY 650V 15A TO263AB Rohm Semiconductor	2,313	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q101	RoHS	No Recovery Time > 500mA (Io)	Silicon Carbide Schottky	Not For New Designs	Surface Mount	550pF @ 1V, 1MHz	0 ns	300 µA @ 600 V	650 V	15A (DC)	175°C (Max)	1.55 V @ 15 A
SCS320AHGC9 SHORTER RECOVERY TIME, ENABLING Rohm Semiconductor	1,935	-	RFQ	Datasheet	Tube		RoHS	No Recovery Time > 500mA (Io)	Silicon Carbide Schottky	Active	Through Hole	1000pF @ 1V, 1MHz	0 ns	100 µA @ 650 V	650 V	20A (DC)	175°C (Max)	-
RB168MM-40TR DIODE SCHOTTKY 40V 1A PMDU Rohm Semiconductor	3,000	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Schottky	Active	Surface Mount	-	-	550 nA @ 40 V	40 V	1A	150°C (Max)	650 mV @ 1 A
RB168VYM150FHTR SCHOTTKY BARRIER DIODE (AEC-Q101 Rohm Semiconductor	14,716	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q101	RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Schottky	Active	Surface Mount	-	4.8 ns	1 µA @ 150 V	150 V	1A	150°C (Max)	890 mV @ 1 A
SCS112AGC DIODE SCHOTTKY 600V 12A TO220AC Rohm Semiconductor	2,512	-	RFQ	Datasheet	Tube		RoHS	No Recovery Time > 500mA (Io)	Silicon Carbide Schottky	Obsolete	Through Hole	516pF @ 1V, 1MHz	0 ns	240 µA @ 600 V	600 V	12A	175°C (Max)	1.7 V @ 12 A
SCS208AGC DIODE SCHOTTKY 650V 8A TO220AC Rohm Semiconductor	3,532	-	RFQ	Datasheet	Tube		RoHS	No Recovery Time > 500mA (Io)	Silicon Carbide Schottky	Obsolete	Through Hole	291pF @ 1V, 1MHz	0 ns	160 µA @ 600 V	650 V	8A (DC)	175°C (Max)	1.55 V @ 8 A
RFN2LAM4STFTR RFN2LAM4STF IS THE HIGH RELIABIL Rohm Semiconductor	3,000	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q101	RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Standard	Active	Surface Mount	-	30 ns	1 µA @ 400 V	400 V	1.5A	150°C (Max)	1.2 V @ 1.5 A
RB510SM-40T2R RB510SM-40 IS LOW VF Rohm Semiconductor	13,500	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)		RoHS	Small Signal =< 200mA (Io), Any Speed	Schottky	Active	Surface Mount	-	-	2 µA @ 40 V	40 V	100mA	150°C (Max)	480 mV @ 10 mA
SCS212AGC DIODE SCHOTTKY 650V 12A TO220AC Rohm Semiconductor	2,473	-	RFQ	Datasheet	Tube		RoHS	No Recovery Time > 500mA (Io)	Silicon Carbide Schottky	Obsolete	Through Hole	438pF @ 1V, 1MHz	0 ns	240 µA @ 600 V	650 V	12A (DC)	175°C (Max)	1.55 V @ 12 A
SCS210AGC DIODE SCHOTTKY 650V 10A TO220AC Rohm Semiconductor	2,033	-	RFQ	Datasheet	Tube		RoHS	No Recovery Time > 500mA (Io)	Silicon Carbide Schottky	Obsolete	Through Hole	365pF @ 1V, 1MHz	0 ns	200 µA @ 600 V	650 V	10A (DC)	175°C (Max)	1.55 V @ 10 A
SCS205KGC DIODE SCHOTTKY 1.2KV 5A TO220AC Rohm Semiconductor	2,968	-	RFQ	Datasheet	Tube		RoHS	No Recovery Time > 500mA (Io)	Silicon Carbide Schottky	Obsolete	Through Hole	270pF @ 1V, 1MHz	0 ns	100 µA @ 1200 V	1200 V	5A (DC)	175°C (Max)	1.6 V @ 5 A
SCS215KGC DIODE SCHOTTKY 1.2KV 15A TO220AC Rohm Semiconductor	3,127	-	RFQ	Datasheet	Tube		RoHS	No Recovery Time > 500mA (Io)	Silicon Carbide Schottky	Obsolete	Through Hole	790pF @ 1V, 1MHz	0 ns	300 µA @ 1200 V	1200 V	15A (DC)	175°C (Max)	1.6 V @ 15 A
SCS210KE2C DIODE SCHOTTKY 1200V 10A TO247 Rohm Semiconductor	3,569	-	RFQ	Datasheet	Tube		RoHS	No Recovery Time > 500mA (Io)	Silicon Carbide Schottky	Obsolete	Through Hole	-	0 ns	-	1200 V	10A (DC)	175°C (Max)	-
SCS105KGC DIODE SCHOTTKY 1.2KV 5A TO220AC Rohm Semiconductor	2,145	-	RFQ	Datasheet	Tube		RoHS	No Recovery Time > 500mA (Io)	Silicon Carbide Schottky	Obsolete	Through Hole	325pF @ 1V, 1MHz	0 ns	100 µA @ 1200 V	1200 V	5A (DC)	175°C (Max)	1.75 V @ 5 A

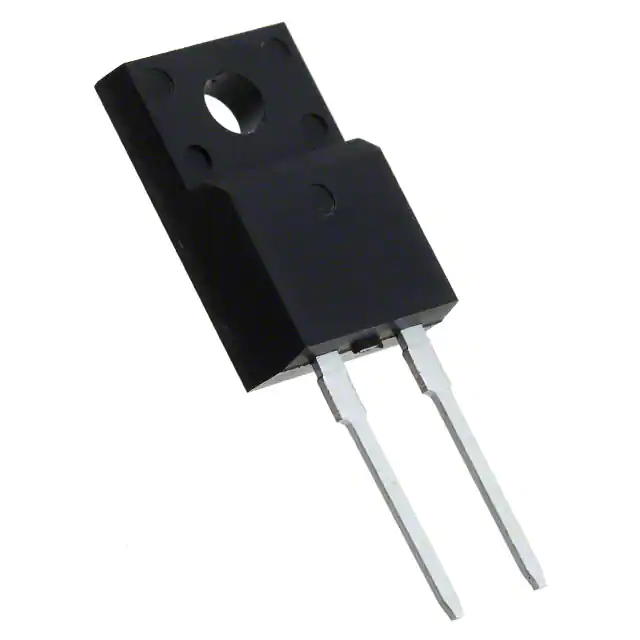

SCS110AMC DIODE SCHOTTKY 600V 10A TO220FM Rohm Semiconductor	2,518	-	RFQ	Datasheet	Tube		RoHS	No Recovery Time > 500mA (Io)	Silicon Carbide Schottky	Obsolete	Through Hole	430pF @ 1V, 1MHz	0 ns	200 µA @ 600 V	600 V	10A (DC)	150°C (Max)	1.7 V @ 10 A
SCS110KGC DIODE SCHOTTKY 1.2KV 10A TO220AC Rohm Semiconductor	3,506	-	RFQ	Datasheet	Tube		RoHS	No Recovery Time > 500mA (Io)	Silicon Carbide Schottky	Obsolete	Through Hole	650pF @ 1V, 1MHz	0 ns	200 µA @ 1200 V	1200 V	10A (DC)	175°C (Max)	1.75 V @ 10 A
SCS120KGC DIODE SCHOTTKY 1.2KV 20A TO220AC Rohm Semiconductor	2,491	-	RFQ	Datasheet	Tube		RoHS	No Recovery Time > 500mA (Io)	Silicon Carbide Schottky	Active	Through Hole	1300pF @ 1V, 1MHz	0 ns	400 µA @ 1200 V	1200 V	20A	175°C (Max)	1.75 V @ 20 A
SCS215AGC DIODE SCHOTTKY 650V 15A TO220AC Rohm Semiconductor	2,698	-	RFQ	Datasheet	Tube		RoHS	No Recovery Time > 500mA (Io)	Silicon Carbide Schottky	Obsolete	Through Hole	550pF @ 1V, 1MHz	0 ns	300 µA @ 600 V	650 V	15A	175°C (Max)	1.55 V @ 15 A
SCS215AMC DIODE SCHOTTKY 650V 12A TO220FM Rohm Semiconductor	2,979	-	RFQ	Datasheet	Tube		RoHS	No Recovery Time > 500mA (Io)	Silicon Carbide Schottky	Active	Through Hole	438pF @ 1V, 1MHz	0 ns	240 µA @ 600 V	650 V	12A	175°C (Max)	1.55 V @ 12 A
RB088LAM100TFTR AUTOMOTIVE SCHOTTKY BARRIER DIOD Rohm Semiconductor	3,000	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q101	RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Schottky	Active	Surface Mount	-	-	3 µA @ 100 V	100 V	5A	150°C (Max)	-
