Diodes - RF

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	ProductStatus	DiodeType	Voltage-PeakReverse(Max)	Current-Max	Capacitance@VrF	Resistance@IfF	PowerDissipation(Max)	OperatingTemperature
BAP64-06W,115 RF DIODE PIN 100V 240MW SOT323-3 NXP USA Inc.	2,639	-	RFQ	Datasheet	-	Obsolete	PIN - 1 Pair Common Anode	100V	100 mA	0.35pF @ 20V, 1MHz	1.35Ohm @ 100mA, 100MHz	240 mW	-65°C ~ 150°C (TJ)
BAP64-04,215 RF DIODE PIN 175V 250MW TO236AB NXP USA Inc.	3,851	-	RFQ	Datasheet	-	Obsolete	PIN - 1 Pair Series Connection	175V	100 mA	0.35pF @ 20V, 1MHz	1.35Ohm @ 100mA, 100MHz	250 mW	-65°C ~ 150°C (TJ)
BAP50LX,315 RF DIODE PIN 50V 150MW SOD2 NXP USA Inc.	2,630	-	RFQ	Datasheet	-	Obsolete	PIN - Single	50V	50 mA	0.35pF @ 5V, 1MHz	3Ohm @ 10mA, 100MHz	150 mW	-65°C ~ 150°C (TJ)
BAP50-04W,115 RF DIODE PIN 50V 240MW SOT323-3 NXP USA Inc.	250	-	RFQ	Datasheet	-	Obsolete	PIN - 1 Pair Series Connection	50V	50 mA	0.5pF @ 5V, 1MHz	5Ohm @ 10mA, 100MHz	240 mW	-65°C ~ 150°C (TJ)
BAP64-03,115 RF DIODE PIN 175V 500MW SOD323 NXP USA Inc.	2,965	-	RFQ	Datasheet	-	Active	PIN - Single	175V	100 mA	0.35pF @ 20V, 1MHz	1.35Ohm @ 100mA, 100MHz	500 mW	-65°C ~ 150°C (TJ)

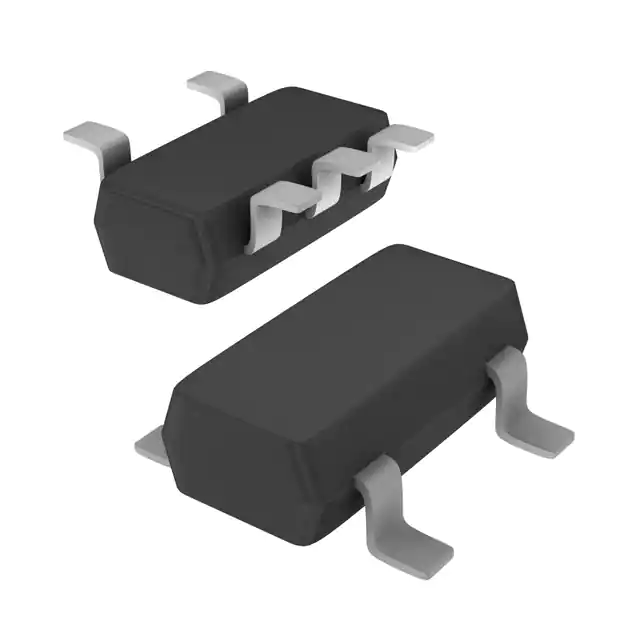

BAP70Q,125 RF DIODE PIN 50V 125MW 5TSOP NXP USA Inc.	2,648	-	RFQ	Datasheet	-	Active	PIN - 2 Pair CA + CC	50V	100 mA	0.3pF @ 20V, 1MHz	1.9Ohm @ 100mA, 100MHz	125 mW	-65°C ~ 150°C (TJ)
BAP64Q,125 RF DIODE PIN 100V 125MW 5TSOP NXP USA Inc.	3,217	-	RFQ	Datasheet	-	Active	PIN - 2 Pair CA + CC	100V	100 mA	0.35pF @ 20V, 1MHz	1.35Ohm @ 100mA, 100MHz	125 mW	-65°C ~ 150°C (TJ)
BA278115 DIODE BAND-SWITCHING 35V SOD523 NXP USA Inc.	3,075	-	RFQ	Datasheet	-	Active	Standard - Single	35V	100 mA	1.2pF @ 6V, 1MHz	700mOhm @ 2mA, 100MHz	715 mW	-65°C ~ 150°C (TJ)
BA891,115 DIODE STANDARD 35V 715MW SOD523 NXP USA Inc.	3,367	-	RFQ	Datasheet	-	Active	Standard - Single	35V	100 mA	0.9pF @ 3V, 1MHz	500mOhm @ 10mA, 100MHz	715 mW	-65°C ~ 150°C (TJ)
BA591,115 BAND-SWITCHING DIODE NXP USA Inc.	2,352	-	RFQ		*	Active	-	-	-	-	-	-	-
BAP51LX,315 RF DIODE PIN 60V 140MW SOD2 NXP USA Inc.	3,025	-	RFQ	Datasheet	-	Active	PIN - Single	60V	100 mA	0.3pF @ 5V, 1MHz	1.5Ohm @ 100mA, 100MHz	140 mW	-65°C ~ 150°C (TJ)
BAP64-05W,115 RF DIODE PIN 100V 240MW SOT323 NXP USA Inc.	2,226	-	RFQ	Datasheet	-	Active	PIN - 1 Pair Common Cathode	100V	100 mA	0.35pF @ 20V, 1MHz	1.35Ohm @ 100mA, 100MHz	240 mW	-65°C ~ 150°C (TJ)
BAP64LX,315 RF DIODE PIN 60V 150MW SOD2 NXP USA Inc.	2,069	-	RFQ	Datasheet	-	Active	PIN - Single	60V	100 mA	0.3pF @ 20V, 1MHz	1.5Ohm @ 100mA, 100MHz	150 mW	-65°C ~ 150°C (TJ)
BAP51-02,315 RF DIODE PIN 60V 715MW SOD523 NXP USA Inc.	3,267	-	RFQ	Datasheet	-	Active	PIN - Single	60V	50 mA	0.35pF @ 5V, 1MHz	-	715 mW	-65°C ~ 150°C (TJ)
BAP64-05W,135 RF DIODE PIN 100V 240MW SOT323-3 NXP USA Inc.	2,131	-	RFQ	Datasheet	-	Active	PIN - 1 Pair Common Cathode	100V	100 mA	0.35pF @ 20V, 1MHz	1.35Ohm @ 100mA, 100MHz	240 mW	-65°C ~ 150°C (TJ)
BAP70-05,215 RF DIODE PIN 50V 250MW TO236AB NXP USA Inc.	2,855	-	RFQ	Datasheet	-	Active	PIN - 1 Pair Common Cathode	50V	100 mA	0.3pF @ 20V, 1MHz	1.9Ohm @ 100mA, 100MHz	250 mW	-65°C ~ 150°C (TJ)
BAP50-05W,115 PIN DIODE, 50V NXP USA Inc.	2,618	-	RFQ	Datasheet	*	Active	-	-	-	-	-	-	-
BAP1321-02,115 RF DIODE PIN 60V 715MW SOD523 NXP USA Inc.	3,850	-	RFQ	Datasheet	-	Obsolete	PIN - Single	60V	100 mA	0.32pF @ 20V, 1MHz	1.3Ohm @ 100mA, 100MHz	715 mW	-65°C ~ 150°C (TJ)
BA277,115 DIODE STANDARD 35V 715MW SOD523 NXP USA Inc.	2,848	-	RFQ	Datasheet	-	Obsolete	Standard - Single	35V	100 mA	1.2pF @ 6V, 1MHz	-	715 mW	-65°C ~ 150°C (TJ)
BA278,115 DIODE STANDARD 35V 715MW SOD523 NXP USA Inc.	3,058	-	RFQ	Datasheet	-	Obsolete	Standard - Single	35V	100 mA	1.2pF @ 6V, 1MHz	700mOhm @ 2mA, 100MHz	715 mW	-65°C ~ 150°C (TJ)
