Ferrite Cores

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
5961007403 FERRITE TOROIDS / FERRITE RINGS Fair-Rite Products Corp.	3,335	-	RFQ		Bulk	*	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

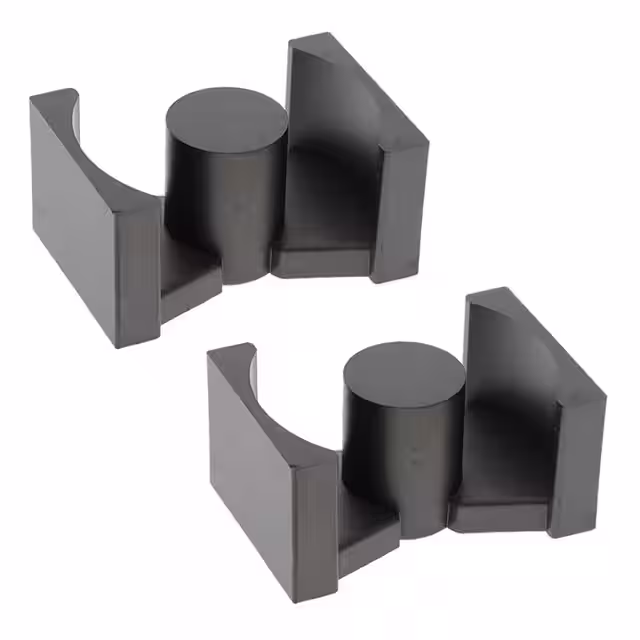

6695404121 95 PQ CORE SET Fair-Rite Products Corp.	3,558	-	RFQ	Datasheet	Bulk	-	Active	PQ	-	95	-	-	±25%	Ungapped	-	3000	52.3	103.6	198	170	20500	Uncoated	-

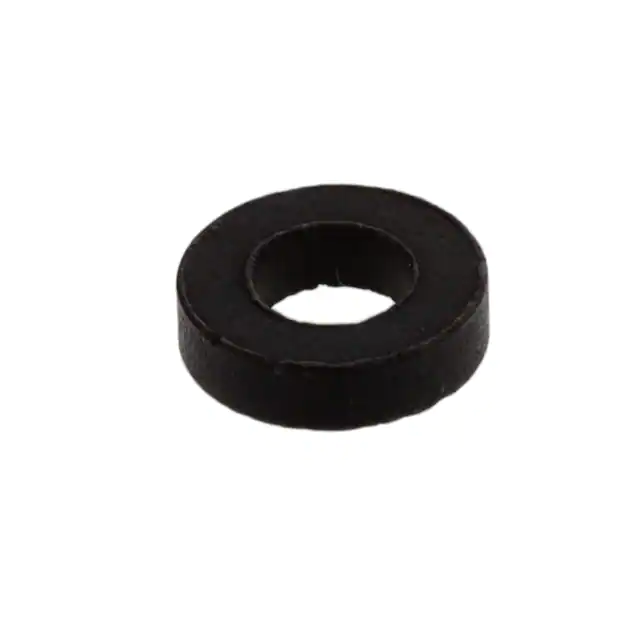

5943000111 43 TOROID PARYLENE COATED Fair-Rite Products Corp.	3,874	-	RFQ	Datasheet	Box	-	Active	Toroid	-	43	0.236 (6.00mm)	158 nH	±20%	Ungapped	-	800	6.3677	13	2.04	-	26.6	Parylene	0.067 (1.70mm)
3078990841 78 ROD Fair-Rite Products Corp.	3,891	-	RFQ	Datasheet	Bulk	-	Active	Tube	-	78	-	-	-	Ungapped	48	2300	-	-	1.77	-	-	Uncoated	-
5961000801 61 TOROID Fair-Rite Products Corp.	3,688	-	RFQ	Datasheet	Bulk	-	Active	Toroid	-	61	0.155 (3.94mm)	-	-	Ungapped	-	125	-	9.2	1.1	-	9.7	Uncoated	0.050 (1.27mm)

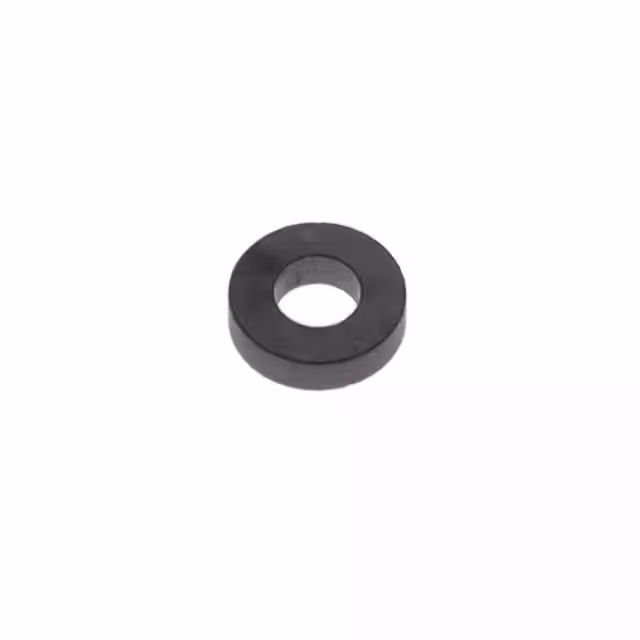

5978002101 78 TOROID Fair-Rite Products Corp.	3,012	-	RFQ	Datasheet	Bulk	-	Active	Toroid	-	78	-	-	±25%	Ungapped	-	2300	-	10.4	1.5	-	15.7	Uncoated	0.050 (1.27mm)
5952020201 52 TOROID Fair-Rite Products Corp.	3,386	-	RFQ	Datasheet	Bulk	-	Active	Toroid	-	52	-	-	±25%	Ungapped	-	250	-	12.8	2	-	25.6	Uncoated	0.060 (1.52mm)

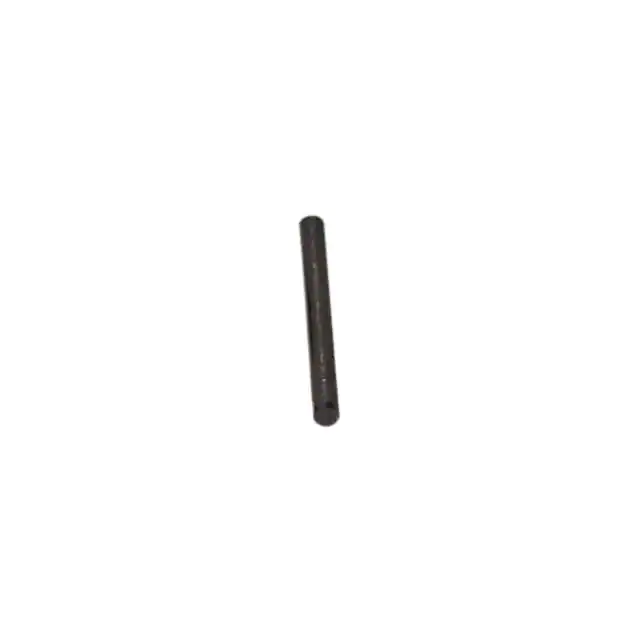

3078990861 78 ROD Fair-Rite Products Corp.	2,815	-	RFQ	Datasheet	Bulk	-	Active	ROD	-	78	-	-	-	Ungapped	34	2300	-	-	4.91	-	-	Uncoated	-
5975000101 75 TOROID Fair-Rite Products Corp.	3,011	-	RFQ	Datasheet	Bulk	-	Active	Toroid	-	75	0.230 (5.84mm)	-	±20%	Ungapped	-	5000	-	13	2	-	27	Uncoated	0.060 (1.52mm)
8978101021 78 EFD CORE SET Fair-Rite Products Corp.	2,610	-	RFQ	Datasheet	Bulk	-	Active	EFD	-	78	-	-	±25%	Ungapped	-	2300	327	23.6	7.2	6.6	171	Uncoated	0.205 (5.20mm)

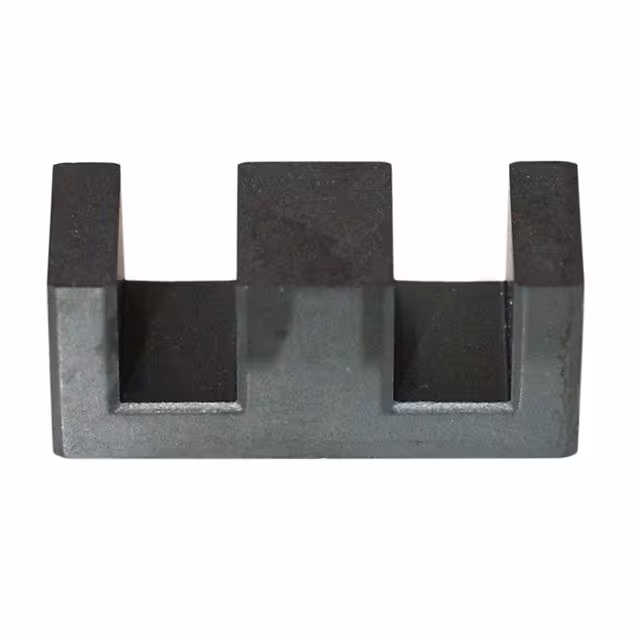

9498201002 98 PLANAR E CORE SET Fair-Rite Products Corp.	2,018	-	RFQ	Datasheet	Bulk	-	Active	E	-	-	-	-	±25%	Ungapped	-	2400	134	20.1	15.3	15	315	Uncoated	-

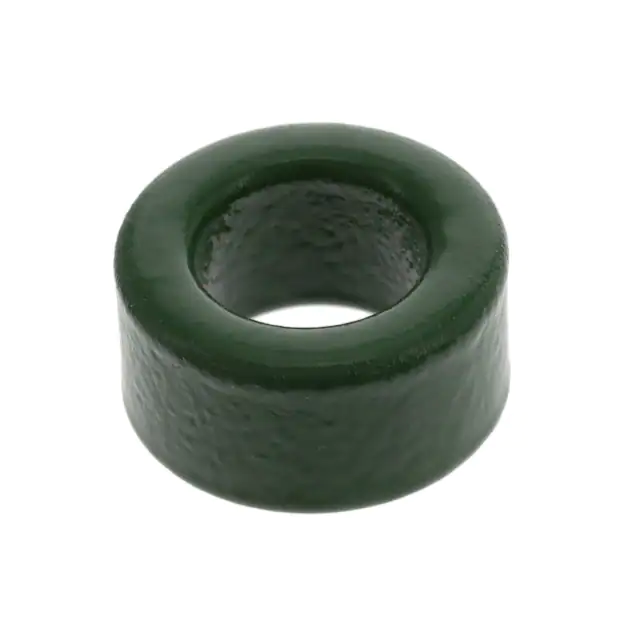

5943001121 43 TOROID PLASTIC COATED Fair-Rite Products Corp.	2,259	-	RFQ	Datasheet	Box	-	Active	Toroid	-	43	0.530 (13.45mm)	480 nH	-25%, +20%	Ungapped	-	800	2.0842	31.2	15	-	466	Plastic	0.280 (7.11mm)
4077172011 77 ROD Fair-Rite Products Corp.	3,241	-	RFQ	Datasheet	Bulk	-	Active	ROD	-	77	-	-	-	Ungapped	-	2000	-	-	-	-	-	Uncoated	-
9498103002 98 E CORE SET Fair-Rite Products Corp.	3,430	-	RFQ	Datasheet	Bulk	-	Active	E	-	-	-	-	±25%	Ungapped	-	2400	181	39.9	22	21.6	878	Uncoated	0.315 (8.00mm)

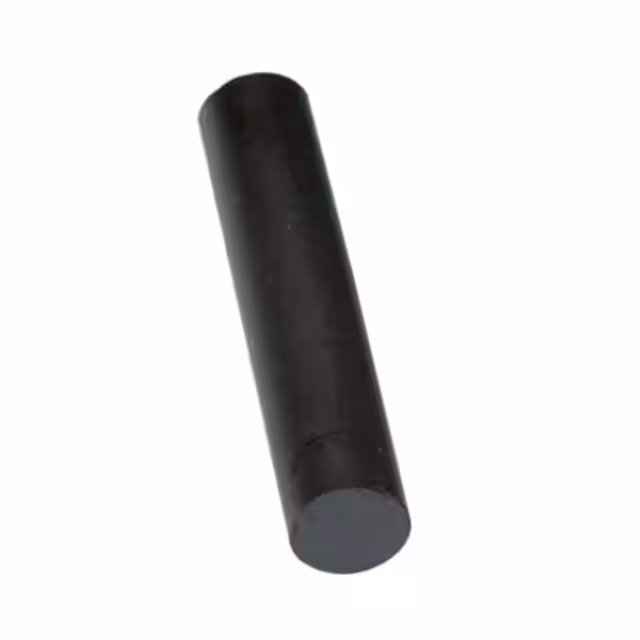

4052155611 52 ROD Fair-Rite Products Corp.	3,425	-	RFQ	Datasheet	Box	-	Active	ROD	-	52	-	-	-	Ungapped	-	250	-	-	-	-	-	Uncoated	-
5976000201 76 TOROID Fair-Rite Products Corp.	2,834	-	RFQ	Datasheet	Bulk	-	Active	Toroid	-	76	0.375 (9.53mm)	-	±30%	Ungapped	-	10000	-	20.7	7.2	-	150	Uncoated	0.125 (3.18mm)
9498202002 98 PLANAR E CORE SET Fair-Rite Products Corp.	3,896	-	RFQ	Datasheet	Bulk	-	Active	E	-	-	-	-	±25%	Ungapped	-	2400	60	24.3	39.5	39	960	Uncoated	-
4052195211 52 ROD Fair-Rite Products Corp.	2,979	-	RFQ	Datasheet	Bulk	-	Active	ROD	-	52	-	-	-	Ungapped	-	250	-	-	-	-	-	Uncoated	-
8995121221 95 EFD CORE SET Fair-Rite Products Corp.	3,207	-	RFQ	Datasheet	Bulk	-	Active	EFD	-	95	-	-	±25%	Ungapped	-	3000	259	28.4	11	10.8	311	Uncoated	0.244 (6.20mm)
5952020501 52 TOROID Fair-Rite Products Corp.	3,866	-	RFQ	Datasheet	Box	-	Active	Toroid	-	52	-	-	±25%	Ungapped	-	250	-	30.6	14.4	-	442	Uncoated	0.250 (6.35mm)
