LED Lighting - COBs, Engines, Modules, Strips

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Color	CCT(K)	Wavelength	Configuration	LuminousFlux@Current/Temperature	Current-Test	Temperature-Test	Voltage-Forward(Vf)(Typ)	Lumens/Watt@Current-Test	Current-Max	CRI(ColorRenderingIndex)	ViewingAngle	Features	Size/Dimension	Height	LightEmittingSurface(LES)
CXA2011-0000-000P0UF00E7 LED XLAMP CXA WHT 3000K SCREW MT CreeLED, Inc.	3,848	-	RFQ	Datasheet	Tube	XLamp® CXA2011	Obsolete	Chip On Board (COB)	White, Warm	3000K	-	Square	730lm (680lm ~ 780lm)	270mA	85°C	40V	68 lm/W	1A	90	120°	-	22.00mm L x 22.00mm W	2.28mm	-
CXA2011-0000-000P0UF00E8 LED XLAMP CXA WHT 2700K SCREW MT CreeLED, Inc.	3,540	-	RFQ	Datasheet	Tube	XLamp® CXA2011	Obsolete	Chip On Board (COB)	White, Warm	2700K	-	Square	730lm (680lm ~ 780lm)	270mA	85°C	40V	68 lm/W	1A	90	120°	-	22.00mm L x 22.00mm W	2.28mm	-
CXA2011-0000-000P0UF027F LED XLAMP CXA WHT 2700K SCREW MT CreeLED, Inc.	2,154	-	RFQ	Datasheet	Tube	XLamp® CXA2011	Obsolete	Chip On Board (COB)	White, Warm	2700K 4-Step MacAdam Ellipse	-	Square	730lm (680lm ~ 780lm)	270mA	85°C	40V	68 lm/W	1A	90	120°	-	22.00mm L x 22.00mm W	2.28mm	-
CXA2011-0000-000P0UF027H LED XLAMP CXA WHT 2700K SCREW MT CreeLED, Inc.	2,152	-	RFQ	Datasheet	Tube	XLamp® CXA2011	Obsolete	Chip On Board (COB)	White, Warm	2700K 2-Step MacAdam Ellipse	-	Square	730lm (680lm ~ 780lm)	270mA	85°C	40V	68 lm/W	1A	90	120°	-	22.00mm L x 22.00mm W	2.28mm	-
CXA2011-0000-000P0UF030F LED XLAMP CXA WHT 3000K SCREW MT CreeLED, Inc.	2,298	-	RFQ	Datasheet	Tube	XLamp® CXA2011	Obsolete	Chip On Board (COB)	White, Warm	3000K 4-Step MacAdam Ellipse	-	Square	730lm (680lm ~ 780lm)	270mA	85°C	40V	68 lm/W	1A	90	120°	-	22.00mm L x 22.00mm W	2.28mm	-
CXA2011-0000-000P0UF030H LED XLAMP CXA WHT 3000K SCREW MT CreeLED, Inc.	3,032	-	RFQ	Datasheet	Tube	XLamp® CXA2011	Obsolete	Chip On Board (COB)	White, Warm	3000K 2-Step MacAdam Ellipse	-	Square	730lm (680lm ~ 780lm)	270mA	85°C	40V	68 lm/W	1A	90	120°	-	22.00mm L x 22.00mm W	2.28mm	-
CXA2011-0000-000P0UG00E7 LED XLAMP CXA WHT 3000K SCREW MT CreeLED, Inc.	2,267	-	RFQ	Datasheet	Tube	XLamp® CXA2011	Obsolete	Chip On Board (COB)	White, Warm	3000K	-	Square	840lm (780lm ~ 900lm)	270mA	85°C	40V	78 lm/W	1A	90	120°	-	22.00mm L x 22.00mm W	2.28mm	-
CXA2011-0000-000P0UG030F LED XLAMP CXA WHT 3000K SCREW MT CreeLED, Inc.	2,237	-	RFQ	Datasheet	Tube	XLamp® CXA2011	Obsolete	Chip On Board (COB)	White, Warm	3000K 4-Step MacAdam Ellipse	-	Square	840lm (780lm ~ 900lm)	270mA	85°C	40V	78 lm/W	1A	90	120°	-	22.00mm L x 22.00mm W	2.28mm	-
CXA2011-0000-000P0UG030H LED XLAMP CXA WHT 3000K SCREW MT CreeLED, Inc.	2,387	-	RFQ	Datasheet	Tube	XLamp® CXA2011	Obsolete	Chip On Board (COB)	White, Warm	3000K 2-Step MacAdam Ellipse	-	Square	840lm (780lm ~ 900lm)	270mA	85°C	40V	78 lm/W	1A	90	120°	-	22.00mm L x 22.00mm W	2.28mm	-
LMH020-4000-30G9-00000TW LED MOD LMH2 TRUEWHITE WARM WHT CreeLED, Inc.	2,653	-	RFQ	Datasheet	Tray	LMH2 TrueWhite®	Obsolete	LED Module	White, Warm	3000K	-	Round	4000lm (3720lm ~ 4280lm)	900mA	85°C	39.7V	108 lm/W	900mA	90	85°	Dimming - WhiteLight	88.20mm Dia	30.00mm	68.00mm Dia

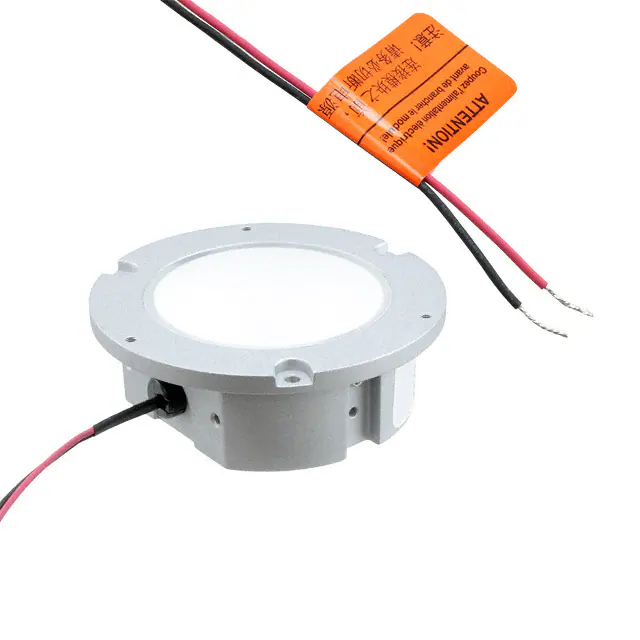

LMH020-4000-40G9-00000TW LED MOD 4000LM WHITE 4000K FLAT CreeLED, Inc.	2,866	-	RFQ	Datasheet	Tray	LMH2 TrueWhite®	Obsolete	LED Module	White, Neutral	4000K	-	Round	4000lm (3720lm ~ 4280lm)	900mA	85°C	39.7V	108 lm/W	900mA	90	85°	Dimming - WhiteLight	88.20mm Dia	30.00mm	68.00mm Dia
CXA1520-0000-000N00N430F LED COB CXA1520 WARM WHT SQUARE CreeLED, Inc.	2,186	-	RFQ	Datasheet	Tray	XLamp® CXA1520	Obsolete	Chip On Board (COB)	White, Warm	3000K 4-Step MacAdam Ellipse	-	Square	1770lm (1710lm ~ 1830lm)	500mA	85°C	35V	101 lm/W	900mA	80	115°	-	15.85mm L x 15.85mm W	1.55mm	8.90mm Dia
CXA1520-0000-000N0YK230F LED COB CXA1520 WARM WHT SQUARE CreeLED, Inc.	2,127	-	RFQ	Datasheet	Tray	XLamp® CXA1520	Obsolete	Chip On Board (COB)	White, Warm	3000K 4-Step MacAdam Ellipse	-	Square	1245lm (1200lm ~ 1290lm)	500mA	85°C	35V	72 lm/W	900mA	93	115°	-	15.85mm L x 15.85mm W	1.55mm	8.90mm Dia
CXA3070-0000-000N00Z230F LED COB CXA3070 WARM WHT SQUARE CreeLED, Inc.	2,078	-	RFQ	Datasheet	Tray	XLamp® CXA3070	Obsolete	Chip On Board (COB)	White, Warm	3000K 4-Step MacAdam Ellipse	-	Square	7668lm (7390lm ~ 7945lm)	1.925A	85°C	38.5V	103 lm/W	2.8A	80	115°	-	23.85mm L x 23.85mm W	1.70mm	23.00mm Dia
CXA3070-0000-000N00Z450F LED COB CXA3070 COOL WHT SQUARE CreeLED, Inc.	2,009	-	RFQ	Datasheet	Tray	XLamp® CXA3070	Obsolete	Chip On Board (COB)	White, Cool	5000K 4-Step MacAdam Ellipse	-	Square	8073lm (7945lm ~ 8500lm)	1.925A	85°C	38.5V	109 lm/W	2.8A	70	115°	-	23.85mm L x 23.85mm W	1.70mm	23.00mm Dia
CXA1520-0000-000N00M427F LED ARRAY XLAMP CXA1520 WHITE CreeLED, Inc.	3,023	-	RFQ	Datasheet	Tray	XLamp® CXA1520	Obsolete	Chip On Board (COB)	White, Warm	2700K 4-Step MacAdam Ellipse	-	Square	1538lm (1485lm ~ 1590lm)	500mA	85°C	35V	88 lm/W	900mA	80	115°	-	15.85mm L x 15.85mm W	1.70mm	8.90mm Dia
CXA1520-0000-000N00M427H LED ARRAY XLAMP CXA1520 WHITE CreeLED, Inc.	3,684	-	RFQ	Datasheet	Tray	XLamp® CXA1520	Obsolete	Chip On Board (COB)	White, Warm	2700K 2-Step MacAdam Ellipse	-	Square	1538lm (1485lm ~ 1590lm)	500mA	85°C	35V	88 lm/W	900mA	80	115°	-	15.85mm L x 15.85mm W	1.70mm	8.90mm Dia
CXA1520-0000-000N00N227F LED ARRAY XLAMP CXA1520 WHITE CreeLED, Inc.	3,351	-	RFQ	Datasheet	Tray	XLamp® CXA1520	Obsolete	Chip On Board (COB)	White, Warm	2700K 4-Step MacAdam Ellipse	-	Square	1650lm (1590lm ~ 1710lm)	500mA	85°C	35V	94 lm/W	900mA	80	115°	-	15.85mm L x 15.85mm W	1.70mm	8.90mm Dia
CXA1520-0000-000N00N227H LED ARRAY XLAMP CXA1520 WHITE CreeLED, Inc.	3,704	-	RFQ	Datasheet	Tray	XLamp® CXA1520	Obsolete	Chip On Board (COB)	White, Warm	2700K 2-Step MacAdam Ellipse	-	Square	1650lm (1590lm ~ 1710lm)	500mA	85°C	35V	94 lm/W	900mA	80	115°	-	15.85mm L x 15.85mm W	1.70mm	8.90mm Dia
CXA1520-0000-000N00N230F LED ARRAY XLAMP CXA1520 WHITE CreeLED, Inc.	2,468	-	RFQ	Datasheet	Tray	XLamp® CXA1520	Obsolete	Chip On Board (COB)	White, Warm	3000K 4-Step MacAdam Ellipse	-	Square	1650lm (1590lm ~ 1710lm)	500mA	85°C	35V	94 lm/W	900mA	80	115°	-	15.85mm L x 15.85mm W	1.70mm	8.90mm Dia
