Power Transformers

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Voltage-Primary	Voltage-Secondary(FullLoad)	Current-Output(Max)	PrimaryWinding(s)	SecondaryWinding(s)	CenterTap	Power-Max	MountingType	TerminationStyle	Size/Dimension	Height-Seated(Max)	Voltage-Isolation
A41-80-28 PWR XFMR LAMINATED 80VA CHAS MT Signal Transformer	2,998	-	RFQ	Datasheet	Box	All-4-One™	Active	Laminated Core	115V, 230V	Parallel 14V, Series 28V	Parallel 5.6A, Series 2.8A	Dual	Dual	No	80VA	Chassis Mount	Solder, Quick Connect	63.50mm L x 64.30mm W	76.20mm	4000Vrms
IF-30-20 PWR XFMR SEMI-TORO 30VA TH Signal Transformer	2,444	-	RFQ	Datasheet	Bulk	IF	Active	Semi-Toroidal	115V, 230V	Parallel 10V, Series 20V	Parallel 3A, Series 1.5A	Dual	Dual	No	30VA	Through Hole	PC Pin	68.00mm L x 57.50mm W	35.30mm	4000Vrms
A41-175-16 PWR XFMR LAMINATED 175VA CHAS MT Signal Transformer	3,911	-	RFQ	Datasheet	Box	All-4-One™	Active	Laminated Core	115V, 230V	Parallel 8V, Series 16V	Parallel 22A, Series 11A	Dual	Dual	No	175VA	Chassis Mount	Solder, Quick Connect	79.40mm L x 79.70mm W	95.30mm	4000Vrms
A41-175-20 PWR XFMR LAMINATED 175VA CHAS MT Signal Transformer	2,958	-	RFQ	Datasheet	Box	All-4-One™	Active	Laminated Core	115V, 230V	Parallel 10V, Series 20V	Parallel 17.6A, Series 8.8A	Dual	Dual	No	175VA	Chassis Mount	Solder, Quick Connect	79.40mm L x 79.70mm W	95.30mm	4000Vrms
A41-130-12 PWR XFMR LAMINATED 130VA CHAS MT Signal Transformer	3,768	-	RFQ	Datasheet	Box	All-4-One™	Active	Laminated Core	115V, 230V	Parallel 6.3V, Series 12.6V	Parallel 20.6A, Series 10.3A	Dual	Dual	No	130VA	Chassis Mount	Solder, Quick Connect	71.40mm L x 76.20mm W	85.70mm	4000Vrms

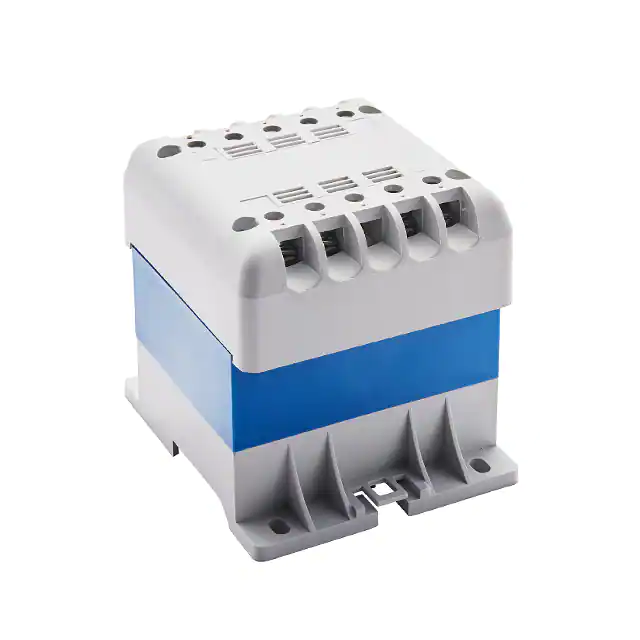

ECO-105-48 PWR XFMR LAMINATED 105VA CHAS MT Signal Transformer	2,448	-	RFQ	Datasheet	Box	EcoTran	Active	Laminated Core	115V, 230V	Parallel 24V, Series 48V	Parallel 4.4A, Series 2.2A	Dual	Dual	No	105VA	Chassis Mount	Terminal Block	90.00mm L x 106.00mm W	96.00mm	4000Vrms
ECO-200-230 PWR XFMR LAMINATED 200VA CHAS MT Signal Transformer	3,120	-	RFQ	Datasheet	Box	EcoTran	Active	Laminated Core	115V, 230V	Parallel 115V, Series 230V	Parallel 1.7A, Series 870mA	Dual	Dual	No	200VA	Chassis Mount	Terminal Block	90.00mm L x 106.00mm W	116.00mm	4000Vrms
MPI-200-28 PWR XFMR LAMINATED 200VA CHAS MT Signal Transformer	3,217	-	RFQ	Datasheet	Bulk	MPI	Active	Laminated Core	100V, 115V, 200V, 215V, 230V	Parallel 14V, Series 28V	Parallel 14.2A, Series 7.1A	Dual, Multiple Taps	Dual	No	200VA	Chassis Mount	Terminal Block	95.30mm L x 113.30mm W	93.10mm	4000Vrms
MPI-300-36 PWR XFMR LAMINATED 300VA CHAS MT Signal Transformer	3,060	-	RFQ	Datasheet	Bulk	MPI	Active	Laminated Core	100V, 115V, 200V, 215V, 230V	Parallel 18V, Series 36V	Parallel 16.7A, Series 8.3A	Dual, Multiple Taps	Dual	No	300VA	Chassis Mount	Terminal Block	104.80mm L x 113.10mm W	98.20mm	4000Vrms
MPI-400-24 PWR XFMR LAMINATED 400VA CHAS MT Signal Transformer	2,848	-	RFQ	Datasheet	Bulk	MPI	Active	Laminated Core	100V, 115V, 200V, 215V, 230V	Parallel 12V, Series 24V	Parallel 33.3A, Series 16.7A	Dual, Multiple Taps	Dual	No	400VA	Chassis Mount	Terminal Block	104.80mm L x 128.10mm W	98.20mm	4000Vrms
M4L-3-6 PWR XFMR LAMINATED 600VA CHAS MT Signal Transformer	2,333	-	RFQ	Datasheet	Bulk	M4L	Active	Laminated Core	115V, 100V	115V	5.2A	Dual, Multiple Taps	Single	No	600VA	Chassis Mount	Terminal Block	113.28mm L x 129.03mm W	114.30mm	4000Vrms
MPI-900-36 PWR XFMR LAMINATED 900VA CHAS MT Signal Transformer	3,958	-	RFQ	Datasheet	Bulk	MPI	Active	Laminated Core	100V, 115V, 200V, 215V, 230V	Parallel 18V, Series 36V	Parallel 50A, Series 25A	Dual, Multiple Taps	Dual	No	900VA	Chassis Mount	Terminal Block	133.30mm L x 139.70mm W	117.80mm	4000Vrms
16-100 PWR XFMR LAMINATED 1600VA CHAS Signal Transformer	3,151	-	RFQ	Datasheet	Box	-	Active	Laminated Core	105V, 115V, 125V	Parallel 8V, Series 16V	Parallel 200A, Series 100A	Single, Multiple Taps	Single, Multiple Taps	Yes	1600VA	Chassis Mount	Solder, Quick Connect	190.50mm L x 190.50mm W	162.00mm	1500Vrms
PC-40-30 PWR XFMR LAMINATED 1.2VA TH Signal Transformer	3,538	-	RFQ	Datasheet	Box	PC	Active	Laminated Core	115V	Parallel 20V, Series 40V	Parallel 60mA, Series 30mA	Single	Dual	No	1.2VA	Through Hole	PC Pin	34.90mm L x 28.60mm W	30.15mm	1500Vrms
DST-2-56 PWR XFMR LAMINATED 1.1VA TH Signal Transformer	3,699	-	RFQ	Datasheet	Bulk	DST	Active	Laminated Core	115V, 230V	Parallel 28V, Series 56V	Parallel 40mA, Series 20mA	Dual	Dual	No	1.1VA	Through Hole	PC Pin	34.90mm L x 28.60mm W	24.60mm	2500Vrms
DPC-40-110 PWR XFMR LAMINATED 4.4VA TH Signal Transformer	3,525	-	RFQ	Datasheet	Box	DPC	Active	Laminated Core	115V, 230V	Parallel 20V, Series 40V	Parallel 220mA, Series 110mA	Dual	Dual	No	4.4VA	Through Hole	PC Pin	41.30mm L x 31.80mm W	34.92mm	1500Vrms
PC-20-500 PWR XFMR LAMINATED 10VA TH Signal Transformer	3,027	-	RFQ	Datasheet	Box	PC	Active	Laminated Core	115V	Parallel 10V, Series 20V	Parallel 1A, Series 500mA	Single	Dual	No	10VA	Through Hole	PC Pin	47.60mm L x 36.50mm W	41.27mm	1500Vrms
IF-2-16 PWR XFMR SEMI-TORO 2VA TH Signal Transformer	2,831	-	RFQ	Datasheet	Bulk	IF	Active	Semi-Toroidal	115V, 230V	Parallel 8V, Series 16V	Parallel 250mA, Series 125mA	Dual	Dual	No	2VA	Through Hole	PC Pin	53.00mm L x 44.00mm W	17.60mm	4000Vrms
IF-2-230 PWR XFMR SEMI-TORO 2VA TH Signal Transformer	3,759	-	RFQ	Datasheet	Bulk	IF	Active	Semi-Toroidal	115V, 230V	Parallel 115V, Series 230V	Parallel 18mA, Series 9mA	Dual	Dual	No	2VA	Through Hole	PC Pin	53.00mm L x 44.00mm W	17.60mm	4000Vrms
DST-6-28 PWR XFMR LAMINATED 20VA TH Signal Transformer	2,845	-	RFQ	Datasheet	Box	DST	Active	Laminated Core	115V, 230V	Parallel 14V, Series 28V	Parallel 1.4A, Series 700mA	Dual	Dual	No	20VA	Through Hole	PC Pin	57.20mm L x 47.60mm W	36.90mm	2500Vrms
