Power Transformers

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Voltage-Primary	Voltage-Secondary(FullLoad)	Current-Output(Max)	PrimaryWinding(s)	SecondaryWinding(s)	CenterTap	Power-Max	MountingType	TerminationStyle	Size/Dimension	Height-Seated(Max)	Voltage-Isolation
F-237Z PWR XFMR LAMINATED 24VA CHAS MT Triad Magnetics	2,075	-	RFQ	Datasheet	Box	Multiple Secondary	Active	Laminated Core	115V	Parallel 12V, Series 24V	Parallel 500mA, Series 250mA	Single	Dual	Yes	24VA	Chassis Mount	Solder, Quick Connect	71.42mm L x 52.37mm W	60.33mm	1500Vrms
VPL10-5000 PWR XFMR LAMINATED 50.0VA CHAS Triad Magnetics	2,700	-	RFQ	Datasheet	Box	Chassis Mount: World Series™	Active	Laminated Core	115V, 230V	10V	5A	Dual	Dual	No	50.0VA	Chassis Mount	Wire Leads	57.15mm L x 101.6mm W	65.09mm	3500Vrms

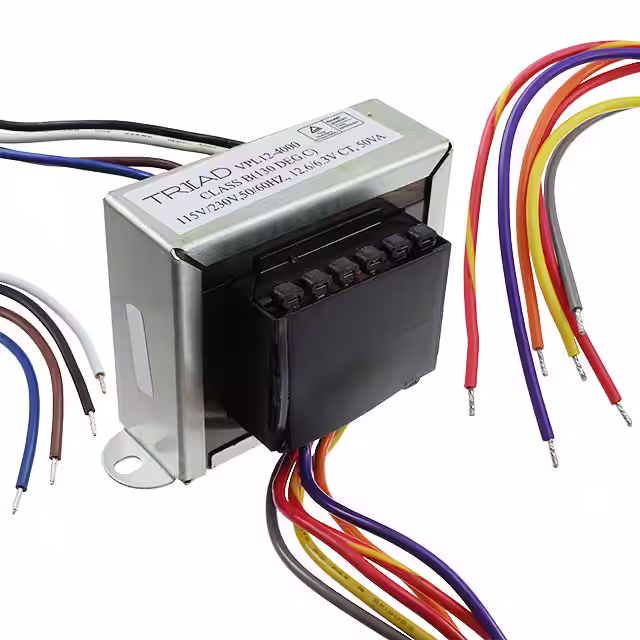

VPL12-4000 PWR XFMR LAMINATED 50.0VA CHAS Triad Magnetics	3,225	-	RFQ	Datasheet	Box	Chassis Mount: World Series™	Active	Laminated Core	115V, 230V	12.6V	3.97A	Dual	Dual	No	50.0VA	Chassis Mount	Wire Leads	57.15mm L x 101.6mm W	65.09mm	3500Vrms

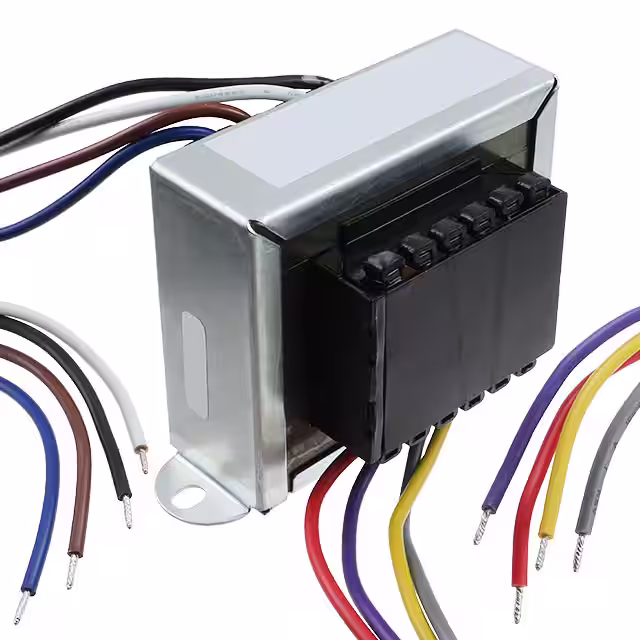

VPL16-3100 PWR XFMR LAMINATED 50.0VA CHAS Triad Magnetics	2,027	-	RFQ	Datasheet	Box	Chassis Mount: World Series™	Active	Laminated Core	115V, 230V	16V	3.125A	Dual	Dual	No	50.0VA	Chassis Mount	Wire Leads	57.15mm L x 101.6mm W	65.09mm	3500Vrms

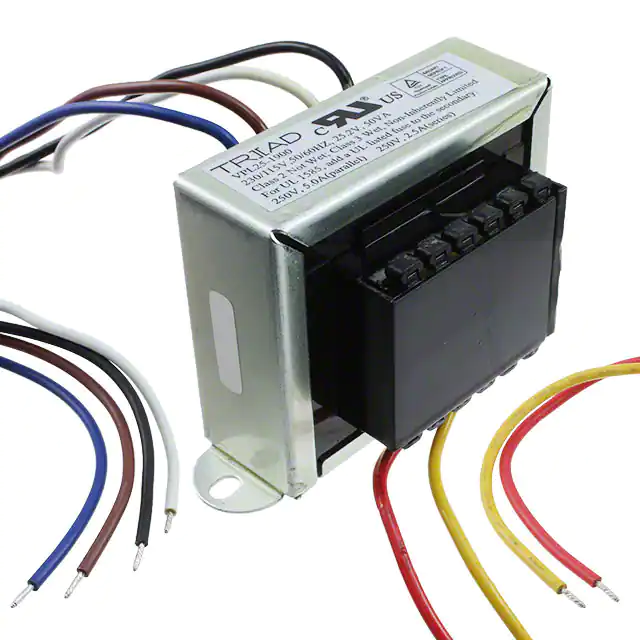

VPL25-1900 PWR XFMR LAMINATED 50.0VA CHAS Triad Magnetics	2,457	-	RFQ	Datasheet	Box	Chassis Mount: World Series™	Active	Laminated Core	115V, 230V	25.2V	1.984A	Dual	Dual	No	50.0VA	Chassis Mount	Wire Leads	57.15mm L x 101.6mm W	65.09mm	3500Vrms
VPL26-1800 PWR XFMR LAMINATED 50.0VA CHAS Triad Magnetics	2,207	-	RFQ	Datasheet	Box	Chassis Mount: World Series™	Active	Laminated Core	115V, 230V	26.8V	1.866A	Dual	Dual	No	50.0VA	Chassis Mount	Wire Leads	57.15mm L x 101.6mm W	65.09mm	3500Vrms
VPL28-1700 PWR XFMR LAMINATED 50.0VA CHAS Triad Magnetics	3,663	-	RFQ	Datasheet	Box	Chassis Mount: World Series™	Active	Laminated Core	115V, 230V	28V	1.786A	Dual	Dual	No	50.0VA	Chassis Mount	Wire Leads	57.15mm L x 101.6mm W	65.09mm	3500Vrms

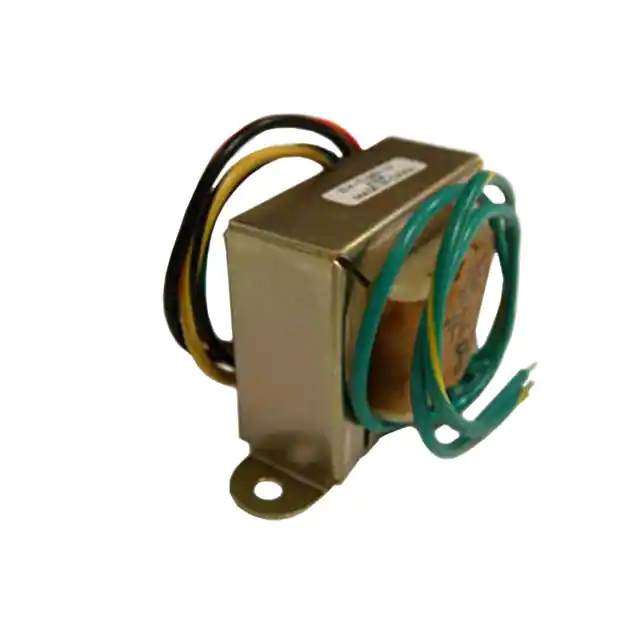

F-318X PWR XFMR LAMINATED 37.8VA CHAS Triad Magnetics	3,692	-	RFQ	Datasheet	Box	Single Secondary	Active	Laminated Core	115V, 230V	6.3V	6A	Dual	Single	Yes	37.8VA	Chassis Mount	Wire Leads	101.60mm L x 57.15mm W	57.94mm	1500Vrms
F-241U PWR XFMR LAMINATED 36VA CHAS MT Triad Magnetics	3,471	-	RFQ	Datasheet	Box	Multiple Secondary	Active	Laminated Core	115V	18V	1A	Single	Dual	Yes	36VA	Chassis Mount	Solder Lug	76.20mm L x 63.50mm W	63.50mm	1500Vrms
F-12X PWR XFMR LAMINATED 40VA CHAS MT Triad Magnetics	2,782	-	RFQ	Datasheet	Box	Single Secondary	Active	Laminated Core	115V	5V	8A	Single	Single	Yes	40VA	Chassis Mount	Wire Leads	101.60mm L x 57.15mm W	65.86mm	2500Vrms
F-255X PWR XFMR LAMINATED 40VA CHAS MT Triad Magnetics	2,668	-	RFQ	Datasheet	Box	Single Secondary	Active	Laminated Core	115V	20V	2A	Single	Single	Yes	40VA	Chassis Mount	Wire Leads	101.60mm L x 57.15mm W	65.07mm	1500Vrms
F-69X PWR XFMR LAMINATED 50.4VA CHAS Triad Magnetics	2,997	-	RFQ	Datasheet	Box	Single Secondary	Active	Laminated Core	115V	6.3V	8A	Single	Single	Yes	50.4VA	Chassis Mount	Wire Leads	101.60mm L x 57.15mm W	71.37mm	1500Vrms

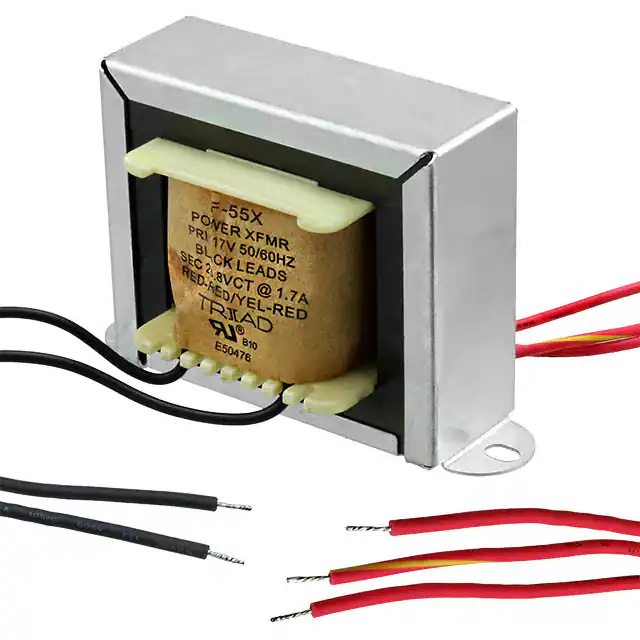

F-55X PWR XFMR LAMINATED 45.6VA CHAS Triad Magnetics	2,981	-	RFQ	Datasheet	Box	Single Secondary	Active	Laminated Core	115V	26.8V	1.7A	Single	Single	Yes	45.6VA	Chassis Mount	Wire Leads	101.60mm L x 57.15mm W	65.86mm	1500Vrms
F-225X PWR XFMR LAMINATED 50.4VA CHAS Triad Magnetics	3,914	-	RFQ	Datasheet	Box	Single Secondary	Active	Laminated Core	115V	12.6V	4A	Single	Single	Yes	50.4VA	Chassis Mount	Wire Leads	101.60mm L x 52.37mm W	66.68mm	1500Vrms
VPS10-8000-B PWR XFMR LAMINATED 80VA CHAS MT Triad Magnetics	2,624	-	RFQ	Datasheet	Bulk	Chassis Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 5V, Series 10V	Parallel 16A, Series 8A	Dual	Dual	No	80VA	Chassis Mount	Solder, Quick Connect	63.50mm L x 58.67mm W	76.20mm	4000Vrms
VPS24-3300-B PWR XFMR LAMINATED 80VA CHAS MT Triad Magnetics	3,381	-	RFQ	Datasheet	Bulk	Chassis Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 12V, Series 24V	Parallel 6.6A, Series 3.3A	Dual	Dual	No	80VA	Chassis Mount	Solder, Quick Connect	63.50mm L x 58.67mm W	76.20mm	4000Vrms
F-341X PWR XFMR LAMINATED 50.4VA CHAS Triad Magnetics	3,494	-	RFQ	Datasheet	Box	Single Secondary	Active	Laminated Core	115V, 230V	25.2V	2A	Dual	Single	Yes	50.4VA	Chassis Mount	Wire Leads	101.60mm L x 57.15mm W	65.86mm	1500Vrms
F-355X PWR XFMR LAMINATED 45.6VA CHAS Triad Magnetics	2,693	-	RFQ	Datasheet	Box	Single Secondary	Active	Laminated Core	115V, 230V	26.8V	1.7A	Dual	Single	Yes	45.6VA	Chassis Mount	Wire Leads	101.60mm L x 57.15mm W	65.86mm	1500Vrms

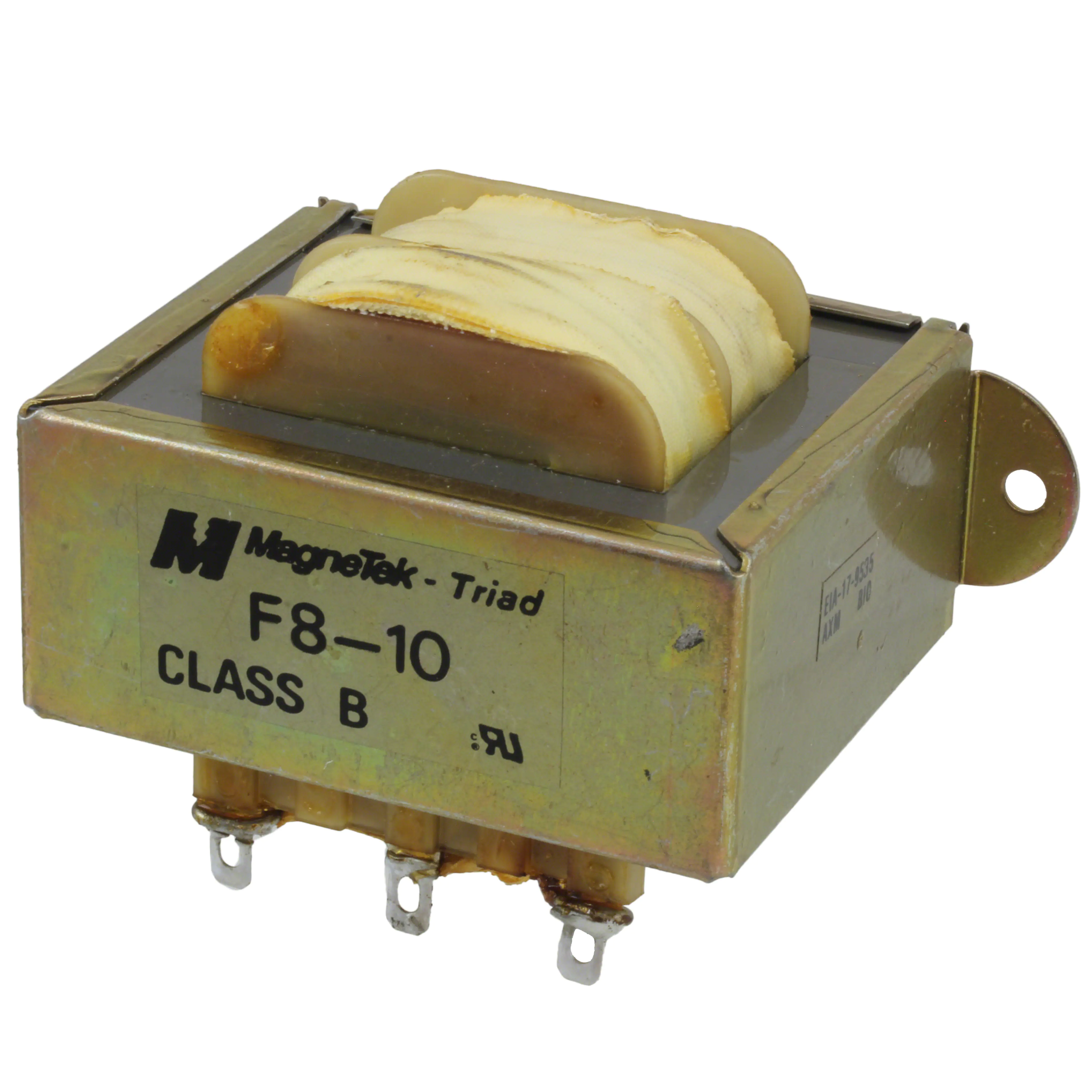

F8-10 PWR XFMR LAMINATED 100VA CHAS MT Triad Magnetics	2,999	-	RFQ	Datasheet	Box	Quick Pack	Active	Laminated Core	115V	10V	10A	Single	Single	Yes	100VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	102.39mm L x 57.15mm W	65.07mm	2500VAC

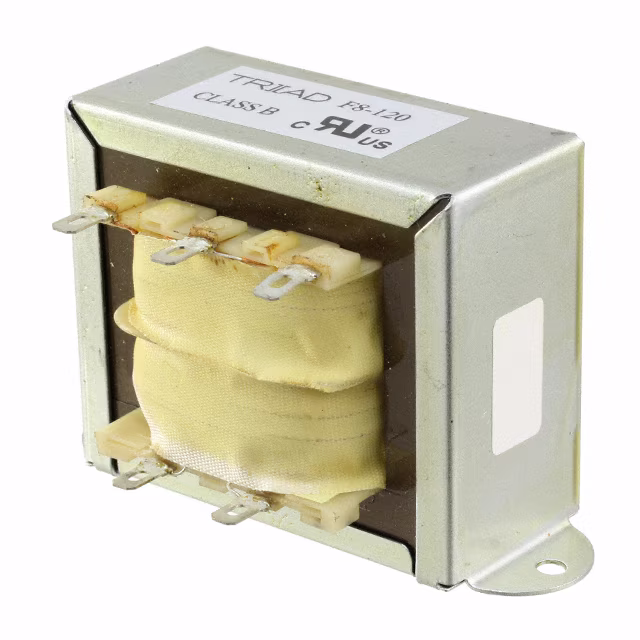

F8-120 PWR XFMR LAMINATED 100VA CHAS MT Triad Magnetics	2,752	-	RFQ	Datasheet	Box	Quick Pack	Active	Laminated Core	115V	120V	850mA	Single	Single	Yes	100VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	102.39mm L x 57.15mm W	65.07mm	2500VAC
