Power Transformers

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Voltage-Primary	Voltage-Secondary(FullLoad)	Current-Output(Max)	PrimaryWinding(s)	SecondaryWinding(s)	CenterTap	Power-Max	MountingType	TerminationStyle	Size/Dimension	Height-Seated(Max)	Voltage-Isolation
VPM48-2080 PWR XFMR TORO 100VA CHAS MT Triad Magnetics	3,686	-	RFQ	Datasheet	Box	Toroidal Medical, VPM	Active	Toroidal	100V, 120V, 220V, 240V	Parallel 24V, Series 48V	Parallel 4.16A, Series 2.08A	Dual, Multiple Taps	Dual	No	100VA	Chassis Mount	Wire Leads	96.00mm Dia	52.00mm	4000Vrms
F10-110-C2 PWR XFMR LAMINATED 1.1VA TH Triad Magnetics	779	-	RFQ	Datasheet	Tube	Split Pack™, Class 2/3, F	Active	Laminated Core	115V	Parallel 5V, Series 10V	Parallel 220mA, Series 110mA	Single	Dual	No	1.1VA	Through Hole	PC Pin	34.93mm L x 28.58mm W	23.80mm	4200Vrms
VPM18-13800 PWR XFMR TORO 250VA CHAS MT Triad Magnetics	199	-	RFQ	Datasheet	Box	Toroidal Medical, VPM	Active	Toroidal	100V, 120V, 220V, 240V	Parallel 9V, Series 18V	Parallel 27.6A, Series 13.8A	Dual, Multiple Taps	Dual	No	250VA	Chassis Mount	Wire Leads	123.00mm Dia	60.00mm	4000Vrms
TCT40-01E07K PWR XFMR LAMINATED 40VA CHAS MT Triad Magnetics	2,299	-	RFQ	Datasheet	Box	Class 2, TCT	Active	Laminated Core	120V	24V	1.67A	Single	Single	No	40VA	Chassis Mount	Wire Leads	92.46mm L x 56.67mm W	57.40mm	1500Vrms
VPT230-430 PWR XFMR TORO 100VA CHAS MT Triad Magnetics	2,539	-	RFQ	Datasheet	Box	Chassis Mount: World Series™	Active	Toroidal	115V, 230V	Parallel 115V, Series 230V	Parallel 860mA, Series 430mA	Dual	Dual	No	100VA	Chassis Mount	Wire Leads	87.00mm Dia x 47.00mm W	51.0mm	4000Vrms
VPT100-25000 PWR XFMR TORO 2500VA CHAS MT Triad Magnetics	3,555	-	RFQ	Datasheet	Box	Chassis Mount: World Series™	Active	Toroidal	115V, 230V	Parallel 50V, Series 100V	Parallel 50A, Series 25A	Dual	Dual	No	2500VA	Chassis Mount	Wire Leads	208.00mm Dia x 112.00mm W	120.0mm	4000Vrms
VPM240-12500 PWR XFMR TORO 3000VA CHAS MT Triad Magnetics	3,993	-	RFQ	Datasheet	Bulk	Toroidal Medical, VPM	Active	Toroidal	208V, 240V	Parallel 120V, Series 240V	Parallel 25A, Series 12.5A	Dual, Multiple Taps	Dual	No	3000VA	Chassis Mount	Wire Leads	222.00mm Dia	130.00mm	4000Vrms
F-13X PWR XFMR LAMINATED 3.78VA CHAS Triad Magnetics	119	-	RFQ	Datasheet	Box	Single Secondary	Active	Laminated Core	115V	6.3V	680mA	Single	Single	No	3.78VA	Chassis Mount	Wire Leads	60.32mm L x 34.93mm W	34.93mm	1500Vrms
FS20-120 PWR XFMR LAMINATED 2.4VA TH Triad Magnetics	3,051	-	RFQ	Datasheet	Box	Split Pack™	Active	Laminated Core	115V, 230V	Parallel 10V, Series 20V	Parallel 240mA, Series 120mA	Dual	Dual	No	2.4VA	Through Hole	PC Pin	34.93mm L x 28.58mm W	30.15mm	2500Vrms

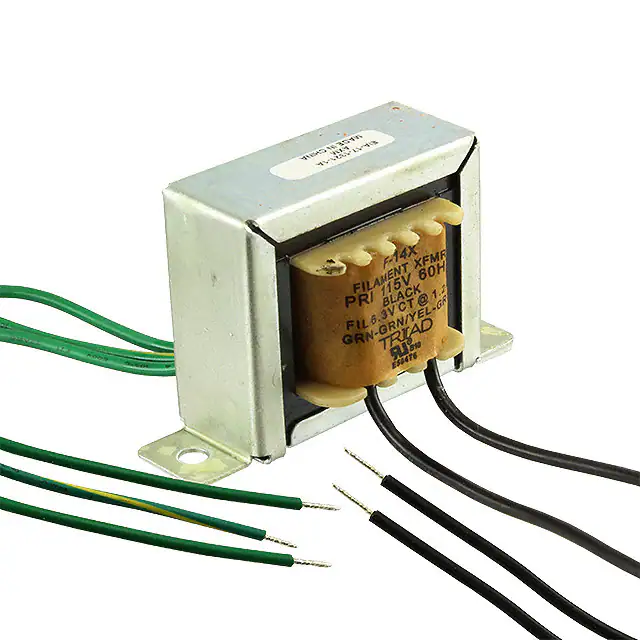

F-14X PWR XFMR LAMINATED 7.56VA CHAS Triad Magnetics	2,888	-	RFQ	Datasheet	Box	Single Secondary	Active	Laminated Core	115V	6.3V	1.2A	Single	Single	Yes	7.56VA	Chassis Mount	Wire Leads	71.42mm L x 41.28mm W	41.28mm	2500Vrms

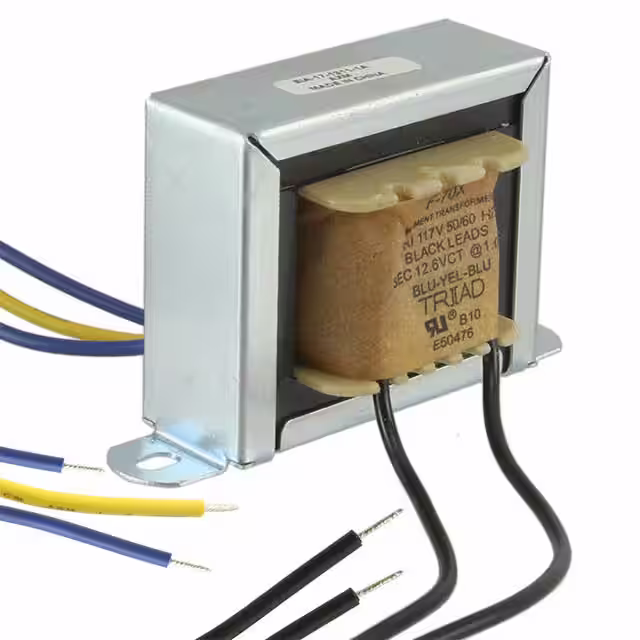

F-70X PWR XFMR LAMINATED 12.6VA CHAS Triad Magnetics	2,722	-	RFQ	Datasheet	Box	Single Secondary	Active	Laminated Core	115V	12.6V	1A	Single	Single	Yes	12.6VA	Chassis Mount	Wire Leads	84.12mm L x 44.45mm W	49.20mm	1500Vrms

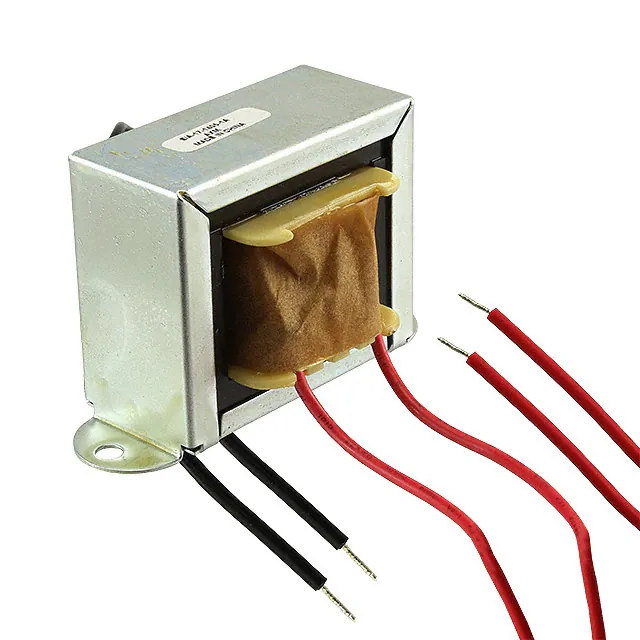

F-46X PWR XFMR LAMINATED 24VA CHAS MT Triad Magnetics	3,369	-	RFQ	Datasheet	Box	Single Secondary	Active	Laminated Core	115V	24V	1A	Single	Single	No	24VA	Chassis Mount	Wire Leads	82.55mm L x 53.97mm W	49.20mm	1500Vrms

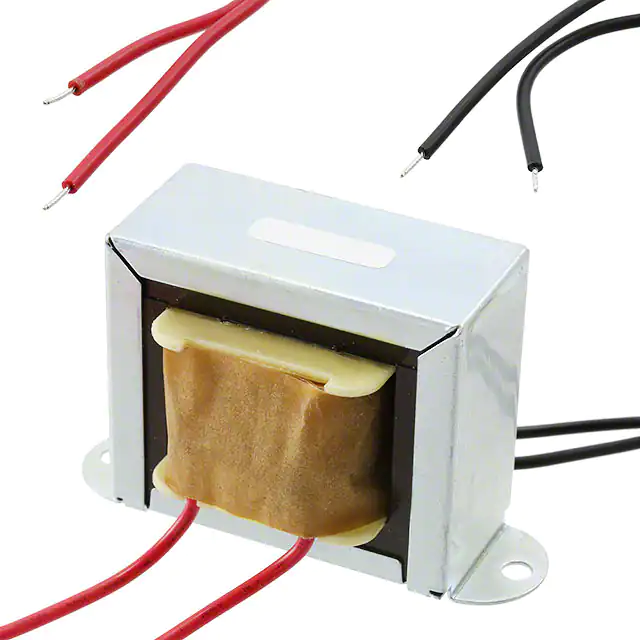

F-218X PWR XFMR LAMINATED 24VA CHAS MT Triad Magnetics	2,342	-	RFQ	Datasheet	Box	Single Secondary	Active	Laminated Core	115V	12V	2A	Single	Single	No	24VA	Chassis Mount	Wire Leads	82.55mm L x 47.63mm W	50.80mm	1500Vrms

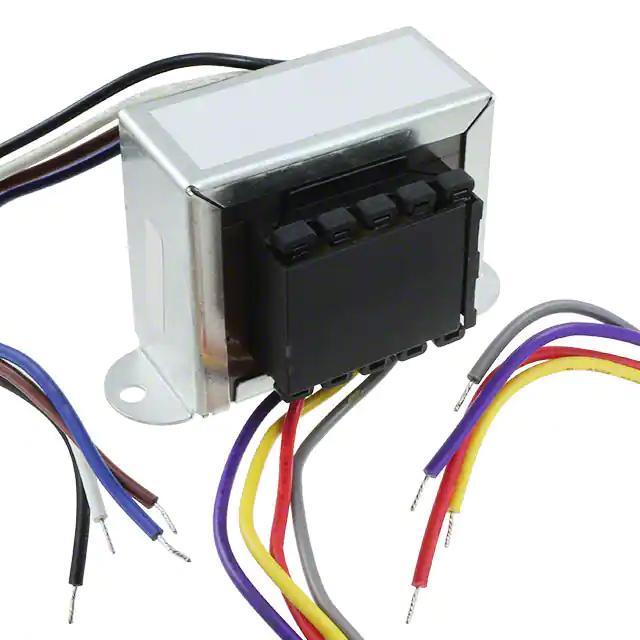

VPL2-10000 PWR XFMR LAMINATED 25.0VA CHAS Triad Magnetics	2,038	-	RFQ	Datasheet	Box	Chassis Mount: World Series™	Active	Laminated Core	115V, 230V	2.5V	10A	Dual	Dual	No	25.0VA	Chassis Mount	Wire Leads	53.98mm L x 82.55mm W	49.22 mm	3500Vrms
VPL24-1100 PWR XFMR LAMINATED 25.0VA CHAS Triad Magnetics	144	-	RFQ	Datasheet	Box	Chassis Mount: World Series™	Active	Laminated Core	115V, 230V	24V	1.04A	Dual	Dual	No	25.0VA	Chassis Mount	Wire Leads	53.98mm L x 82.55mm W	49.22 mm	3500Vrms

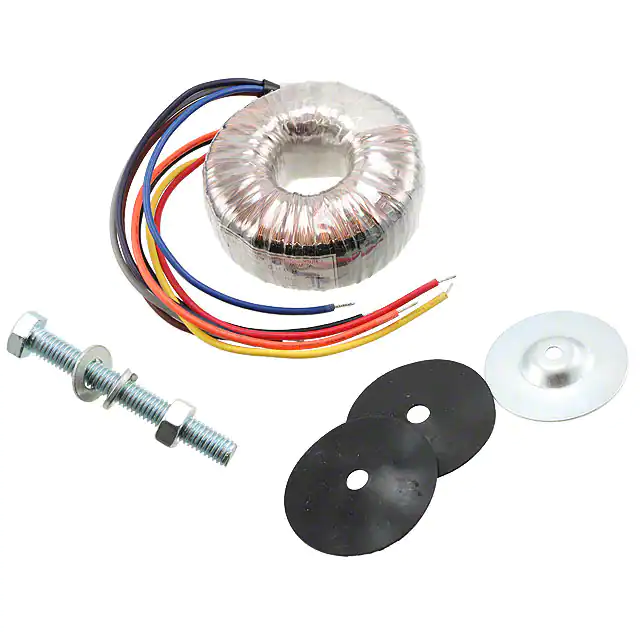

VPT48-520 PWR XFMR TORO 25VA CHAS MT Triad Magnetics	2,593	-	RFQ	Datasheet	Box	Chassis Mount: World Series™	Active	Toroidal	115V, 230V	Parallel 24V, Series 48V	Parallel 1.04A, Series 520mA	Dual	Dual	No	25VA	Chassis Mount	Wire Leads	71.00mm Dia x 32.00mm W	34.0mm	4000Vrms

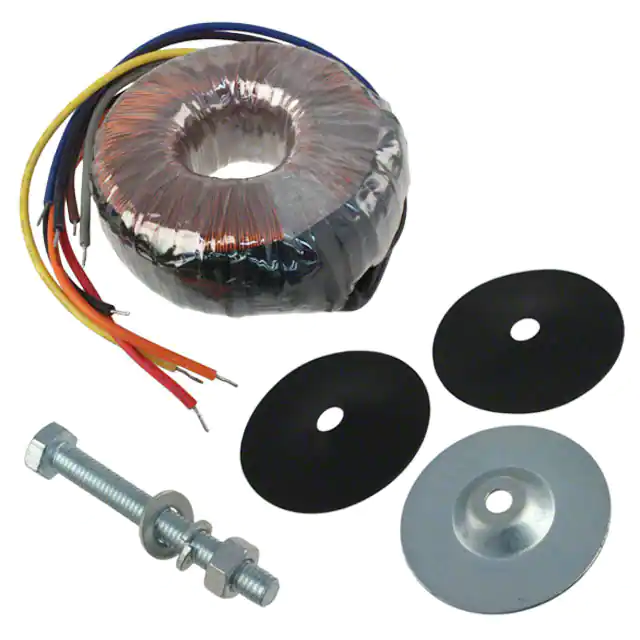

VPT36-690 PWR XFMR TORO 25VA CHAS MT Triad Magnetics	2,064	-	RFQ	Datasheet	Box	Chassis Mount: World Series™	Active	Toroidal	115V, 230V	Parallel 18V, Series 36V	Parallel 1.38A, Series 690mA	Dual	Dual	No	25VA	Chassis Mount	Wire Leads	71.00mm Dia x 32.00mm W	34.0mm	4000Vrms

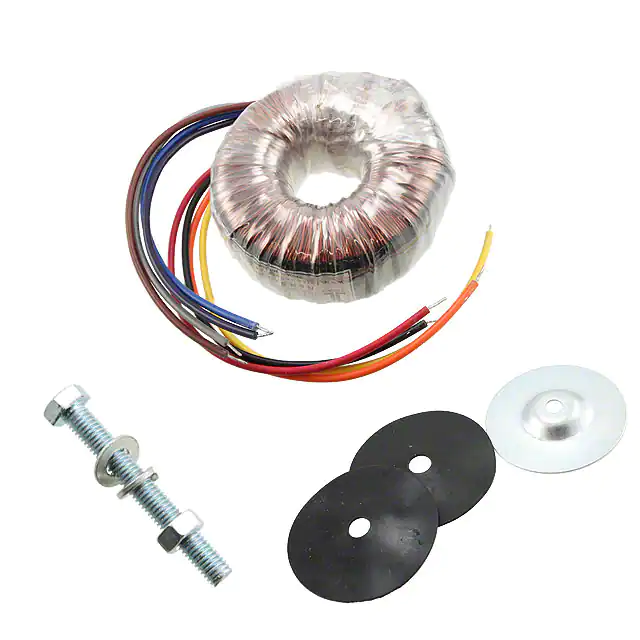

VPT18-1390 PWR XFMR TORO 25VA CHAS MT Triad Magnetics	2,584	-	RFQ	Datasheet	Box	Chassis Mount: World Series™	Active	Toroidal	115V, 230V	Parallel 9V, Series 18V	Parallel 2.78A, Series 1.39A	Dual	Dual	No	25VA	Chassis Mount	Wire Leads	71.00mm Dia x 32.00mm W	34.0mm	4000Vrms

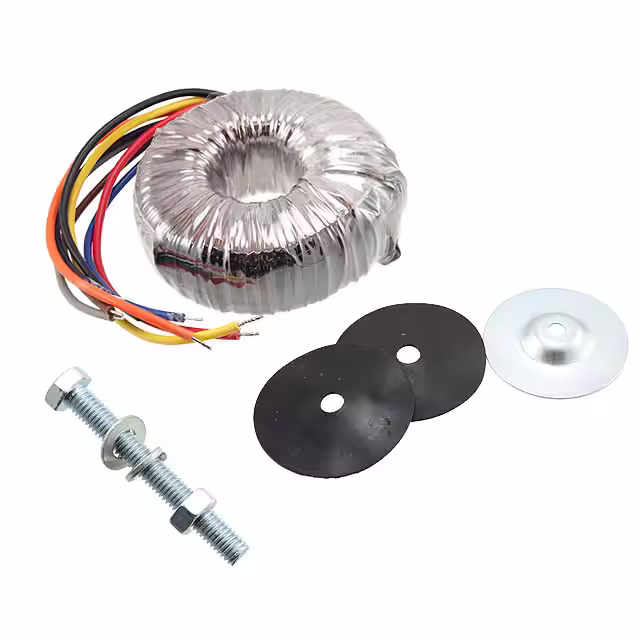

VPT12-2080 PWR XFMR TORO 25VA CHAS MT Triad Magnetics	3,195	-	RFQ	Datasheet	Box	Chassis Mount: World Series™	Active	Toroidal	115V, 230V	Parallel 6V, Series 12V	Parallel 4.16A, Series 2.08A	Dual	Dual	No	25VA	Chassis Mount	Wire Leads	71.00mm Dia x 32.00mm W	34.0mm	4000Vrms

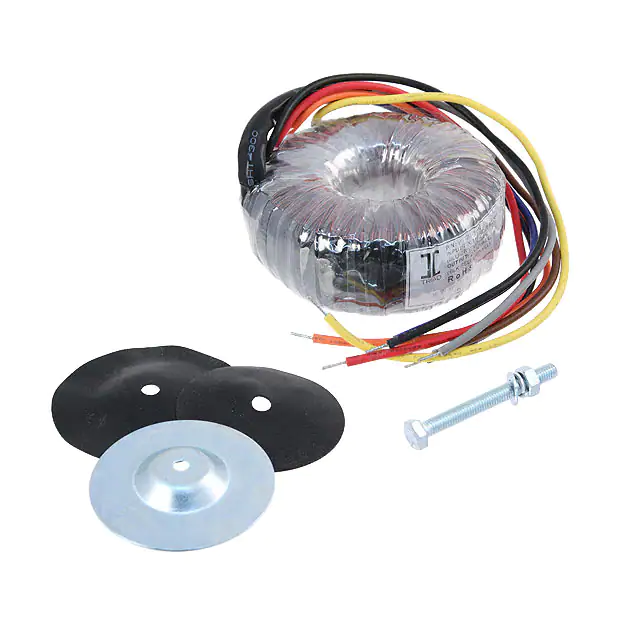

VPT24-1040 PWR XFMR TORO 25VA CHAS MT Triad Magnetics	2,712	-	RFQ	Datasheet	Box	Chassis Mount: World Series™	Active	Toroidal	115V, 230V	Parallel 12V, Series 24V	Parallel 2.08A, Series 1.04A	Dual	Dual	No	25VA	Chassis Mount	Wire Leads	71.00mm Dia x 32.00mm W	34.0mm	4000Vrms
