Pulse Transformers

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)
T1190 TRANSFORMER TELECOM DUAL T1/E1 Pulse Electronics Network	2,635	-	RFQ	Datasheet	Bulk	-	Obsolete	T1/E1 (Dual)	1.2mH, 1.2mH	-	1CT:1CT, 1CT:1.36CT	Surface Mount	0.505 L x 0.280 W (12.83mm x 7.11mm)	0.245 (6.22mm)
PE-68678 TRANSFORMER TELECOM DUAL T1/E1 Pulse Electronics Network	3,663	-	RFQ	Datasheet	Bulk	-	Obsolete	T1/E1 (Dual)	1.2mH, 1.2mH	-	1CT:1CT, 1CT:2CT	Surface Mount	0.505 L x 0.280 W (12.83mm x 7.11mm)	0.245 (6.22mm)

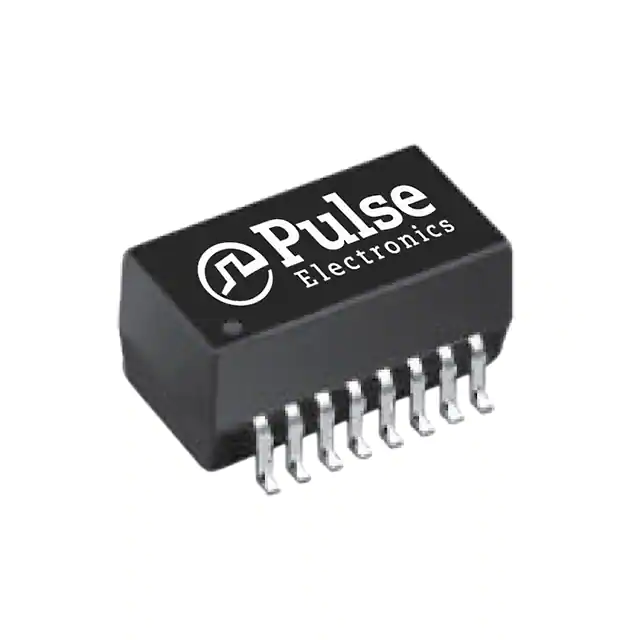

PE-65870 TRANSFORMER TELECOM DUAL T1/E1 Pulse Electronics Network	2,411	-	RFQ	Datasheet	Bulk	-	Obsolete	T1/E1 (Dual)	1.2mH	-	1CT:1.15CT	Surface Mount	0.505 L x 0.280 W (12.83mm x 7.11mm)	0.245 (6.22mm)
T1137 TRANSFORMER TELECOM DUAL T1/E1 Pulse Electronics Network	3,068	-	RFQ	Datasheet	Bulk	-	Obsolete	T1/E1 (Dual)	1.2mH, 1.2mH	-	1CT:2.42CT, 1CT:2.42CT	Surface Mount	0.505 L x 0.280 W (12.83mm x 7.11mm)	0.245 (6.22mm)
T1144 TRANSFORMER TELECOM DUAL T1/E1 Pulse Electronics Network	2,104	-	RFQ	Datasheet	Bulk	-	Obsolete	T1/E1 (Dual)	1mH, 1mH	-	1CT:1CT, 1CT:2.4CT	Surface Mount	0.505 L x 0.280 W (12.83mm x 7.11mm)	0.245 (6.22mm)
T1093 TRANSFORMER TELECOM DUAL T1/E1 Pulse Electronics Network	3,316	-	RFQ	Datasheet	Bulk	-	Obsolete	T1/E1 (Dual)	1.2mH, 1.2mH	-	1CT:1.15CT, 1CT:1.15CT	Surface Mount	0.505 L x 0.280 W (12.83mm x 7.11mm)	0.245 (6.22mm)

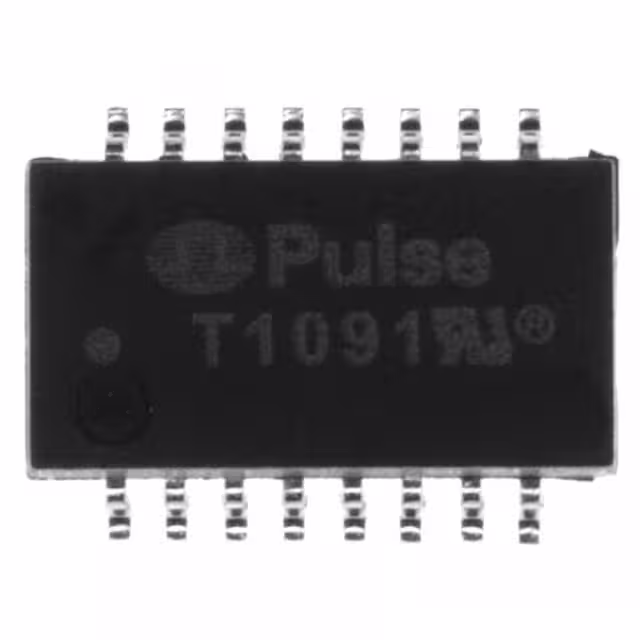

T1091 TRANSFORMER TELECOM DUAL T1/E1 Pulse Electronics Network	2,268	-	RFQ	Datasheet	Bulk	-	Obsolete	T1/E1 (Dual)	1.2mH	-	1CT:2CT, 1:1.36CT	Surface Mount	0.505 L x 0.280 W (12.83mm x 7.11mm)	0.245 (6.22mm)

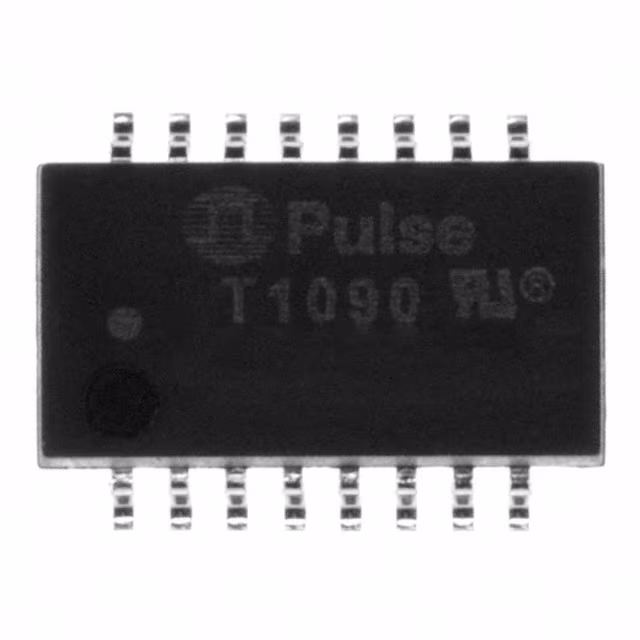

T1090 TRANSFORMER TELECOM DUAL T1/E1 Pulse Electronics Network	3,391	-	RFQ	Datasheet	Bulk	-	Obsolete	T1/E1 (Dual)	1.2mH, 1.2mH	-	1CT:2CT, 1CT:2CT	Surface Mount	0.505 L x 0.280 W (12.83mm x 7.11mm)	0.245 (6.22mm)

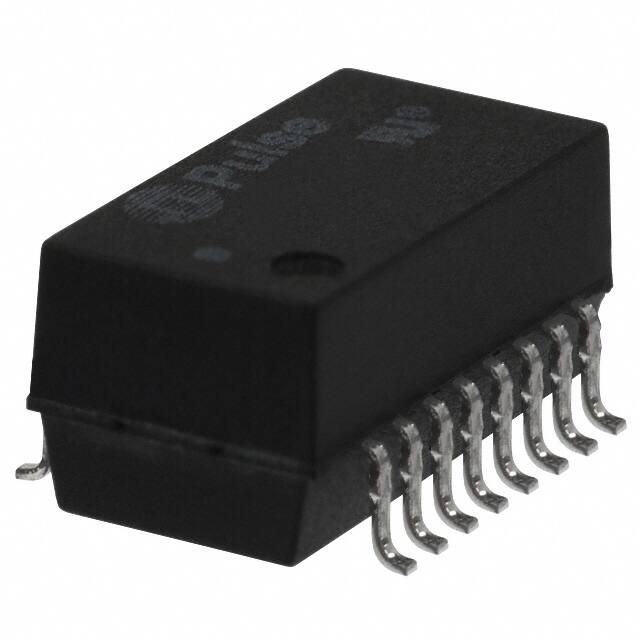

TX1287 TRANSFORMER TELECOM DUAL T1/E1 Pulse Electronics Network	2,154	-	RFQ	Datasheet	Bulk	-	Active	T1/E1 (Dual)	1.2mH, 1.2mH	-	1CT:2.42CT, 1CT:2.42CT	Surface Mount	0.505 L x 0.280 W (12.83mm x 7.11mm)	0.245 (6.22mm)
PE-65967 TRANSFORMER TELECOM SINGLE T3/E3 Pulse Electronics Network	2,596	-	RFQ	Datasheet	Bulk	-	Obsolete	T3/E3 (Single)	40µH	-	1:1	Surface Mount	0.300 L x 0.275 W (7.62mm x 7.00mm)	0.245 (6.23mm)
PE-65968 TRANSFORMER TELECOM SINGLE T3/E3 Pulse Electronics Network	2,517	-	RFQ	Datasheet	Bulk	-	Obsolete	T3/E3 (Single)	19µH	-	1:2CT	Surface Mount	0.300 L x 0.275 W (7.62mm x 7.00mm)	0.245 (6.23mm)
T3001 TRANSFORMER TELECOM SINGLE T3/E3 Pulse Electronics Network	2,799	-	RFQ	Datasheet	Bulk	-	Obsolete	T3/E3 (Single)	100µH	-	1:1	Surface Mount	0.300 L x 0.275 W (7.62mm x 7.00mm)	0.250 (6.35mm)
T3002 TRANSFORMER TELECOM SINGLE T3/E3 Pulse Electronics Network	2,442	-	RFQ	Datasheet	Bulk	-	Obsolete	T3/E3 (Single)	40µH	-	1:2CT	Surface Mount	0.300 L x 0.275 W (7.62mm x 7.00mm)	0.250 (6.35mm)
H5004 MODULE SINGLE GIGABIT LAN 24SOIC Pulse Electronics Network	3,812	-	RFQ	Datasheet	Tray	-	Obsolete	LAN 1000 Base-T	-	-	1CT:1CT	Surface Mount	0.690 L x 0.480 W (17.53mm x 12.20mm)	0.235 (5.97mm)
H5007 MODULE SINGLE GIGABIT LAN 24SOIC Pulse Electronics Network	3,736	-	RFQ	Datasheet	Tube	-	Obsolete	Isolation and Data Interface (Encapsulated)	-	-	1CT:1CT	Surface Mount	0.690 L x 0.480 W (17.53mm x 12.20mm)	0.227 (5.76mm)

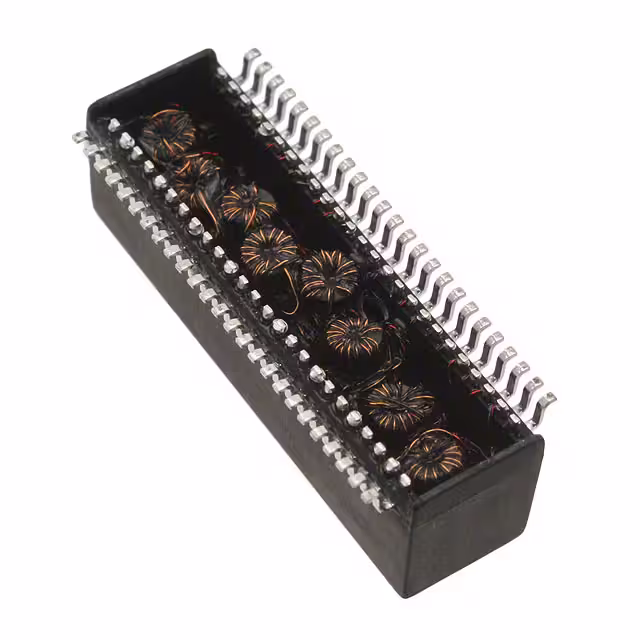

HX5020 MODULE DL GIGABIT ETHER LAN 48P Pulse Electronics Network	3,244	-	RFQ	Datasheet	Bulk	-	Obsolete	LAN 1000 Base-T	-	-	1CT:1CT	Surface Mount	1.100 L x 0.297 W (27.94mm x 7.54mm)	0.341 (8.66mm)
H0009 MODULE PC CARD SNGL LAN 16PCMCIA Pulse Electronics Network	3,013	-	RFQ	Datasheet	Tube	-	Obsolete	LAN	-	-	1CT:1CT	Surface Mount	0.560 L x 0.560 W (14.22mm x 14.22mm)	0.082 (2.08mm)
H1012 MODULE TRANSFMR SNGL LAN 16P SMD Pulse Electronics Network	3,331	-	RFQ	Datasheet	Bulk	-	Obsolete	LAN	-	-	1CT:1CT	Surface Mount	1.000 L x 0.390 W (25.40mm x 9.91mm)	0.245 (6.22mm)
H1102 MODULE XFRMR SGL ETHR LAN 16SOIC Pulse Electronics Network	3,617	-	RFQ	Datasheet	Bulk	-	Obsolete	LAN	-	-	1CT:1CT	Surface Mount	0.500 L x 0.280 W (12.70mm x 7.11mm)	0.245 (6.22mm)
H1112 MODULE TRANSFMR SNGL LAN 12P SMD Pulse Electronics Network	2,090	-	RFQ	Datasheet	Bulk	-	Obsolete	Isolation and Data Interface (Encapsulated)	-	-	1CT:1CT	Surface Mount	0.583 L x 0.460 W (14.81mm x 11.68mm)	0.202 (5.13mm)
