RF Directional Coupler

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CouplerType	Frequency	CouplingFactor	Applications	InsertionLoss	Power-Max	Isolation	ReturnLoss

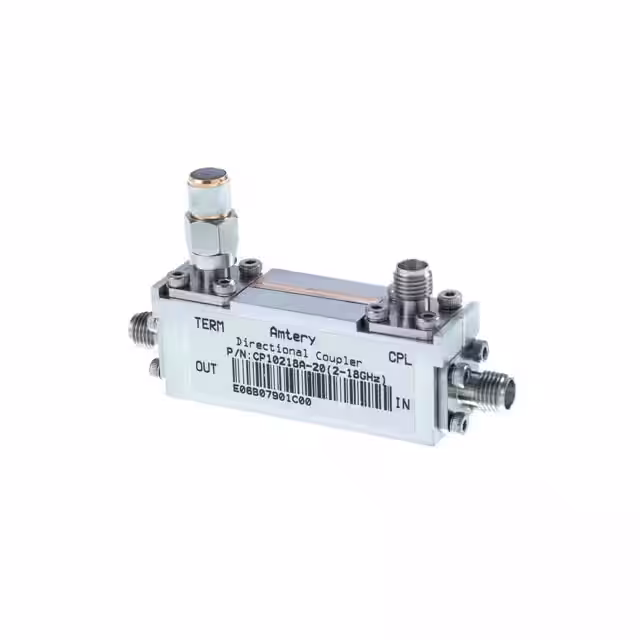

CP10218A-20 2 GHZ 18 GHZ, 20 DB COUPLING, B Amtery Corporation	3,286	-	RFQ	Datasheet	Box	-	Active	Standard	2GHz ~ 18GHz	20dB	General Purpose	0.5dB	20W	42dB	26dB
CP10418A-10 4 GHZ 18 GHZ, 10 DB COUPLING, B Amtery Corporation	2,368	-	RFQ	Datasheet	Box	-	Active	Standard	4GHz ~ 18GHz	10dB	General Purpose	1dB	20W	30dB	21dB

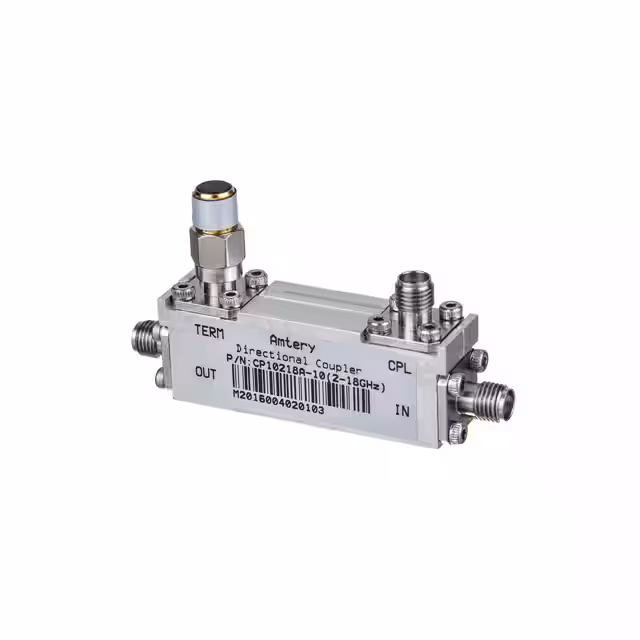

CP10218A-10 2 GHZ 18 GHZ, 10 DB COUPLING, B Amtery Corporation	3,429	-	RFQ	Datasheet	Box	-	Active	Standard	2GHz ~ 18GHz	10dB	General Purpose	1.1dB	20W	33dB	21dB

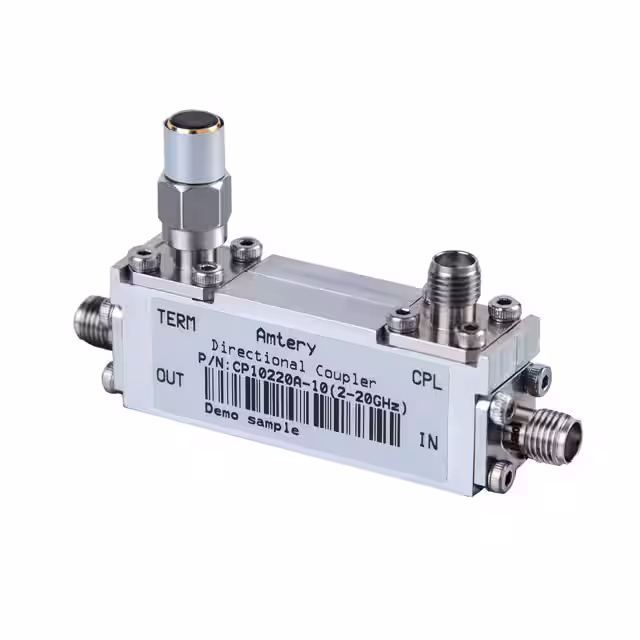

CP10220A-10 2 GHZ 20 GHZ, 10 DB COUPLING, B Amtery Corporation	2,422	-	RFQ	Datasheet	Box	-	Active	Standard	2GHz ~ 20GHz	10dB	General Purpose	1.5dB	20W	32dB	21dB

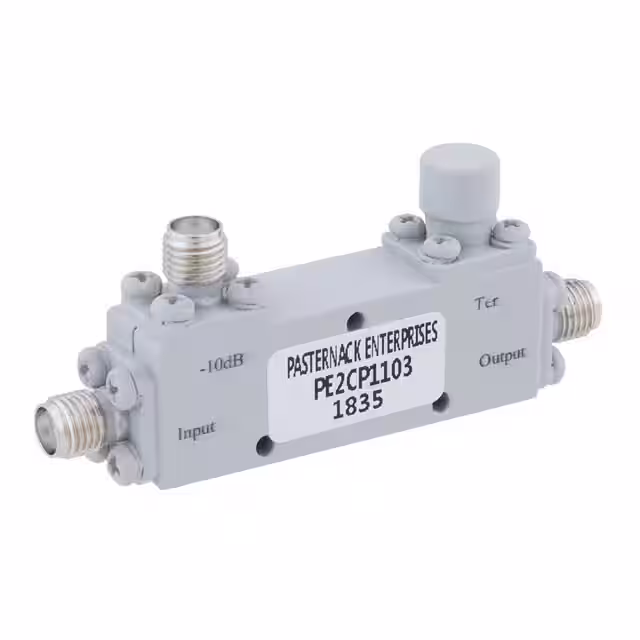

PE2CP1103 CPLR 10DBSMA 2-18GHZ 50W Pasternack	3,684	-	RFQ	Datasheet	Bag	-	Active	Standard	2GHz ~ 18GHz	10dB	CDMA, GSM, LTE	0.5dB	50W	-	-
CP20118A-10 1 GHZ 18 GHZ, 10 DB COUPLING, B Amtery Corporation	2,043	-	RFQ	Datasheet	Box	-	Active	Standard	1GHz ~ 18GHz	10dB	General Purpose	1.5dB	20W	33dB	23dB

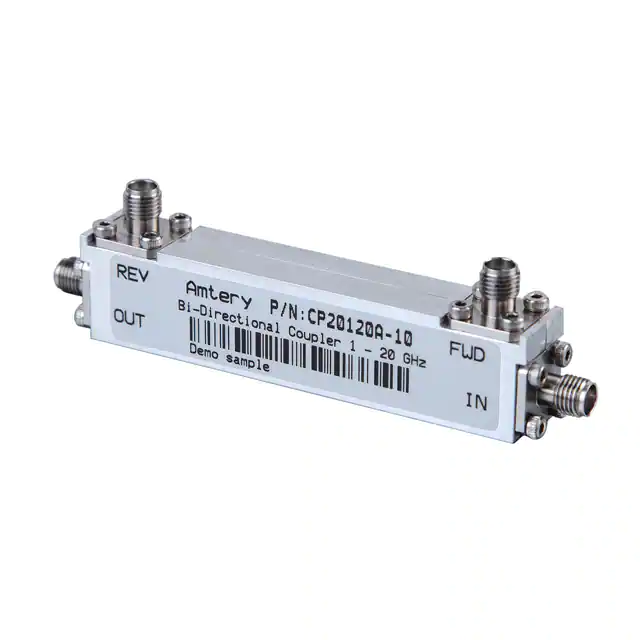

CP20120A-10 1 GHZ 20 GHZ, 10 DB COUPLING, B Amtery Corporation	3,928	-	RFQ	Datasheet	Box	-	Active	Standard	1GHz ~ 20GHz	10dB	General Purpose	1.9dB	20W	33dB	23dB

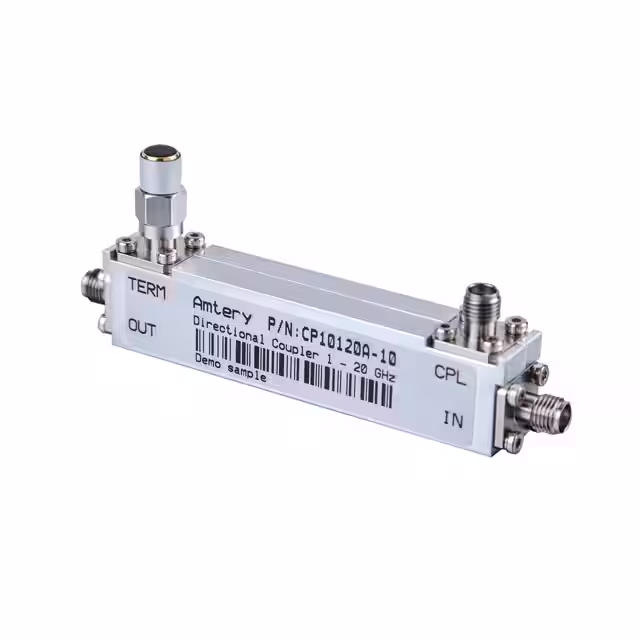

CP10120A-10 1 GHZ 20 GHZ, 10 DB COUPLING, B Amtery Corporation	3,509	-	RFQ	Datasheet	Box	-	Active	Standard	1GHz ~ 20GHz	10dB	General Purpose	1.6dB	20W	33dB	21dB

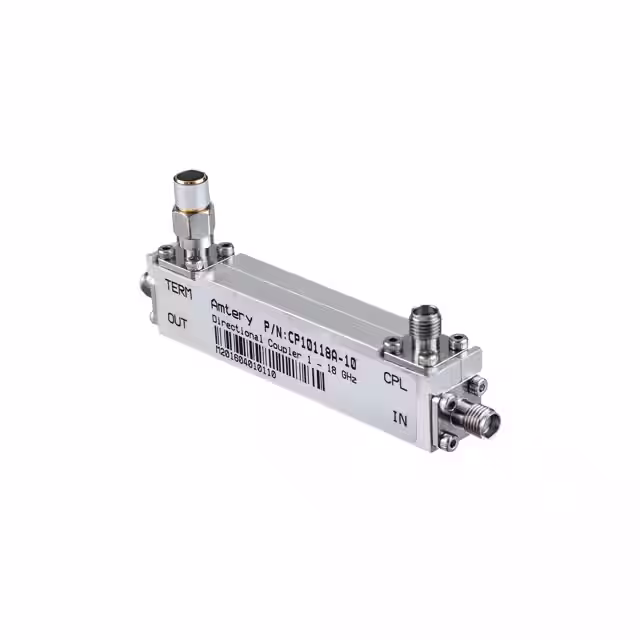

CP10118A-10 1 GHZ 18 GHZ, 10 DB COUPLING, B Amtery Corporation	3,760	-	RFQ	Datasheet	Box	-	Active	Standard	1GHz ~ 18GHz	10dB	General Purpose	1.9dB	20W	33dB	23dB

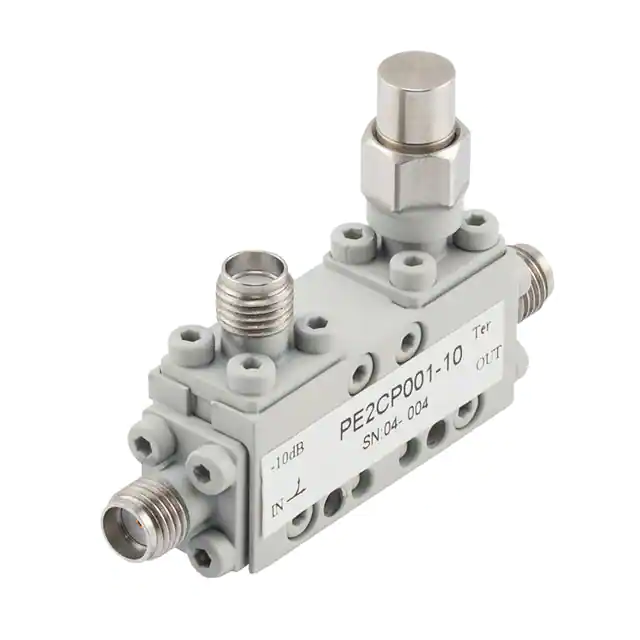

PE2CP001-10 CPLR 10DBSMA 6-18GHZ 50W Pasternack	3,189	-	RFQ	Datasheet	Bag	-	Active	Standard	6GHz ~ 18GHz	10 ± 1dB	General Purpose	1dB	50W	-	-

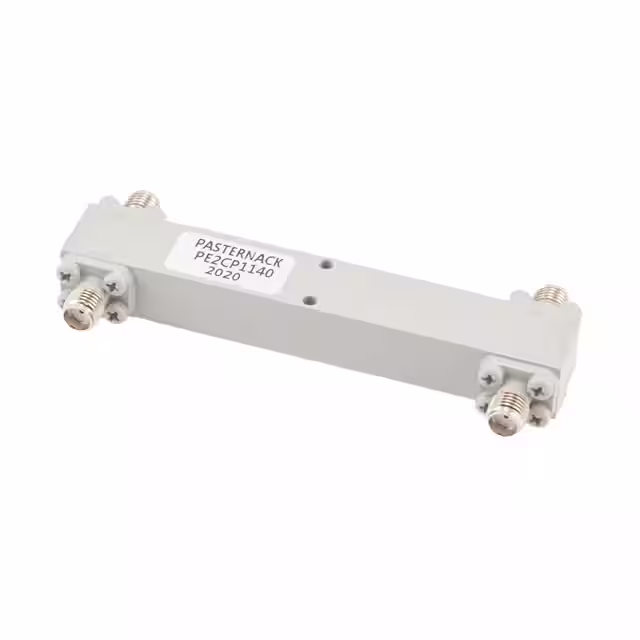

PE2CP1140 90DEG HYB CPL 500MHZ-1GHZ 50W Pasternack	2,567	-	RFQ	Datasheet	Bag	-	Active	Standard	500MHz ~ 1GHz	3dB	General Purpose	0.2dB	50W	22dB	-

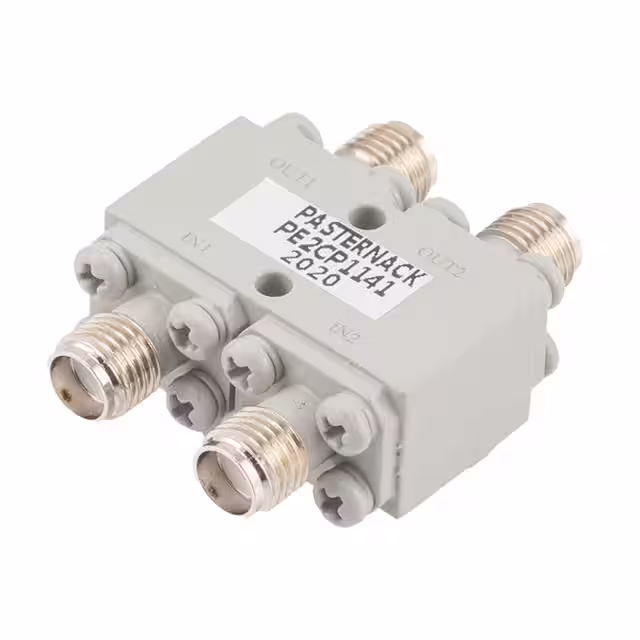

PE2CP1141 90DEG HYB CPL 5-10GHZ 50W Pasternack	3,569	-	RFQ	Datasheet	Bag	-	Active	Standard	5GHz ~ 10GHz	3dB	General Purpose	0.2dB	50W	20dB	-

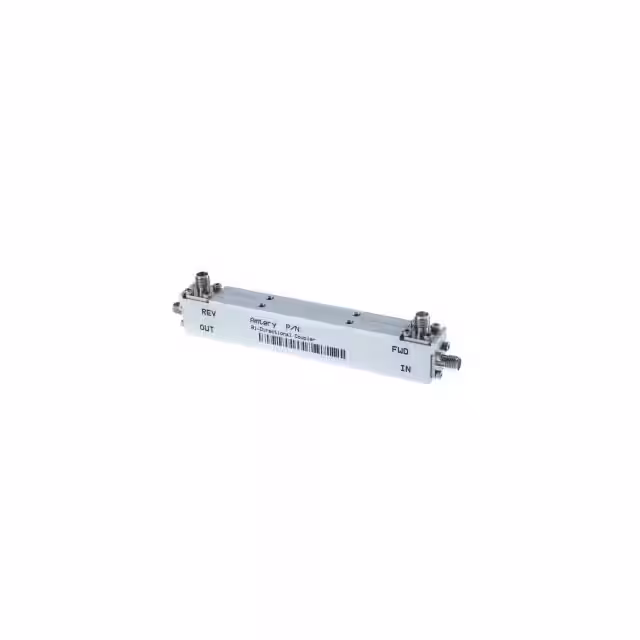

CP200408A-20 0.4 GHZ 8 GHZ, 20 DB COUPLING Amtery Corporation	2,274	-	RFQ	Datasheet	Box	-	Active	Standard	400MHz ~ 8GHz	20dB	General Purpose	0.9dB	30W	44dB	21dB
CP20018A-10 0.5 GHZ 18 GHZ, 10 DB COUPLING Amtery Corporation	2,199	-	RFQ	Datasheet	Box	-	Active	Standard	500MHz ~ 18GHz	10dB	General Purpose	2dB	20W	32dB	21dB
CP20018A-20 0.5 GHZ 18 GHZ, 20 DB COUPLING Amtery Corporation	2,088	-	RFQ	Datasheet	Box	-	Active	Standard	500MHz ~ 18GHz	20dB	General Purpose	1.7dB	20W	42dB	21dB

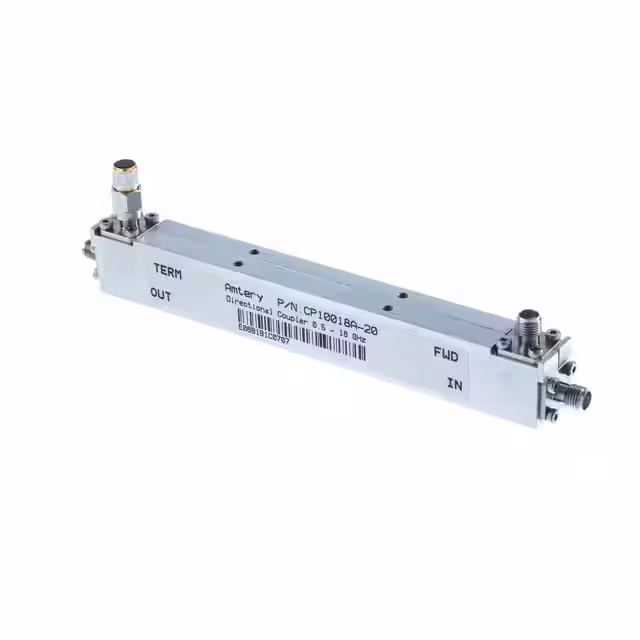

CP10018A-20 0.5 GHZ 18 GHZ, 20 DB COUPLING Amtery Corporation	3,140	-	RFQ	Datasheet	Box	-	Active	Standard	500MHz ~ 18GHz	20dB	General Purpose	1.7dB	20W	42dB	21dB

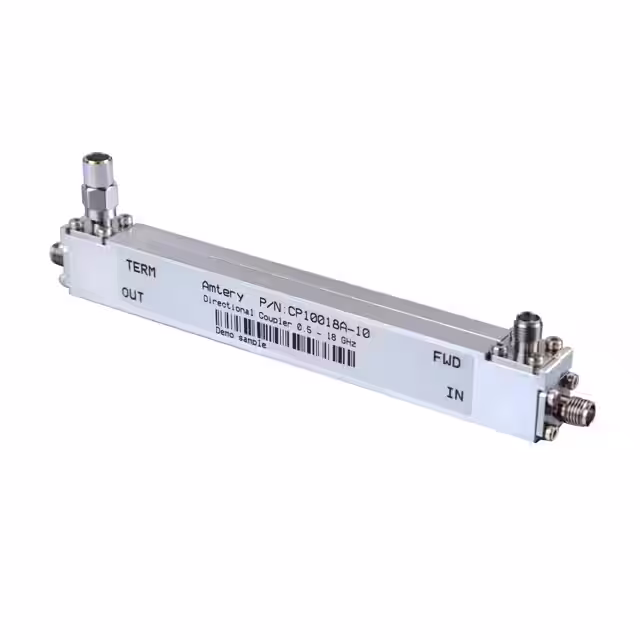

CP10018A-10 0.5 GHZ 18 GHZ, 10 DB COUPLING Amtery Corporation	3,621	-	RFQ	Datasheet	Box	-	Active	Standard	500MHz ~ 18GHz	10dB	General Purpose	2.4dB	20W	31dB	18dB
PE2CP001-20 CPLR 20DBSMA 6-18GHZ 50W Pasternack	2,290	-	RFQ	Datasheet	Bag	-	Active	Standard	6GHz ~ 18GHz	20 ± 1dB	General Purpose	1.25dB	50W	-	-

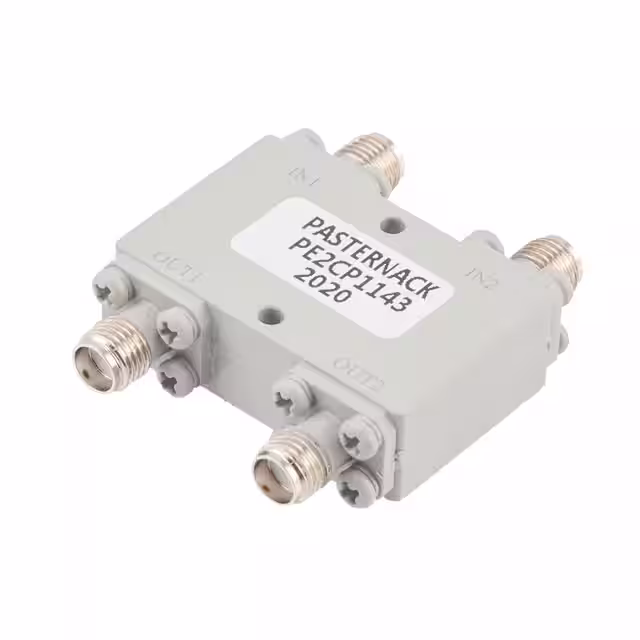

PE2CP1143 90DEG HYB CPL 4-18GHZ 50W Pasternack	2,144	-	RFQ	Datasheet	Bag	-	Active	Standard	4GHz ~ 18GHz	3dB	General Purpose	1dB	50W	16dB	-

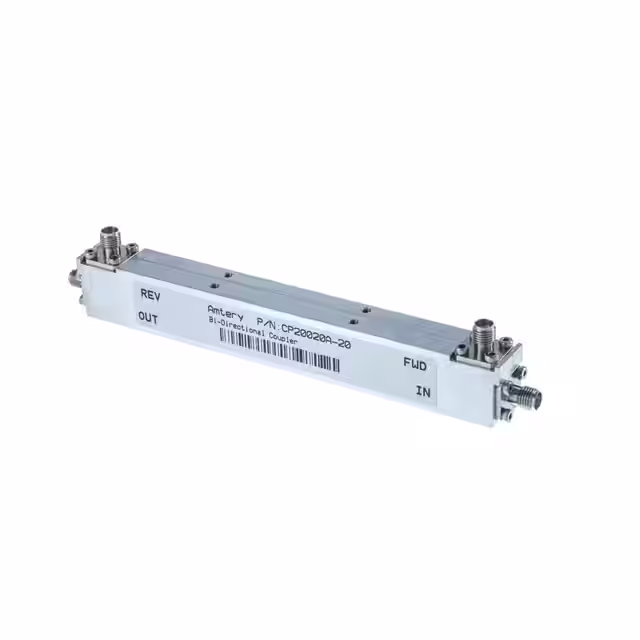

CP20020A-20 0.5 GHZ 20 GHZ , 20 DB COUPLING Amtery Corporation	2,107	-	RFQ	Datasheet	Box	-	Active	Standard	500MHz ~ 20GHz	20dB	General Purpose	1.4dB	20W	37dB	18dB
