RF Directional Coupler

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CouplerType	Frequency	CouplingFactor	Applications	InsertionLoss	Power-Max	Isolation	ReturnLoss

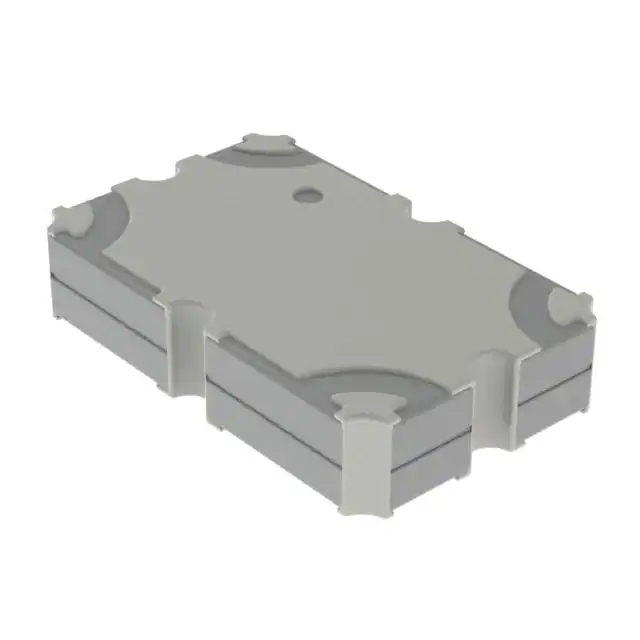

X3C19F1-03S RF DIR COUPLER 1.7GHZ-2.3GHZ SMD TTM Technologies, Inc.	3,204	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Xinger III®	Active	Standard	1.7GHz ~ 2.3GHz	-	General Purpose	0.25dB	25W	26dB	-
X3C26P1-03S RF DIR COUPLER 2.3GHZ-2.9GHZ SMD TTM Technologies, Inc.	2,162	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Xinger III®	Active	Standard	2.3GHz ~ 2.9GHz	3dB	LTE, WiMAX	0.2dB	80W	20dB	20.1dB
X3C09P2-03S RF DIR COUPLER 800MHZ-1GHZ 4SMD TTM Technologies, Inc.	3,199	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Xinger III®	Active	Standard	800MHz ~ 1GHz	3dB	AMPS, CDMA, WCDMA	0.2dB	187W	23dB	24.9dB
BDCN-7-25+ RF DIR CPLR 824MHZ-2.525GHZ 6SMD Mini-Circuits	3,509	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Standard	824MHz ~ 2.525GHz	10 ± 0.4dB	CDMA, PCS, DCS	-	15W	-	38.65dB
BDCN-15-25+ RF DIR CPLR 824MHZ-2.525GHZ 6SMD Mini-Circuits	3,947	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Standard	824MHz ~ 2.525GHz	15dB	CDMA, DCS, GPS, ISM, PCS, TDMA, UMTS	-	16W	-	28.45dB

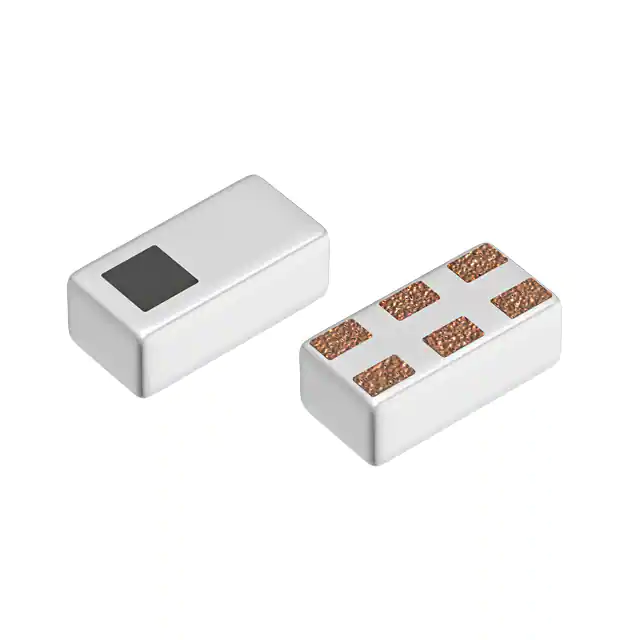

HHM22152A2 RF DIR COUPLER 450-3800MHZ 1608 TDK Corporation	3,208	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	HHM	Active	Standard	-	-	General Purpose	0.4dB	3W	-	15dB
HHM2917B1 RF DIR COUPLER 2.4-2.5GHZ 0402 TDK Corporation	2,197	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	HHM	Active	Standard	2.4GHz ~ 2.5GHz	10.8 ± 1dB	-	0.75dB	-	28dB	-
TFSC06054125-2113A1X RF DIR COUPLER 2.4-2.5GHZ 0202 TDK Corporation	3,363	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Dual Band, Dual Path	2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.85GHz	-	General Purpose	0.5dB	-	-	-
CP0603Q5425ENTR RF DIR COUPLER 2.4-2.5GHZ 0603 KYOCERA AVX	2,223	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Standard	2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.95GHz	20dB	General Purpose	0.4dB	-	-	30dB
CP0603A0836ANTR RF DIR COUPLER 824-849MHZ 0603 KYOCERA AVX	3,028	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Standard	824MHz ~ 849MHz	20dB	AMPS	0.25dB	3W	-45dB	28dB
BDCN-10-25+ RF DIR CPLR 824MHZ-2.525GHZ 6SMD Mini-Circuits	2,469	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Standard	824MHz ~ 2.525GHz	11.7 ± 0.5dB	CDMA, PCS, DCS	-	15W	-	38.44dB
X3C19E2-20S RF DIR COUPLER 1.4GHZ-2.7GHZ SMD TTM Technologies, Inc.	3,262	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Xinger III®	Active	Standard	1.4GHz ~ 2.7GHz	20.3dB	DCS, PCS, WCDMA	0.1dB	225W	-	24.9dB
ADCB-20-82+ RF DIR COUPLER 1MHZ-800MHZ 6SMD Mini-Circuits	996	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Standard	1MHz ~ 800MHz	20.4dB	General Purpose	-	1W	-	28dB
FPC07803 COUPLER Knowles Dielectric Labs	278	-	RFQ	Datasheet	Bulk	-	Active	Standard	DC ~ 40GHz	20dB ± 3dB	General Purpose	3dB	-	-	10dB

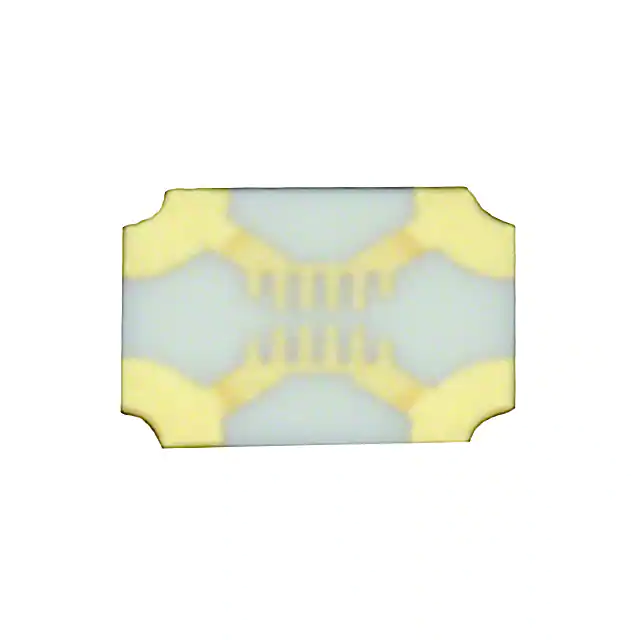

FPC07181 RF DIR COUPLER 20GHZ-40GHZ SMD Knowles Dielectric Labs	554	-	RFQ		Bulk	-	Active	Standard	20GHz ~ 40GHz	20dB	General Purpose	0.3dB	-	-	15dB

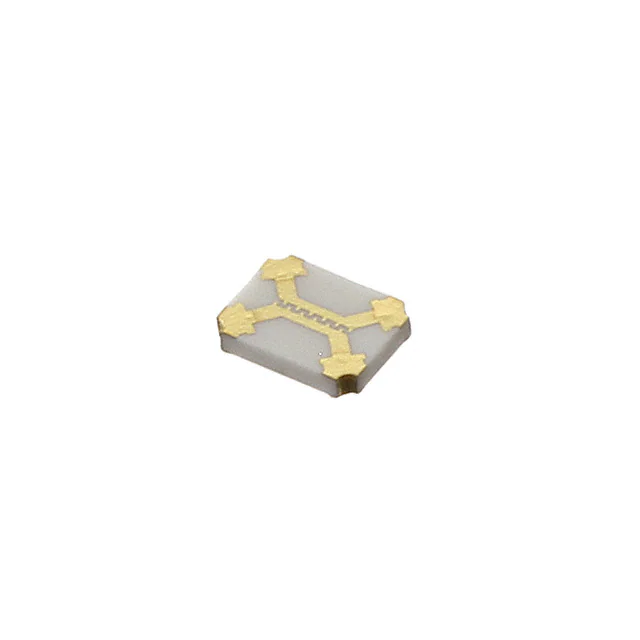

FPC07182 RF DIR COUPLER 20GHZ-40GHZ SMD Knowles Dielectric Labs	294	-	RFQ		Bulk	-	Active	Standard	20GHz ~ 40GHz	10dB	General Purpose	0.3dB	-	-	14dB
FPC06881 RF DIR COUPLER 40GHZ SMD Knowles Dielectric Labs	606	-	RFQ		Bulk	-	Active	Standard	40GHz	-20 ± 3dB	General Purpose	-1dB	-	-20dB	-15dB

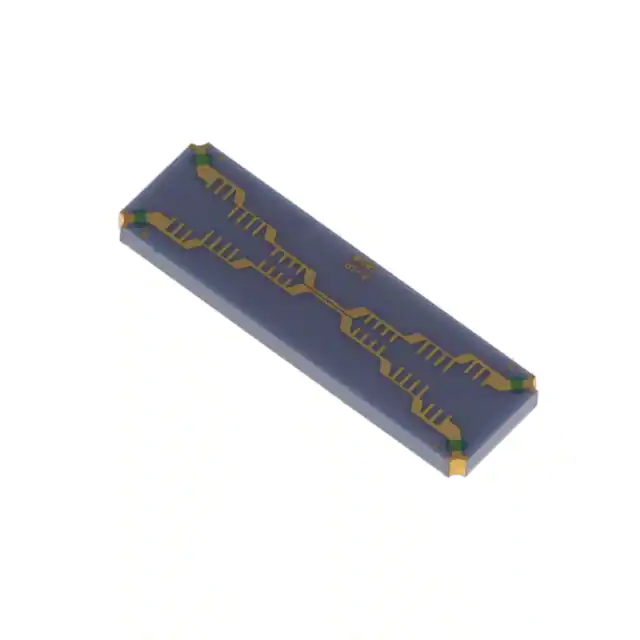

FPC07234 COUPLER Knowles Dielectric Labs	110	-	RFQ	Datasheet	Bulk	-	Active	Standard	2GHz ~ 18GHz	10 ± 1dB	General Purpose	1dB	-	-	15dB

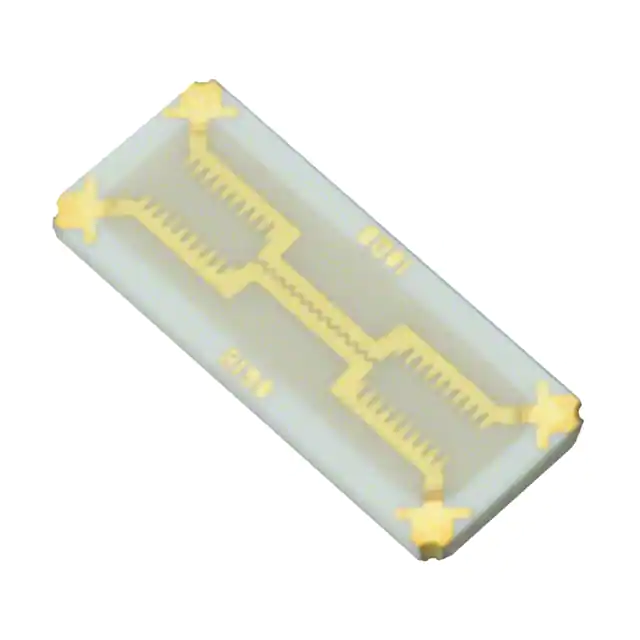

FPC06719 RF DIR COUPLER 6GHZ-18GHZ SMD Knowles Dielectric Labs	595	-	RFQ	Datasheet	Bulk	-	Active	Standard	6GHz ~ 18GHz	11.5dB	General Purpose	1dB	-	-	18dB
HHM22137A2 RF DIR COUPLER 698-2620MHZ 0603 TDK Corporation	2,904	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	HHM	Active	Standard	-	-	General Purpose	-	-	45dB	-
