Power Transformers

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Voltage-Primary	Voltage-Secondary(FullLoad)	Current-Output(Max)	PrimaryWinding(s)	SecondaryWinding(s)	CenterTap	Power-Max	MountingType	TerminationStyle	Size/Dimension	Height-Seated(Max)	Voltage-Isolation
VPM18-2780 PWR XFMR TORO 50VA CHAS MT Triad Magnetics	2,891	-	RFQ	Datasheet	Box	Toroidal Medical, VPM	Active	Toroidal	100V, 120V, 220V, 240V	Parallel 9V, Series 18V	Parallel 5.56A, Series 2.78A	Dual, Multiple Taps	Dual	No	50VA	Chassis Mount	Wire Leads	92.00mm Dia	38.00mm	4000Vrms
VPM24-2080 PWR XFMR TORO 50VA CHAS MT Triad Magnetics	2,487	-	RFQ	Datasheet	Box	Toroidal Medical, VPM	Active	Toroidal	100V, 120V, 220V, 240V	Parallel 12V, Series 24V	Parallel 4.16A, Series 2.08A	Dual, Multiple Taps	Dual	No	50VA	Chassis Mount	Wire Leads	92.00mm Dia	38.00mm	4000Vrms
VPM30-1670 PWR XFMR TORO 50VA CHAS MT Triad Magnetics	3,763	-	RFQ	Datasheet	Box	Toroidal Medical, VPM	Active	Toroidal	100V, 120V, 220V, 240V	Parallel 15V, Series 30V	Parallel 3.34A, Series 1.67A	Dual, Multiple Taps	Dual	No	50VA	Chassis Mount	Wire Leads	92.00mm Dia	38.00mm	4000Vrms

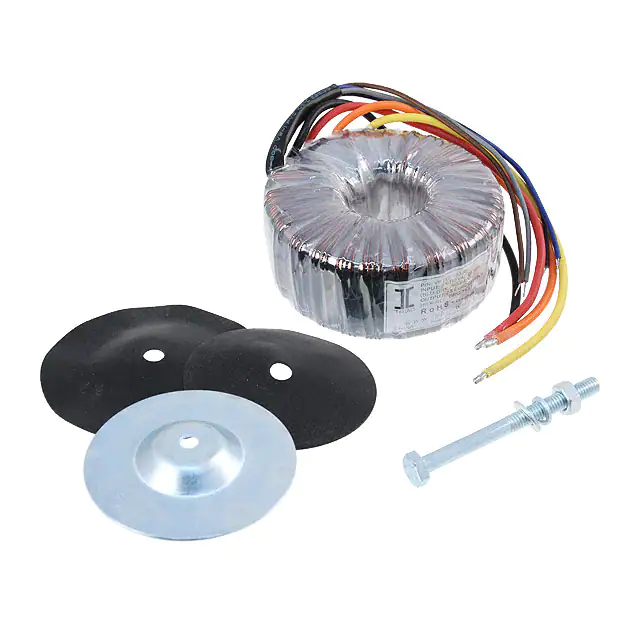

VPT12-13300 PWR XFMR TORO 160VA CHAS MT Triad Magnetics	3,480	-	RFQ	Datasheet	Box	Chassis Mount: World Series™	Active	Toroidal	115V, 230V	Parallel 6V, Series 12V	Parallel 26.6A, Series 13.3A	Dual	Dual	No	160VA	Chassis Mount	Wire Leads	103.00mm Dia x 48.00mm W	52.0mm	4000Vrms
F-109U PWR XFMR LAMINATED 192VA CHAS MT Triad Magnetics	3,338	-	RFQ	Datasheet	Box	Control Transformers	Active	Laminated Core	115V, 230V	Parallel 12V, Series 24V	Parallel 16A, Series 8A	Dual	Dual	No	192VA	Chassis Mount	Solder Lug	87.30mm L x 90.47mm W	106.35mm	1500Vrms
VPM12-8330 PWR XFMR TORO 100VA CHAS MT Triad Magnetics	3,017	-	RFQ	Datasheet	Box	Toroidal Medical, VPM	Active	Toroidal	100V, 120V, 220V, 240V	Parallel 6V, Series 12V	Parallel 16.66A, Series 8.33A	Dual, Multiple Taps	Dual	No	100VA	Chassis Mount	Wire Leads	96.00mm Dia	52.00mm	4000Vrms
VPM30-3330 PWR XFMR TORO 100VA CHAS MT Triad Magnetics	2,292	-	RFQ	Datasheet	Box	Toroidal Medical, VPM	Active	Toroidal	100V, 120V, 220V, 240V	Parallel 15V, Series 30V	Parallel 6.66A, Series 3.33A	Dual, Multiple Taps	Dual	No	100VA	Chassis Mount	Wire Leads	96.00mm Dia	52.00mm	4000Vrms
VPM36-2780 PWR XFMR TORO 100VA CHAS MT Triad Magnetics	2,407	-	RFQ	Datasheet	Box	Toroidal Medical, VPM	Active	Toroidal	100V, 120V, 220V, 240V	Parallel 18V, Series 36V	Parallel 5.56A, Series 2.78A	Dual, Multiple Taps	Dual	No	100VA	Chassis Mount	Wire Leads	96.00mm Dia	52.00mm	4000Vrms
VPM240-420 PWR XFMR TORO 100VA CHAS MT Triad Magnetics	3,161	-	RFQ	Datasheet	Box	Toroidal Medical, VPM	Active	Toroidal	100V, 120V, 220V, 240V	Parallel 120V, Series 240V	Parallel 840mA, Series 420mA	Dual, Multiple Taps	Dual	No	100VA	Chassis Mount	Wire Leads	96.00mm Dia	52.00mm	4000Vrms
F-244U PWR XFMR LAMINATED 288VA CHAS MT Triad Magnetics	2,787	-	RFQ	Datasheet	Box	Multiple Secondary	Active	Laminated Core	115V	Parallel 18V, Series 36V	Parallel 16A, Series 8A	Single	Dual	Yes	288VA	Chassis Mount	Solder, Quick Connect	114.30mm L x 101.60mm W	95.25mm	1500Vrms
F-226U PWR XFMR LAMINATED 288VA CHAS MT Triad Magnetics	3,684	-	RFQ	Datasheet	Box	Single Secondary	Active	Laminated Core	115V	24V	12A	Single	Single	Yes	288VA	Chassis Mount	Wire Leads	95.25mm L x 104.77mm W	115.87mm	1500Vrms
F-268U PWR XFMR LAMINATED 280VA CHAS MT Triad Magnetics	2,058	-	RFQ	Datasheet	Box	Single Secondary	Active	Laminated Core	115V	35V	8A	Single	Single	Yes	280VA	Chassis Mount	Wire Leads	107.95mm L x 95.25mm W	114.30mm	1500Vrms
VPT230-1090-B PWR XFMR TORO 250VA CHAS MT Triad Magnetics	3,238	-	RFQ	Datasheet	Bulk	Chassis Mount: World Series™	Active	Toroidal	115V, 230V	Parallel 115V, Series 230V	Parallel 2.18A, Series 1.09A	Dual	Dual	No	250VA	Chassis Mount	Wire Leads	112.00mm Dia x 54.00mm W	58.0mm	4000Vrms
VPM12-13300 PWR XFMR TORO 160VA CHAS MT Triad Magnetics	2,861	-	RFQ	Datasheet	Box	Toroidal Medical, VPM	Active	Toroidal	100V, 120V, 220V, 240V	Parallel 6V, Series 12V	Parallel 26.6A, Series 13.3A	Dual, Multiple Taps	Dual	No	160VA	Chassis Mount	Wire Leads	113.00mm Dia	52.00mm	4000Vrms
VPM18-8800 PWR XFMR TORO 160VA CHAS MT Triad Magnetics	2,749	-	RFQ	Datasheet	Box	Toroidal Medical, VPM	Active	Toroidal	100V, 120V, 220V, 240V	Parallel 9V, Series 18V	Parallel 17.6A, Series 8.8A	Dual, Multiple Taps	Dual	No	160VA	Chassis Mount	Wire Leads	113.00mm Dia	52.00mm	4000Vrms
VPM36-4440 PWR XFMR TORO 160VA CHAS MT Triad Magnetics	3,160	-	RFQ	Datasheet	Box	Toroidal Medical, VPM	Active	Toroidal	100V, 120V, 220V, 240V	Parallel 18V, Series 36V	Parallel 8.88A, Series 4.44A	Dual, Multiple Taps	Dual	No	160VA	Chassis Mount	Wire Leads	113.00mm Dia	52.00mm	4000Vrms
VPM48-3300 PWR XFMR TORO 160VA CHAS MT Triad Magnetics	3,552	-	RFQ	Datasheet	Box	Toroidal Medical, VPM	Active	Toroidal	100V, 120V, 220V, 240V	Parallel 24V, Series 48V	Parallel 6.66A, Series 3.33A	Dual, Multiple Taps	Dual	No	160VA	Chassis Mount	Wire Leads	113.00mm Dia	52.00mm	4000Vrms
VPM24-10420 PWR XFMR TORO 250VA CHAS MT Triad Magnetics	2,530	-	RFQ	Datasheet	Box	Toroidal Medical, VPM	Active	Toroidal	100V, 120V, 220V, 240V	Parallel 12V, Series 24V	Parallel 20.84A, Series 10.42A	Dual, Multiple Taps	Dual	No	250VA	Chassis Mount	Wire Leads	123.00mm Dia	60.00mm	4000Vrms
VPM36-6940 PWR XFMR TORO 250VA CHAS MT Triad Magnetics	3,028	-	RFQ	Datasheet	Box	Toroidal Medical, VPM	Active	Toroidal	100V, 120V, 220V, 240V	Parallel 18V, Series 36V	Parallel 13.88A, Series 6.94A	Dual, Multiple Taps	Dual	No	250VA	Chassis Mount	Wire Leads	123.00mm Dia	60.00mm	4000Vrms
VPM48-5200 PWR XFMR TORO 250VA CHAS MT Triad Magnetics	3,549	-	RFQ	Datasheet	Box	Toroidal Medical, VPM	Active	Toroidal	100V, 120V, 220V, 240V	Parallel 24V, Series 48V	Parallel 10.4A, Series 5.2A	Dual, Multiple Taps	Dual	No	250VA	Chassis Mount	Wire Leads	123.00mm Dia	60.00mm	4000Vrms
