Pulse Transformers

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)
PA2725NLT PULSE XFMR 139.5UH Pulse Electronics Power	3,317	-	RFQ	Datasheet	Tape & Reel (TR)	-	Active	-	139.5µH	-	-	Surface Mount	0.551 L x 0.516 W (14.00mm x 13.11mm)	0.485 (12.32mm)
PA3242NL PULSE XFMR 220UH Pulse Electronics Power	3,866	-	RFQ	Datasheet	Tray	-	Active	-	220µH	-	-	Surface Mount	0.551 L x 0.516 W (14.00mm x 13.11mm)	0.485 (12.32mm)
PA3242NLT PULSE XFMR 220UH Pulse Electronics Power	3,381	-	RFQ	Datasheet	Tape & Reel (TR)	-	Active	-	220µH	-	-	Surface Mount	0.551 L x 0.516 W (14.00mm x 13.11mm)	0.485 (12.32mm)
PA3642NLT PULSE XFMR 37.9UH Pulse Electronics Power	3,305	-	RFQ	Datasheet	Tape & Reel (TR)	-	Active	-	37.9µH	-	-	Surface Mount	0.551 L x 0.516 W (14.00mm x 13.11mm)	0.485 (12.32mm)
PA2437NL PULSE XFMR 80UH Pulse Electronics Power	2,381	-	RFQ	Datasheet	Tray	-	Active	-	80µH	-	-	Surface Mount	0.551 L x 0.516 W (14.00mm x 13.11mm)	0.485 (12.32mm)
PA1218NLT PULSE XFMR 480UH Pulse Electronics Power	2,163	-	RFQ	Datasheet	Tape & Reel (TR)	-	Active	-	480µH	-	-	Surface Mount	0.551 L x 0.516 W (14.00mm x 13.11mm)	0.485 (12.32mm)

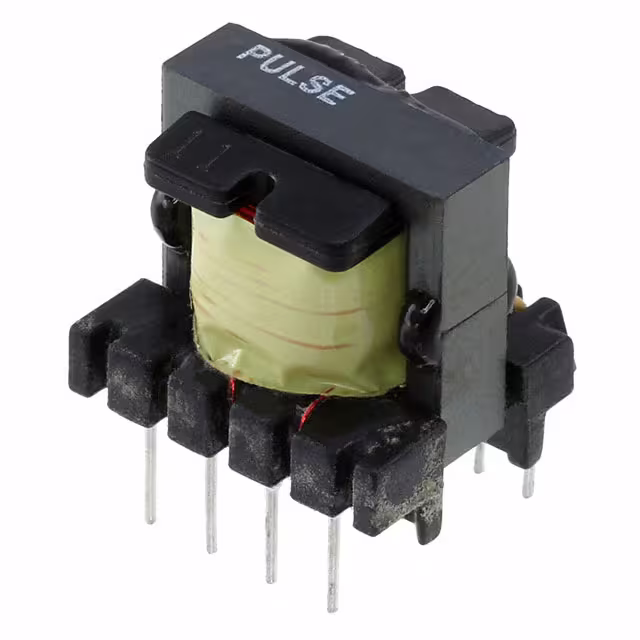

P5008NL PULSE XFMR 1:0.07:0.07 Pulse Electronics Power	2,422	-	RFQ	Datasheet	Tray	-	Active	-	-	-	1:0.07:0.07	Through Hole	0.717 L x 0.630 W (18.20mm x 16.00mm)	0.697 (17.70mm)
PA2367NL PULSE XFMR 85UH Pulse Electronics Power	2,458	-	RFQ	Datasheet	Tray	-	Active	-	85µH	-	-	Surface Mount	0.551 L x 0.516 W (14.00mm x 13.11mm)	0.485 (12.32mm)
PA2086NL PULSE XFMR 164UH Pulse Electronics Power	2,419	-	RFQ	Datasheet	Tray	-	Active	-	164µH	-	-	Surface Mount	0.551 L x 0.516 W (14.00mm x 13.11mm)	0.485 (12.32mm)

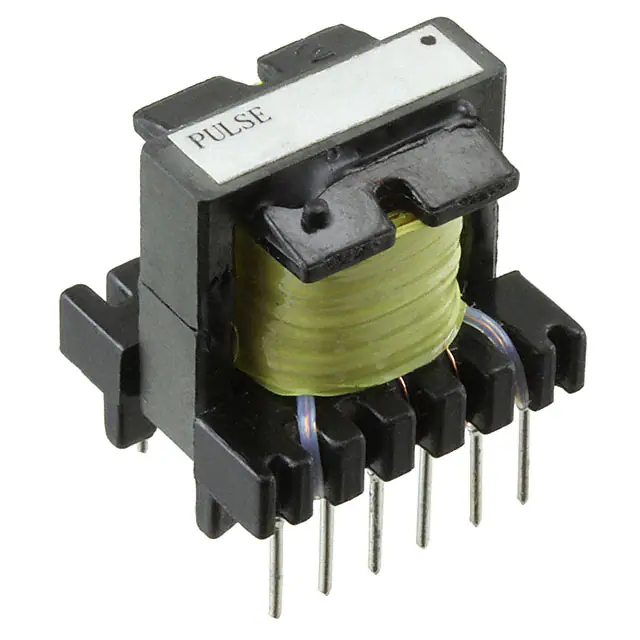

PA2517NL PULSE XFMR 1.2MH Pulse Electronics Power	3,839	-	RFQ	Datasheet	Tray	-	Active	-	1.2mH	-	-	Through Hole	0.717 L x 0.630 W (18.20mm x 16.00mm)	0.709 (18.00mm)
PA3371NL PULSE XFMR 31UH Pulse Electronics Power	3,530	-	RFQ	Datasheet	Tray	-	Active	-	31µH	-	-	Surface Mount	0.551 L x 0.516 W (14.00mm x 13.11mm)	0.485 (12.32mm)
PA1528ANL PULSE XFMR 28.9UH Pulse Electronics Power	3,909	-	RFQ	Datasheet	Tray	-	Active	-	28.9µH	-	-	Surface Mount	0.551 L x 0.516 W (14.00mm x 13.11mm)	0.485 (12.32mm)
PA2437NLT PULSE XFMR 80UH Pulse Electronics Power	3,731	-	RFQ	Datasheet	Tape & Reel (TR)	-	Active	-	80µH	-	-	Surface Mount	0.551 L x 0.516 W (14.00mm x 13.11mm)	0.485 (12.32mm)
PA2398NLT PULSE XFMR 100UH Pulse Electronics Power	3,721	-	RFQ	Datasheet	Tape & Reel (TR)	-	Active	-	100µH	-	-	Surface Mount	0.860 L x 1.150 W (21.84mm x 29.21mm)	0.450 (11.43mm)
PA2009NL PULSE XFMR 2.5:1:1 1.49MH Pulse Electronics Power	1,123	-	RFQ	Datasheet	Tube	-	Active	-	1.49mH	47VµS	2.5:1:1	Surface Mount	0.355 L x 0.340 W (9.02mm x 8.64mm)	0.300 (7.62mm)
PA3371NLT PULSE XFMR 31UH Pulse Electronics Power	2,132	-	RFQ	Datasheet	Tape & Reel (TR)	-	Active	-	31µH	-	-	Surface Mount	0.551 L x 0.516 W (14.00mm x 13.11mm)	0.485 (12.32mm)
PA1577NLT PULSE XFMR 230.4UH Pulse Electronics Power	2,952	-	RFQ	Datasheet	Tape & Reel (TR)	-	Active	-	230.4µH	-	-	Surface Mount	0.551 L x 0.516 W (14.00mm x 13.11mm)	0.485 (12.32mm)
PA0264NL PULSE XFMR 1:1:1 1.14MH Pulse Electronics Power	1,515	-	RFQ	Datasheet	Tube	-	Active	-	1.14mH	17.2VµS	1:1:1	Surface Mount	0.340 L x 0.265 W (8.64mm x 6.73mm)	0.140 (3.56mm)
PA0769NL PULSE XFMR 89.2UH Pulse Electronics Power	3,455	-	RFQ	Datasheet	Tube	-	Active	-	89.2µH	-	-	Surface Mount	0.860 L x 1.150 W (21.84mm x 29.21mm)	0.450 (11.43mm)
PA2291NL PULSE XFMR 57.6UH Pulse Electronics Power	3,299	-	RFQ	Datasheet	Tray	-	Active	-	57.6µH	-	-	Surface Mount	0.860 L x 1.150 W (21.84mm x 29.21mm)	0.450 (11.43mm)
