Pulse Transformers

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)

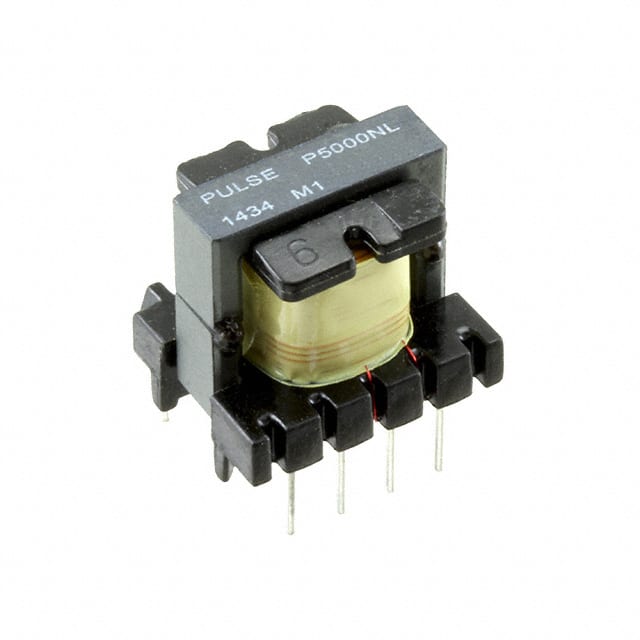

P5000NL PULSE XFMR 1:0.07:0.07 Pulse Electronics Power	2,516	-	RFQ	Datasheet	Tray	-	Active	-	-	-	1:0.07:0.07	Through Hole	0.717 L x 0.630 W (18.20mm x 16.00mm)	0.697 (17.70mm)
PA2291NLT PULSE XFMR 57.6UH Pulse Electronics Power	2,524	-	RFQ	Datasheet	Tape & Reel (TR)	-	Active	-	57.6µH	-	-	Surface Mount	0.860 L x 1.150 W (21.84mm x 29.21mm)	0.450 (11.43mm)
PA2431NL PULSE XFMR 429.3UH Pulse Electronics Power	3,073	-	RFQ	Datasheet	Tray	-	Active	-	429.3µH	-	-	Surface Mount	0.551 L x 0.516 W (14.00mm x 13.11mm)	0.485 (12.32mm)
PA1477NL PULSE XFMR 38.3UH Pulse Electronics Power	3,416	-	RFQ	Datasheet	Tray	-	Active	-	38.3µH	-	-	Surface Mount	0.860 L x 1.150 W (21.84mm x 29.21mm)	0.450 (11.43mm)
PA1835NL PULSE XFMR 4.5UH Pulse Electronics Power	2,782	-	RFQ	Datasheet	Tray	-	Active	-	4.5µH	-	-	Surface Mount	0.860 L x 1.150 W (21.84mm x 29.21mm)	0.450 (11.43mm)
PA2398NL PULSE XFMR 100UH Pulse Electronics Power	3,528	-	RFQ	Datasheet	Tray	-	Active	-	100µH	-	-	Surface Mount	0.860 L x 1.150 W (21.84mm x 29.21mm)	0.450 (11.43mm)
PA1835NLT PULSE XFMR 4.5UH Pulse Electronics Power	3,295	-	RFQ	Datasheet	Tape & Reel (TR)	-	Active	-	4.5µH	-	-	Surface Mount	0.860 L x 1.150 W (21.84mm x 29.21mm)	0.450 (11.43mm)

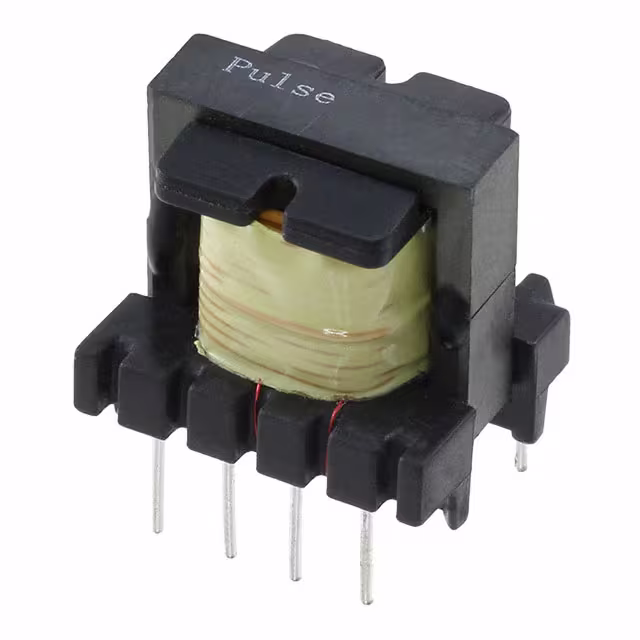

P5004NL PULSE XFMR 1:0.07:0.07 Pulse Electronics Power	3,698	-	RFQ	Datasheet	Tray	-	Active	-	-	-	1:0.07:0.07	Through Hole	0.717 L x 0.630 W (18.20mm x 16.00mm)	0.697 (17.70mm)
PA2431NLT PULSE XFMR 429.3UH Pulse Electronics Power	2,034	-	RFQ	Datasheet	Tape & Reel (TR)	-	Active	-	429.3µH	-	-	Surface Mount	0.551 L x 0.516 W (14.00mm x 13.11mm)	0.485 (12.32mm)
PA2114NLT PULSE XFMR 164UH Pulse Electronics Power	3,228	-	RFQ	Datasheet	Tape & Reel (TR)	-	Active	-	164µH	-	-	Surface Mount	0.551 L x 0.516 W (14.00mm x 13.11mm)	0.485 (12.32mm)

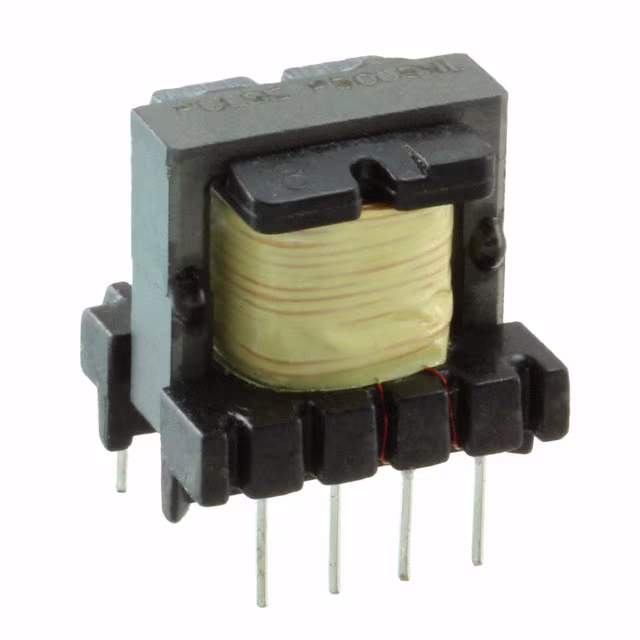

P5005NL PULSE XFMR 1:0.1:0.1 Pulse Electronics Power	3,785	-	RFQ	Datasheet	Tray	-	Active	-	-	-	1:0.1:0.1	Through Hole	0.717 L x 0.630 W (18.20mm x 16.00mm)	0.697 (17.70mm)
PA0769NLT PULSE XFMR 89.2UH Pulse Electronics Power	3,064	-	RFQ	Datasheet	Tape & Reel (TR)	-	Active	-	89.2µH	-	-	Surface Mount	0.860 L x 1.150 W (21.84mm x 29.21mm)	0.450 (11.43mm)
PA1477NLT PULSE XFMR 38.3UH Pulse Electronics Power	3,229	-	RFQ	Datasheet	Tape & Reel (TR)	-	Active	-	38.3µH	-	-	Surface Mount	0.860 L x 1.150 W (21.84mm x 29.21mm)	0.450 (11.43mm)
PA1558NLT PULSE XFMR 11.5UH Pulse Electronics Power	2,955	-	RFQ	Datasheet	Tape & Reel (TR)	-	Active	-	11.5µH	-	-	Surface Mount	0.860 L x 1.150 W (21.84mm x 29.21mm)	0.450 (11.43mm)
PA2114NL PULSE XFMR 164UH Pulse Electronics Power	3,088	-	RFQ	Datasheet	Tray	-	Active	-	164µH	-	-	Surface Mount	0.551 L x 0.516 W (14.00mm x 13.11mm)	0.485 (12.32mm)
PA1577NL PULSE XFMR 230.4UH Pulse Electronics Power	3,437	-	RFQ	Datasheet	Tray	-	Active	-	230.4µH	-	-	Surface Mount	0.551 L x 0.516 W (14.00mm x 13.11mm)	0.485 (12.32mm)
PA2053NLT PULSE XFMR 292UH Pulse Electronics Power	2,495	-	RFQ	Datasheet	Tape & Reel (TR)	-	Active	-	292µH	-	-	Surface Mount	0.860 L x 1.150 W (21.84mm x 29.21mm)	0.450 (11.43mm)
PA1692NL PULSE XFMR 73UH Pulse Electronics Power	3,164	-	RFQ	Datasheet	Tray	-	Active	-	73µH	-	-	Surface Mount	0.860 L x 1.150 W (21.84mm x 29.21mm)	0.450 (11.43mm)
PA1558NL PULSE XFMR 11.5UH Pulse Electronics Power	3,900	-	RFQ	Datasheet	Tray	-	Active	-	11.5µH	-	-	Surface Mount	0.860 L x 1.150 W (21.84mm x 29.21mm)	0.450 (11.43mm)
PA2053NL PULSE XFMR 292UH Pulse Electronics Power	3,785	-	RFQ	Datasheet	Tray	-	Active	-	292µH	-	-	Surface Mount	0.860 L x 1.150 W (21.84mm x 29.21mm)	0.450 (11.43mm)
